2 Piece Premium Hytork Actuator Ball Valves

The BV-L2000XL represents a stainless steel full-bore ball valve that provides a high-quality SIL-rated valve within an affordable price range. Every unit includes an ISO 5211 direct mounting pad for swift actuation assembly, with a guaranteed 48-hour shipping turnaround, and holds ATEX approval. This silicone-free actuated ball valve is suitable for pressures of up to 1000 PSI and offers the flexibility of straight pneumatic operation or electrically piloted options, accommodating fail-in-position or fail-closed requirements. Furthermore, for applications requiring higher temperatures, it's possible to adapt the PTFE TFM 1600 seats to TFM 4215.
Shop Help Me

Key Features

Key features and benefits of BV-L2000XL Actuated Ball Valves.
1

Key Features

The BV-L2000 stainless steel ball valves find their suitability in applications involving oil-based paints and coatings, such as automotive refinishing. They are entirely devoid of silicone content, assuring that your product remains uncontaminated and free from any residue that could adversely affect the finish over time.
2

Key Features

These valves are exceptionally well-suited for scenarios necessitating frequent On/Off cycles, particularly in material handling equipment (MHE), thanks to their remarkable cycle life expectancy. Hytork actuators boast a SIL rating that spans several million cycles, backed by a well-established track record.
3

Key Features

When you opt for the Hytork Pneumatic Actuator, you're choosing a dependable unit that has undergone rigorous testing across numerous installations worldwide. Our actuators provide the added benefit of adjustable stroke length without the need for any extra components—simply make the necessary adjustments to the travel stops as required!

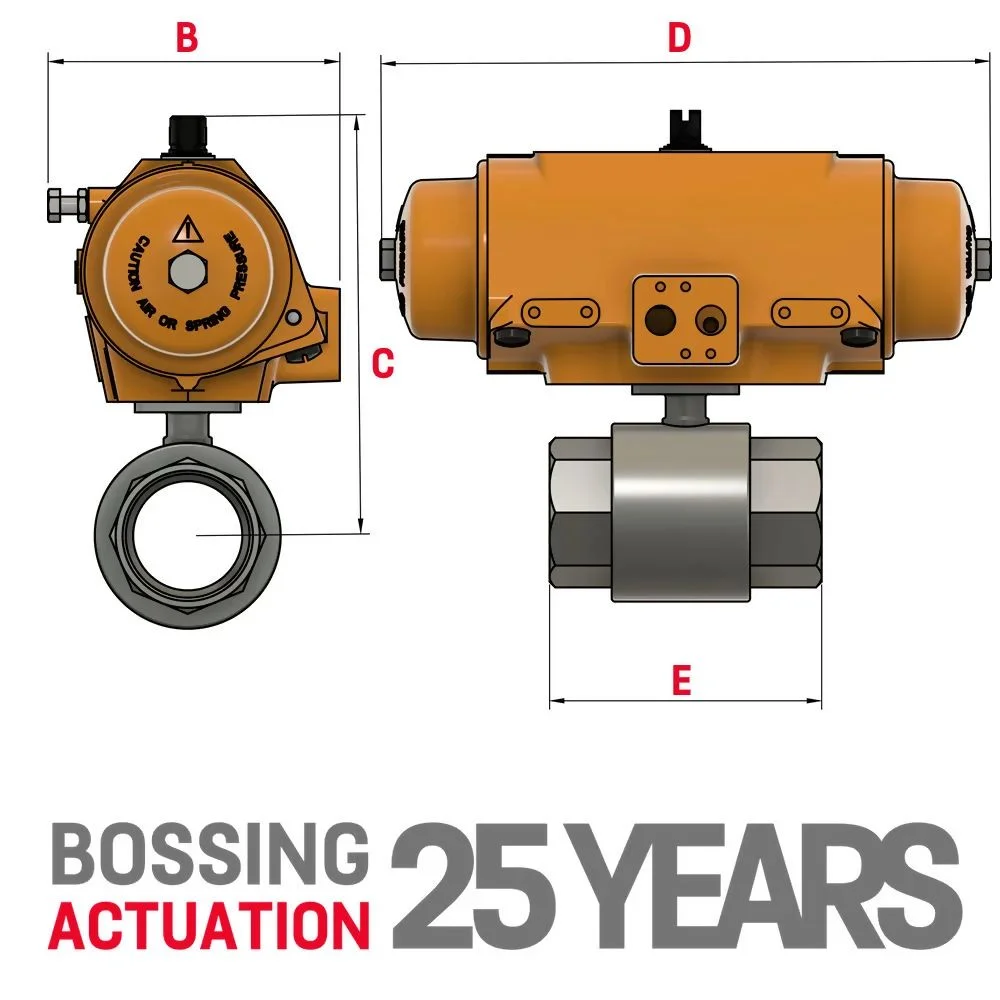

AV-L2000XL Ball Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 147.00 165.00 67.00 97.00 147.00 165.00 67.00
3/8" 97.00 147.00 165.00 67.00 97.00 147.00 165.00 67.00
1/2" 97.00 147.00 165.00 67.00 97.00 147.00 165.00 67.00
3/4" 97.00 153.50 165.00 70.40 97.00 153.50 165.00 70.40
1" 116.50 180.40 221.80 85.00 97.00 162.50 165.00 85.00
1 1/4" 116.50 184.90 221.80 94.00 97.00 167.00 165.00 94.00
1 1/2" 116.50 193.90 221.80 105.00 116.50 193.90 221.80 105.00
2" 133.50 216.90 292.00 125.00 116.50 200.90 221.80 125.00
2 1/2" 143.10 244.05 331.60 155.00 133.50 238.40 292.00 155.00
3" 158.50 268.90 349.80 173.00 143.10 253.05 331.60 173.00

AV-L2000XL Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE/TFM1600
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: BSPP ISO 228/1
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

TR 010 EAC Customs Union
  • PDF
CERTIFICATES & APPROVALS

REACH, ROHS2, ROHS3
  • PDF
CERTIFICATES & APPROVALS

DOC
  • PDF
CERTIFICATES & APPROVALS

TR 012 EAC Customs Union

Hytork Actuator Videos

Hytork Overview

TopWorx Limit Switch Box

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
