Hygienic Tri Clamp-Weld OD Air Torque Actuator Valves

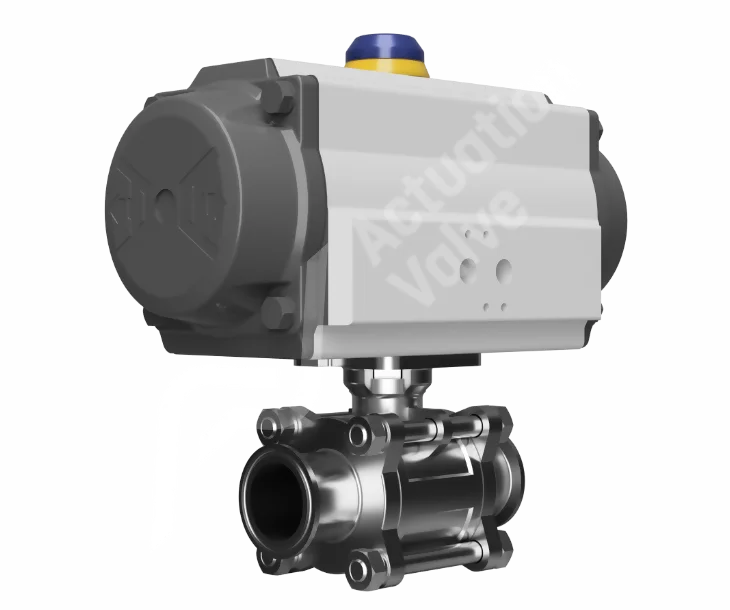

The BV-L91B0AT and BV-L9CB0AT are part of BallValve's sanitary and hygienic actuated valve packages. These valves, with a three-piece body design, feature a swing-out centre section, making them ideal for scheduled maintenance and seat replacements. The full-bore body design, along with cavity-filled seats, ensures a clear flow path that prevents the accumulation of debris or contaminants. These valves can withstand temperatures of up to 200°C, making them suitable for steam cleaning, CIP, and SIS applications. They also come with various approvals, including FDA and WRAS-approved seats, and are part of a bovine-free supply.
Shop Help Me

Key Features

Key features and benefits of BV-L91B0AT & BV-L9CB0AT Actuated Ball Valves.
1

Key Features

Air Torque actuators offer a range of protection levels beyond the standard anodised aluminium housing. These options comprise a full stainless steel body version, alodur coating for body and end caps, ENP plated carbon steel drive shafts, and PTFE body coating.
2

Key Features

Air Torque pneumatic actuators have been meticulously optimised for performance and durability at every stage of their development, from design and production to rigorous testing. With over 30 years of experience in designing durable and reliable components, you can have full confidence in us for the success of your project.
3

Key Features

Air Torque Pneumatic Actuators deliver equivalent functionality to hydraulic actuators at a significantly lower cost, all while offering enhanced reliability and reduced maintenance expenses. This lightweight and compact device has been purposefully designed with valves in consideration.

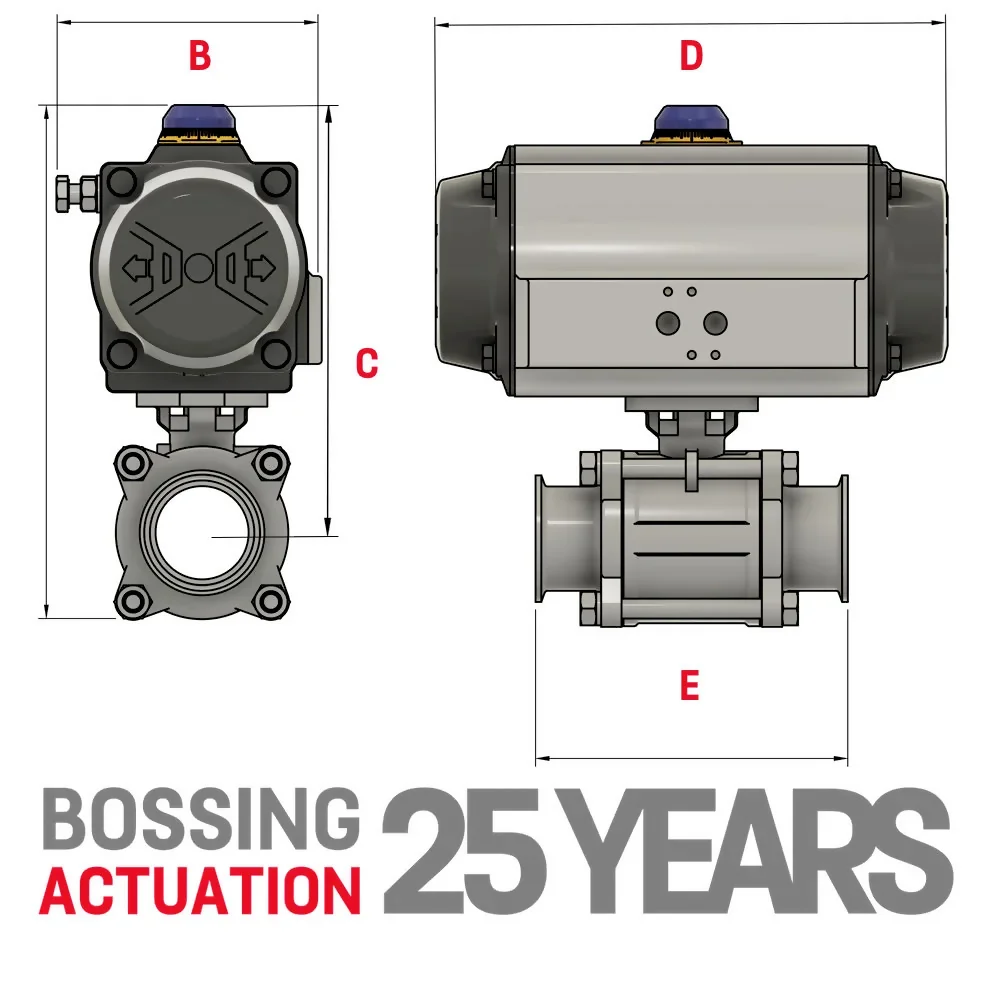

Tri Clamp Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 72.00 131.00 137.00 90.00 72.00 131.00 137.00 90.00
3/4" 84.50 154.00 135.50 90.00 72.00 138.00 137.00 90.00
1" 93.00 180.00 203.50 100.00 84.50 163.00 153.50 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 106.00 206.00 241.00 125.00 84.50 176.00 153.50 125.00
2" 118.50 225.00 259.00 150.00 93.00 200.00 203.50 150.00
2 1/2" 136.00 275.00 304.00 190.00 106.00 235.00 241.00 190.00
3" 136.00 284.00 304.00 220.00 106.00 244.00 241.00 220.00
4" 136.00 347.00 394.50 270.00 136.00 315.00 304.00 270.00

Tri Clamp 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Weld OD 3D Stuff

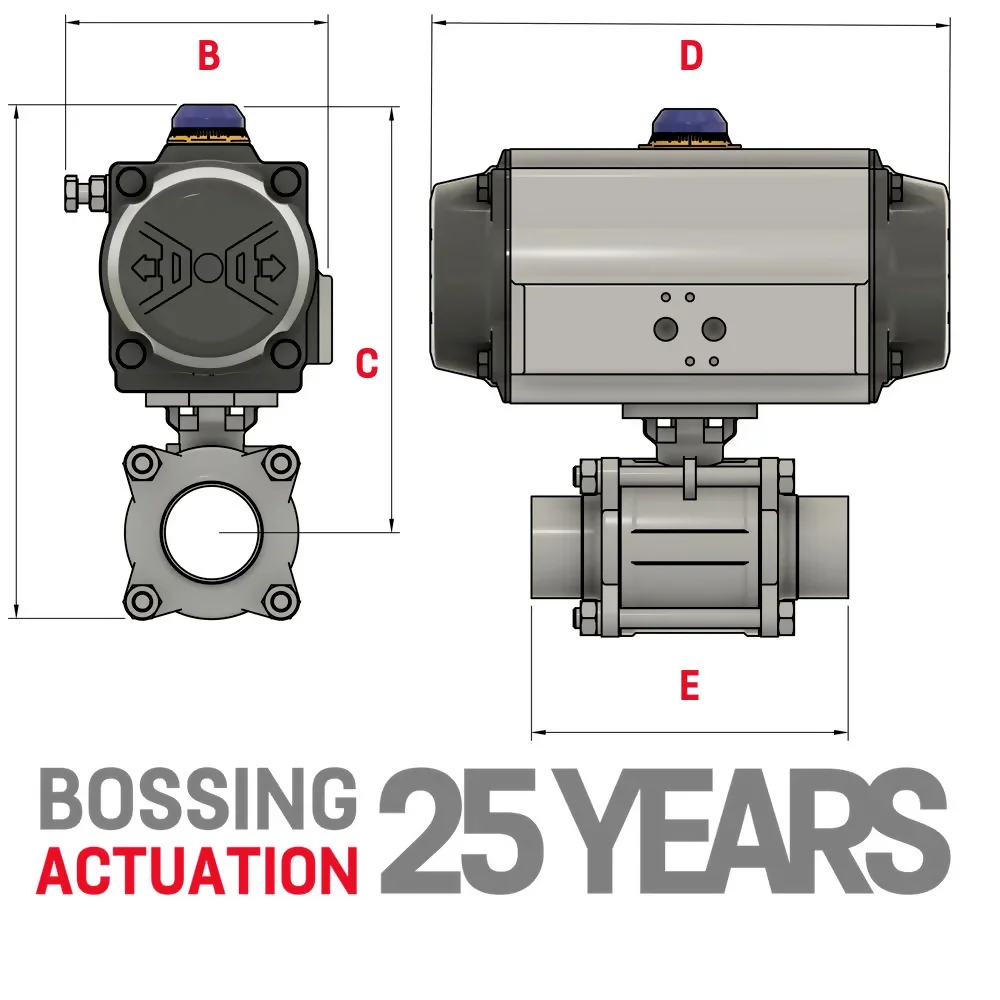

Weld OD Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 72.00 131.00 137.00 90.00 72.00 131.00 137.00 90.00
3/4' 84.50 154.00 153.50 90.00 72.00 138.00 137.00 90.00
1" 93.00 180.00 203.50 100.00 84.50 163.00 153.50 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 106.00 206.00 241.00 125.00 84.50 176.00 153.50 125.00
2" 118.50 225.00 259.00 150.00 93.00 200.00 203.50 150.00
2 1/2" 136.00 275.00 304.00 190.00 106.00 235.00 241.00 190.00
3" 136.00 284.00 304.00 220.00 106.00 244.00 241.00 220.00
4" 166.00 347.00 394.50 270.00 136.00 .31500 304.00 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT451
  • Document
DRAWINGS & SCHEMATICS

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • PDF
DRAWINGS & SCHEMATICS

AT601
  • PDF
DRAWINGS & SCHEMATICS

AT651
  • PDF
DRAWINGS & SCHEMATICS

AT701

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
