Heavy Duty Stainless Steel Elomatic Ball Valves

The stainless steel actuated ball valves BV-L8000EL, BV-L8100EL, and AB-L8200EL provide a sturdier alternative to the conventional 3-piece valves. They retain a drop-out centre section that can be fully maintained without the necessity of removing the valve entirely. This robust actuated ball valve is designed to handle increased pressure and temperature, making it a common choice for steam applications. The stainless steel body not only enhances protection against corrosion but also safeguards against internal and external factors in the processing environment.
Shop Help Me

Key Features

Key features and benefits of BV-L8000EL, BV-L8100EL & BV-L8200EL Actuated Ball Valves.
1

Key Features

The EL-O-Matic Pneumatic Actuator boasts a robust steel piston and employs top-notch materials that withstand exposure to moisture, dust, or dirt. This durability makes it well-suited for outdoor use and demanding industrial settings where water spray may be present.
2

Key Features

Designed for heavy-duty industrial applications requiring higher pressure ranges or temperatures, the BV-L8000FS Heavy Duty Stainless Steel Ball Valve features PTFE TFM 4215 ball seats, grafoil stem sealing, and a stainless steel body.
3

Key Features

With dual flange drillings and multiple drive inserts, the EL-O-Matic pneumatic actuator offers enhanced versatility for mounting on ball and butterfly valves. This eliminates the need for additional mounting kits, thereby reducing costs, weight, and lead time.

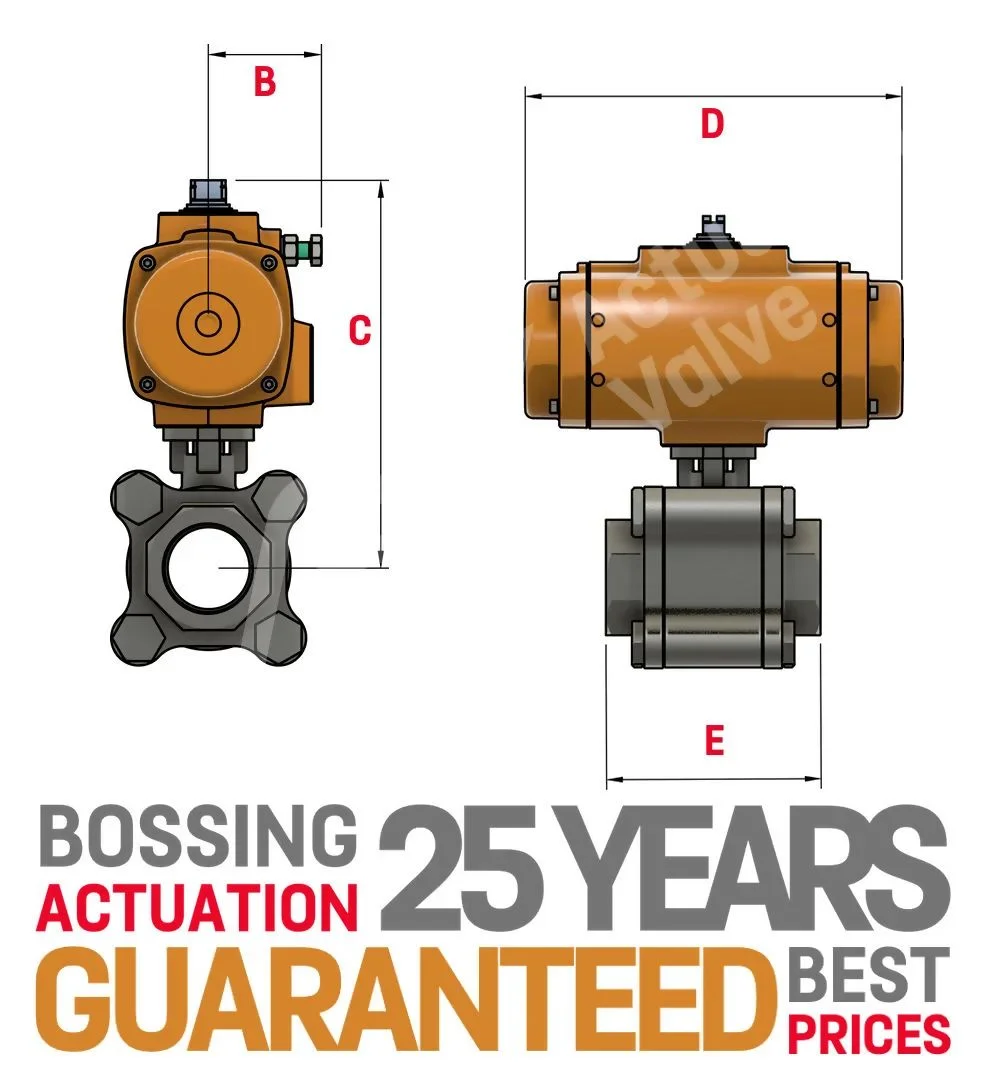

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/8" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
1/2" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/4" 48.00 162.00 166.00 80.00 48.00 162.00 166.00 80.00
1" 58.00 190.00 192.00 90.00 48.00 169.00 166.00 90.00
1 1/4" 58.00 195.00 192.00 110.00 58.00 195.00 192.00 110.00
1 1/2" 69.00 219.00 217.00 120.00 58.00 207.00 192.00 120.00
2" 69.00 237.00 247.00 140.00 69.00 230.00 217.00 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Stuff

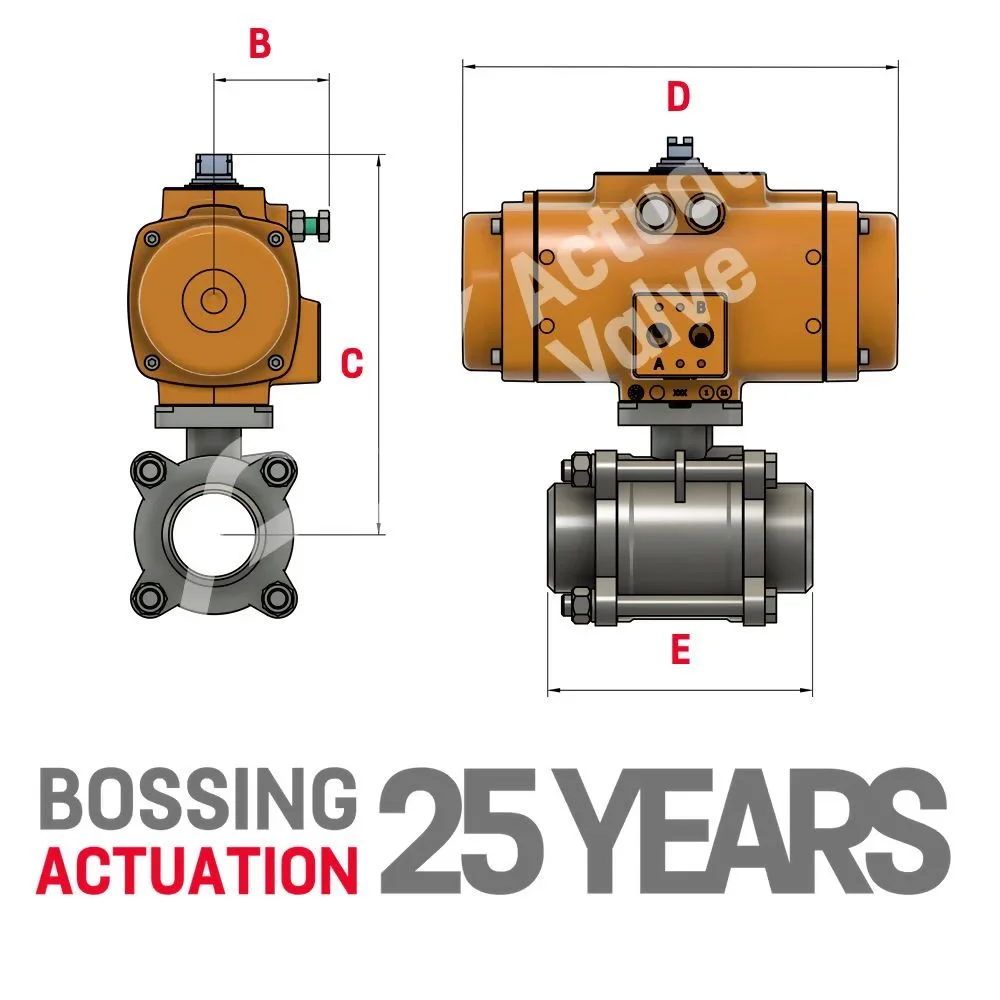

Butt Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 154.00 166.00 70.00 33.00 123.00 103.00 70.00
3/8" 48.00 154.00 166.00 70.00 33.00 123.00 103.00 70.00
1/2" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/4" 48.00 162.00 166.00 90.00 48.00 162.00 166.00 90.00
1" 58.00 190.00 192.00 100.00 48.00 169.00 166.00 100.00
1 1/4" 58.00 195.00 192.00 110.00 58.00 195.00 192.00 110.00
1 1/2" 69.00 219.00 217.00 125.00 58.00 207.00 192.00 125.00
2" 69.00 237.00 247.00 150.00 69.00 230.00 217.00 150.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

SMALL Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
  • Size 0100
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
Brochures

F-Series Elomatic
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Safety Manual
  • PDF
CERTIFICATES & APPROVALS

Declaration Of Conformity
  • PDF
CERTIFICATES & APPROVALS

Attestation Of Conformity

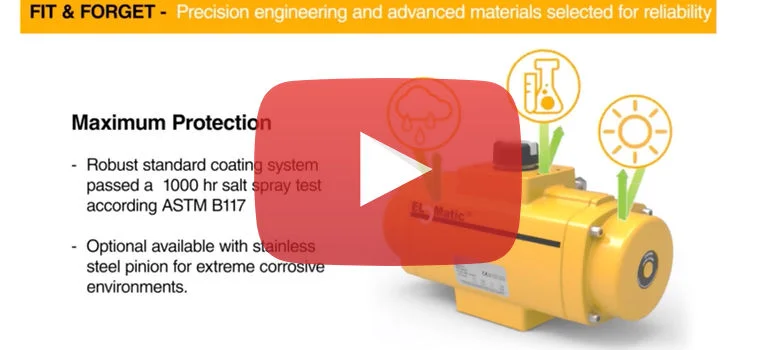

Elomatic Actuator Videos

Elomatic Overview

BIG Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

BIG Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

TopWorx Limit Switch Box

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Heavy Duty Stainless Steel Elomatic Actuated Ball Valves
