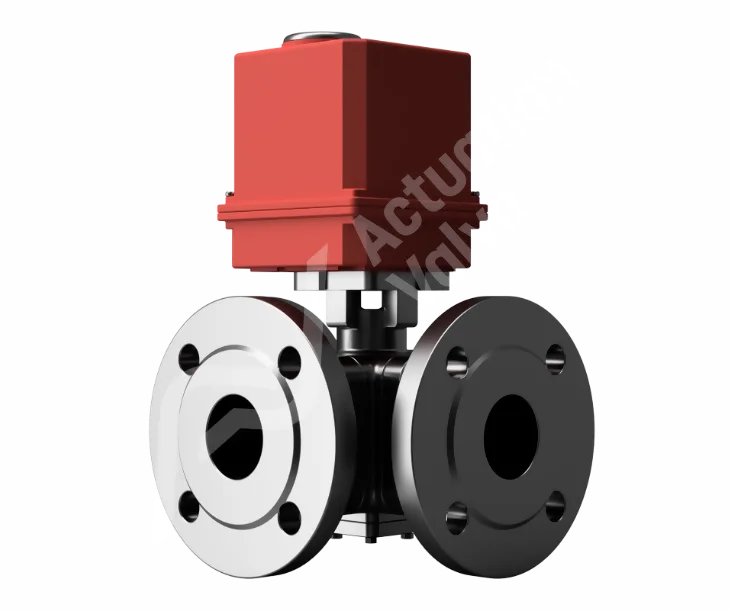

3-Way PN16-PN40 Full Bore AV-Lite Actuator Ball Valves

The BV-L5K00AV & 5N00AV 3-Way Ball Valve is suitable for DIN flanged connections. Its stainless steel body accommodates either an L or T drilled ball configuration. The L port valve is drilled at 90-degree angles from two different sides, forming an L shape, while the T port features a single hole straight through it. These 3-Way Ball Valves find application in industrial process systems for diverting flow from one fluid flow path to another. Typically, they are used in the process industry to connect, disconnect, or redirect flow among two or more fluid flow paths. The industry-leading BV-L5K00AV & 5N00AV Multiport 3-Way Ball Valve has been specifically designed for small to medium-sized control systems, reducing torques. This design can lower costs and enhance performance, ensuring smooth valve operation.
Shop Help Me

Key Features

Key features and benefits of BV-L5K00AV & BV-L5N00AV Actuated Ball Valves.
1

Key Features

The BV-L5K00 & 5N00 Actuated Ball Valves represent an outstanding option for applications in rugged or corrosive environments where standard valves may not be suitable. Crafted with a CF8M body and a ball composed of high-quality stainless steel, these valves can endure even the most challenging conditions.
2

Key Features

The BV-L5K00 & 5N00 3-Way Ball Valve comes in two configurations: L Port and T Port. The distinction between the two lies in their functionality. The L Port version can provide full shutoff, depending on the actuator type, while the T Port version offers diversion or continuous flow from one port to another.
3

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.

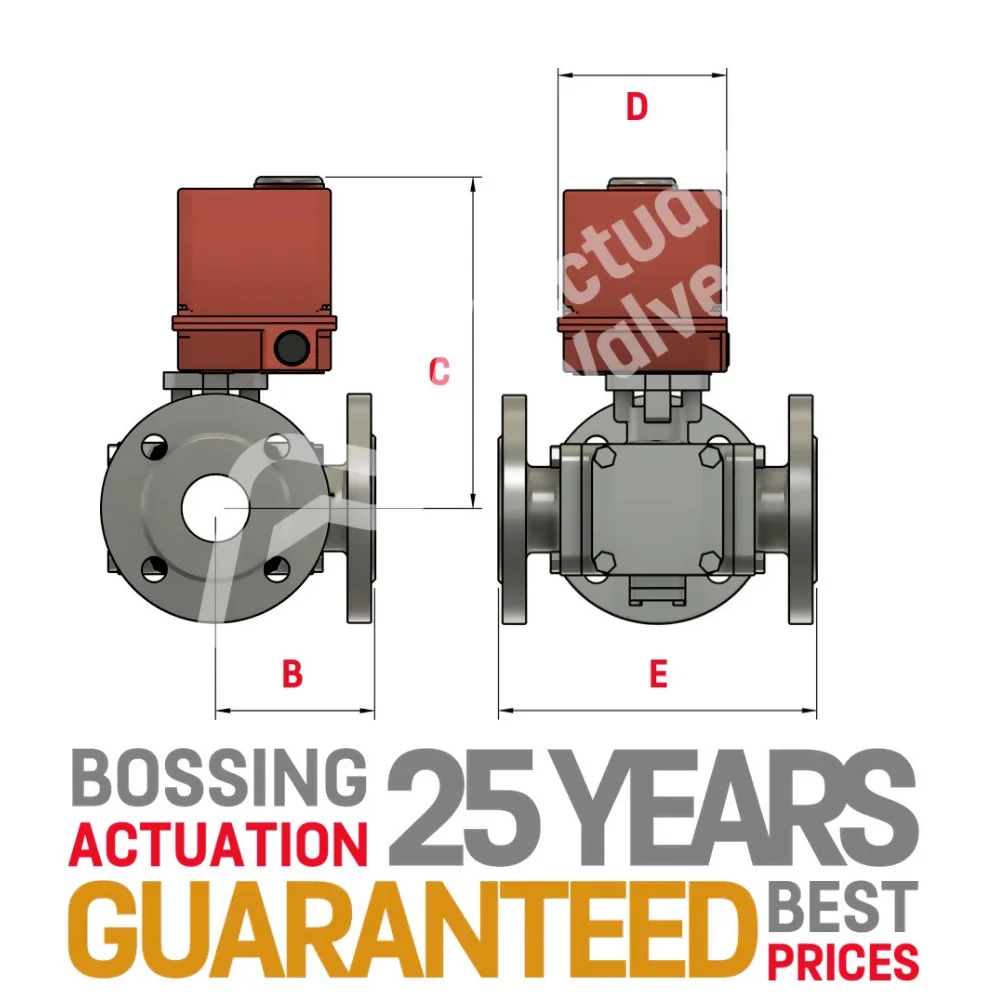

3-Way PN16 PN40 Technical Stuff

B C D E Model
TBA TBA TBA TBA TBA TBA
TBA TBA TBA TBA TBA TBA
1/2" TBA 163.50 100.00 150.00 AV-02
3/4" TBA 167.50 100.00 165.00 AV-02
1" TBA 209.50 121.90 181.00 AV-03
1 1/4" TBA TBA TBA TBA TBA
1 1/2" TBA TBA TBA TBA TBA
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

3-Way PN16 PN40 Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
