3 Piece Premium Hytork Pneumatic Actuator Valves

The BV-L3000XL, BV-L3100XL & BV-L3200XL actuated ball valves integrate our compact, high-quality ball valve with a Hytork pneumatic actuator from Emerson's top-rated lineup. This combination, boasting numerous approvals and certifications, offers a highly cost-effective solution. The direct mount ISO platform allows for rapid assembly, testing, and dispatch. Details on sizes and additional options can be found at the bottom of the page.
Shop Help Me

Key Features

Key features and benefits of BV-L3000XL, BV-L3100XL & BV-L3200XL Actuated Ball Valves.
1

Key Features

The BV-L3000 Ball Valve is a superb selection for high-volume pneumatic systems, thanks to its low torque requirements. This feature means smaller actuators can be used to automate valves that typically need larger ones, significantly reducing the cost of Actuated Valves.
2

Key Features

Its compatibility with NAMUR mounting (VDE/VDI 3845) standardises the mounting hardware across a broad spectrum of accessories, eliminating the necessity to acquire specific mounting kits or adapters, which can otherwise escalate costs and extend installation time.
3

Key Features

This valve is particularly suitable for scenarios requiring frequent On/Off cycles, such as in material handling equipment (MHE), owing to its high cycle life expectancy. Hytork actuators come with a SIL rating for several million cycles, demonstrating a reliable and proven performance history.

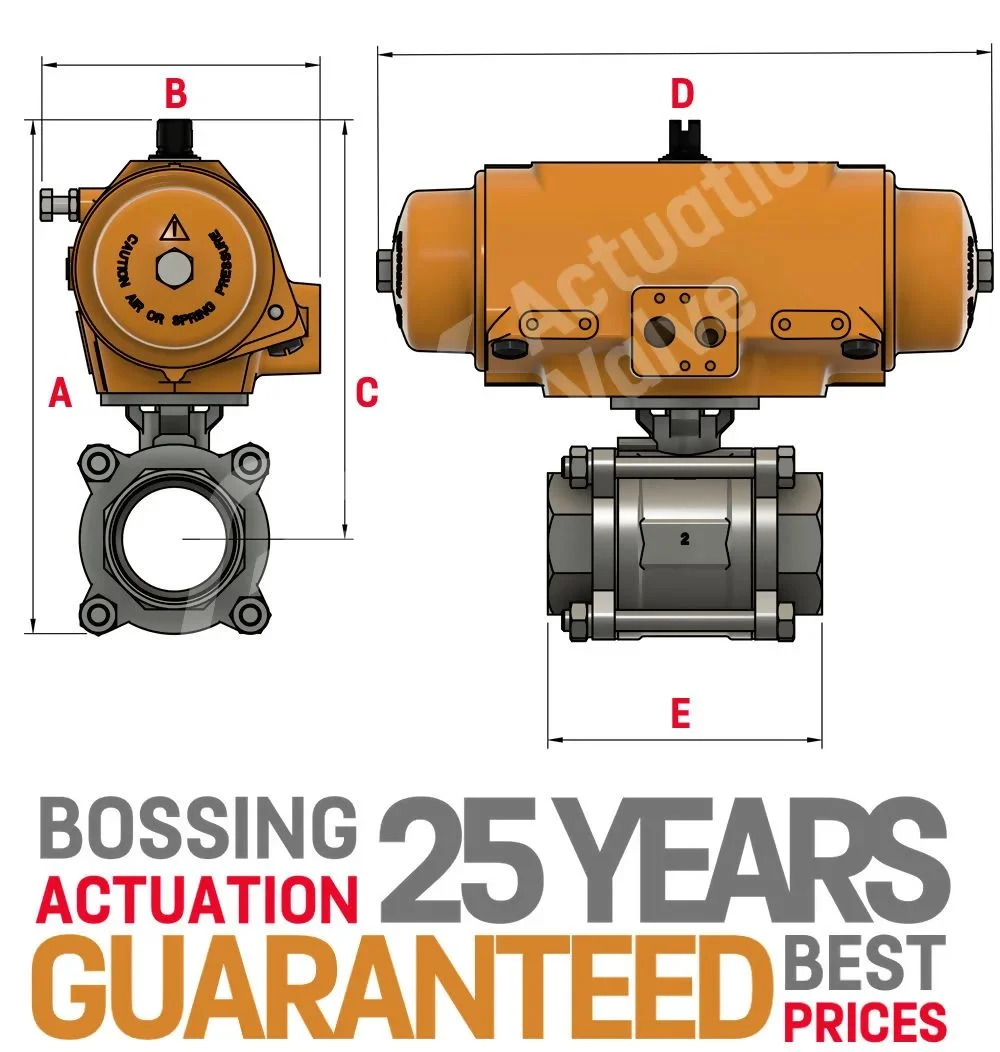

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 146.50 165.00 75.00 97.00 146.50 165.00 75.00
3/8" 97.00 146.50 165.00 75.00 97.00 146.50 165.00 75.00
1/2" 97.00 146.50 165.00 75.00 97.00 146.50 165.00 75.00
3/4" 97.00 153.00 165.00 80.00 97.00 153.00 165.00 80.00
1" 116.50 180.90 221.80 90.00 97.00 163.00 165.00 90.00
1 1/4" 116.50 185.40 221.80 110.00 97.00 167.50 165.00 110.00
1 1/2" 116.50 193.70 221.80 120.00 116.50 193.70 221.80 120.00
2" 133.50 216.60 292.00 140.00 116.50 200.60 221.80 140.00
2 1/2" 143.10 244.05 331.60 185.00 133.50 238.40 292.00 185.00
3" 158.50 268.40 349.80 205.00 143.10 252.55 331.60 205.00
4" 174.00 309.00 462.00 240.00 158.50 299.90 349.80 240.00

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Stuff

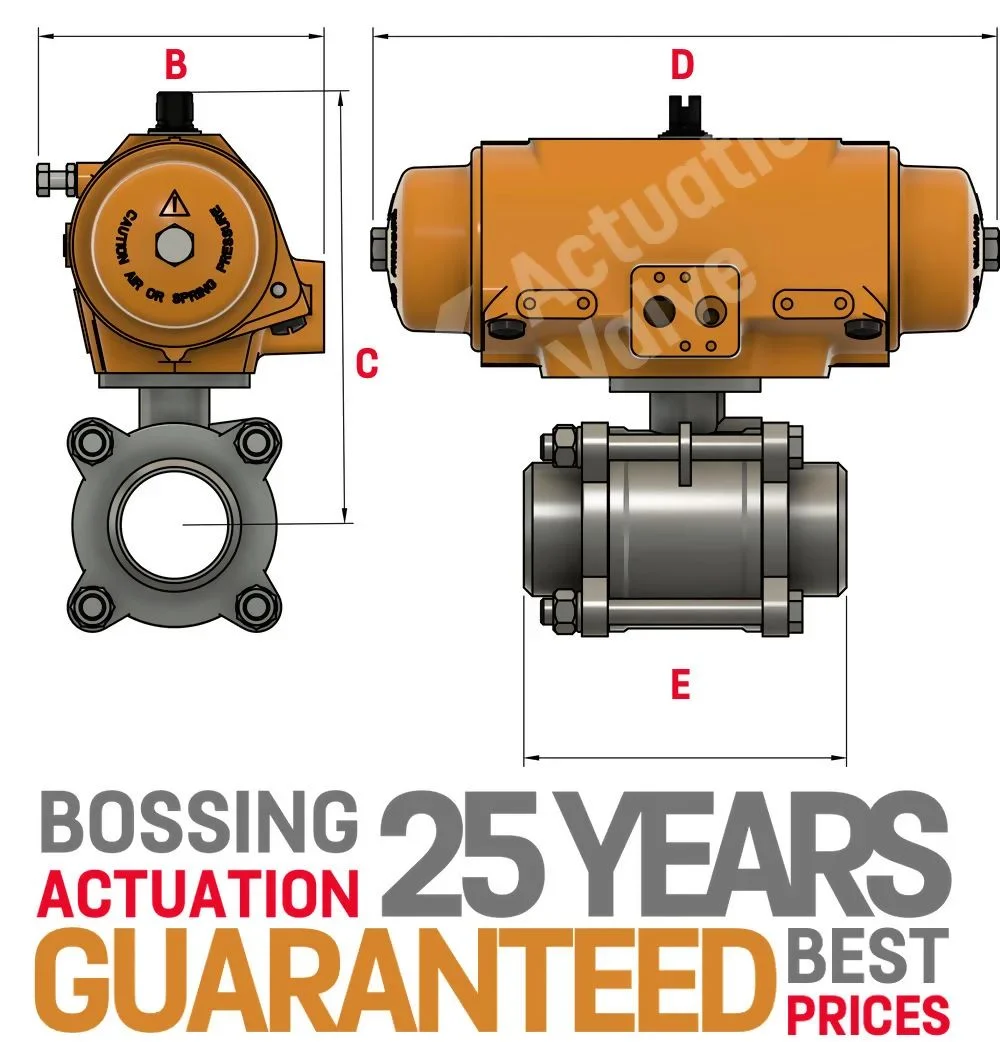

Butt Weld Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 176.50 165.00 70.00 97.00 176.50 165.00 70.00
3/8" 97.00 176.50 165.00 70.00 97.00 176.50 165.00 70.00
1/2" 97.00 176.50 165.00 75.00 97.00 176.50 165.00 75.00
3/4" 97.00 183.50 165.00 90.00 97.00 183.50 165.00 90.00
1" 116.50 211.40 221.80 100.00 97.00 193.50 165.00 100.00
1 1/4" 116.50 215.40 221.80 110.00 97.00 197.50 165.00 110.00
1 1/2" 116.50 225.40 221.80 125.00 116.50 225.40 221.80 125.00
2" 133.50 248.40 292.00 150.00 116.50 232.40 221.80 150.00
2 1/2" 143.10 294.05 331.60 190.00 133.50 288.40 292.00 190.00
3" 158.50 318.90 349.80 220.00 143.10 303.05 331.60 220.00
4" 174.00 381.00 462.00 270.00 158.50 371.09 349.80 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

TR 010 EAC Customs Union
  • PDF
CERTIFICATES & APPROVALS

REACH, ROHS2, ROHS3
  • PDF
CERTIFICATES & APPROVALS

DOC
  • PDF
CERTIFICATES & APPROVALS

TR 012 EAC Customs Union

Hytork Actuator Videos

Hytork Overview

TopWorx Limit Switch Box

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
