Stainless Steel ANSI 150 Elomatic Actuator Valves

The BV-L6100EL 2-piece fully-bore actuated ball valves are accessible in sizes ranging from 1/2" to 8" and are available for delivery the following day. This flanged valve body facilitates installation between two pipeline flanges and end-of-line service, ensuring a dependable shut-off performance. The BV-L6100EL actuated ball valve features TFM 1600 ball seats, a material certified by WRAS and FDA. The ISO 5211 mounting pad enables valve actuation without the need for a mounting bracket, allowing for immediate processing of all assembly and testing procedures once your order is placed.
Shop Help Me

Key Features

Key features and benefits of BV-L6100EL Actuated Ball Valves.
1

Key Features

The EL-O-Matic actuator has been meticulously crafted by a team of expert engineers with a primary focus on safety. Constructed from robust materials, it ensures a prolonged lifespan compared to most competitors' products, all while maintaining a lightweight design for easy installation.
2

Key Features

The El-O-Matic Pneumatic Actuator seamlessly integrates with other automation equipment, making it suitable for diverse industries such as manufacturing, food production, material handling, packaging, and medical devices/equipment.
3

Key Features

This package is an ideal option for those dealing with moderately aggressive water conditions and challenging external environments. Crafted with precision using high-quality materials from the reputable manufacturer Kingdom Controls.

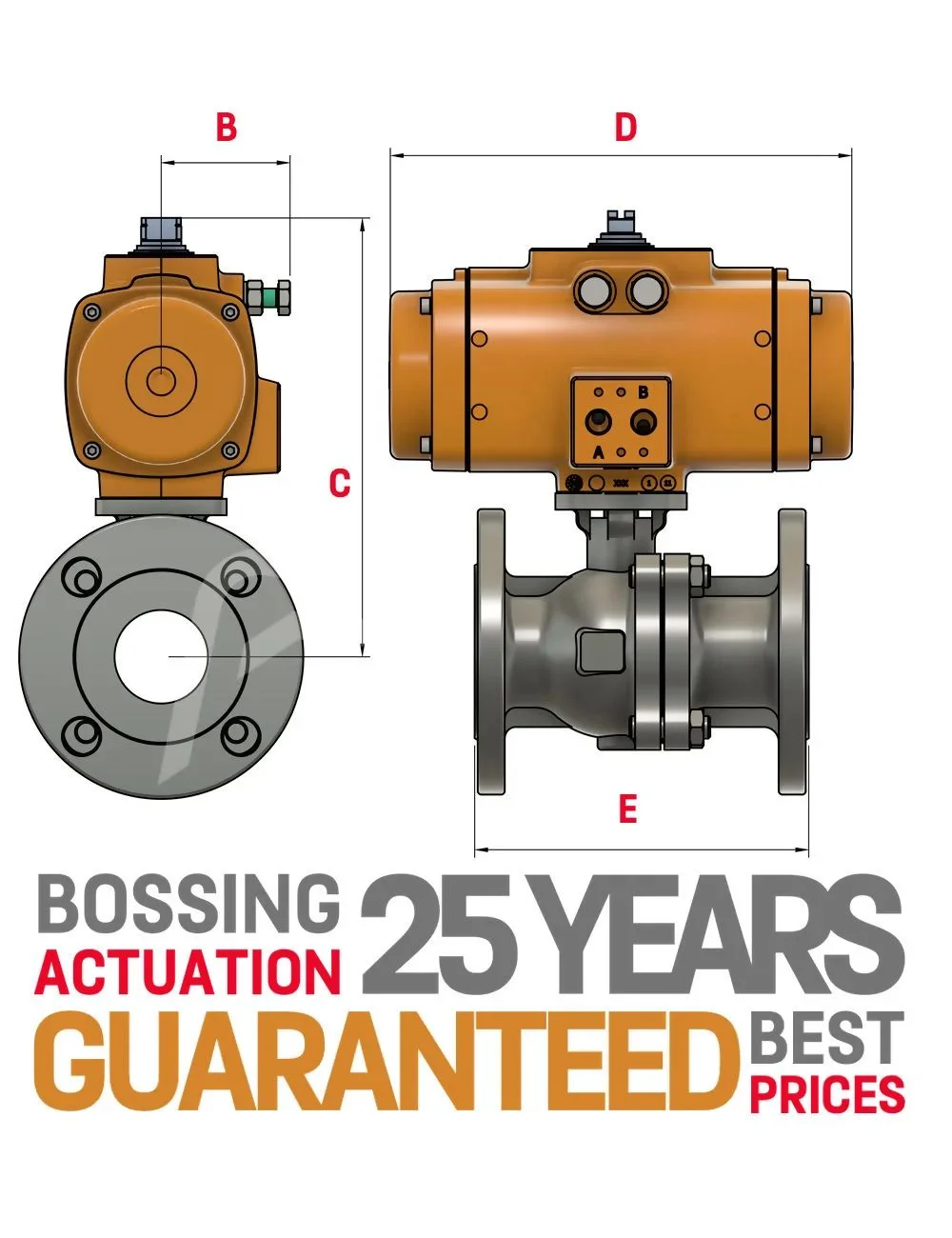

Flanged ANSI 150 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 48.00 160.00 166.00 108.00 33.00 129.00 103.00 108.00
3/4" 48.00 164.00 166.00 108.00 48.00 164.00 166.00 117.00
1" 58.00 191.00 192.00 127.00 48.00 170.00 166.00 127.00
1 1/4" 58.00 203.00 192.00 140.00 48.00 182.00 166.00 140.00
1 1/2" 69.00 220.00 217.00 165.00 58.00 208.00 192.00 165.00
2" 69.00 233.00 247.00 178.00 69.00 226.00 217.00 178.00
2 1/2" 75.00 279.00 304.00 190.00 69.00 253.00 247.00 190.00
3" 87.00 295.00 362.00 203.00 75.00 289.00 235.00 203.00
4" 109.00 361.00 385.00 229.00 87.00 323.00 265.00 229.00
5" 132.00 461.00 476.00 356.00 109.00 404.00 284.00 356.00
6" 131.00 502.00 658.00 394.00 132.00 482.00 356.00 394.00
8" 130.00 585.00 732.00 457.00 131.00 551.00 400.00 457.00
10" TBA TBA TBA TBA TBA TBA TBA TBA

Flanged ANSI 150 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

SMALL Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
  • Size 0100
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
BSP Ends: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
Brochures

F-Series Elomatic
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Safety Manual
  • PDF
CERTIFICATES & APPROVALS

Declaration Of Conformity
  • PDF
CERTIFICATES & APPROVALS

Attestation Of Conformity

TopWorx Limit Switch Box

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.

BIG Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

BIG Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

Elomatic Actuator Videos

Elomatic Overview
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
