3 Piece Premium Elomatic Actuated Ball Valves

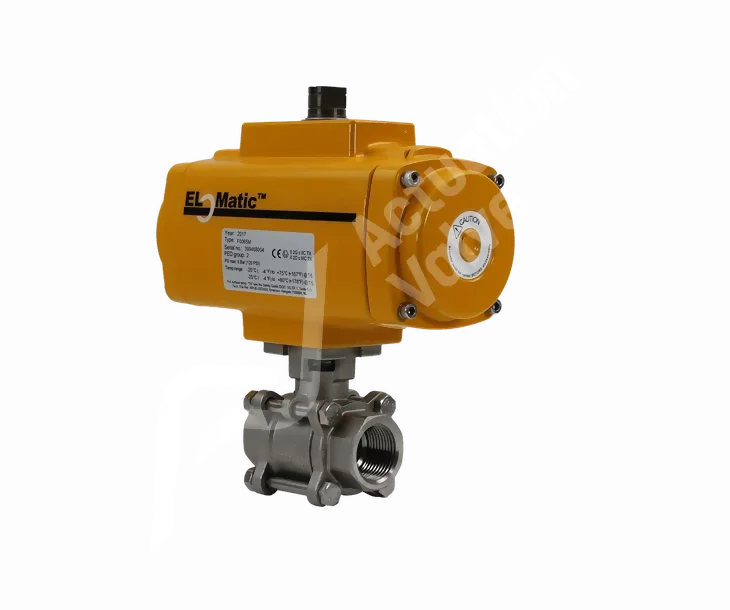

The BV-L3000EL, 3100EL, and 3200EL actuated ball valves are integral components of BallValve's 3-piece stainless steel standard valve range. They feature a drop-out centre section for easy maintenance, making them ideal for scheduled maintenance and seat replacements. These valves are FDA and WRAS approved, indicating compliance with strict quality standards. They also have approvals from DNV and Lloyd's Register, emphasising their reliability. Additional options include a Certificate of Conformity (COC) and a detailed assembly and calibration certificate. Every unit undergoes rigorous in-house testing to ensure performance and quality before being delivered to customers.

Key Features

Key features and benefits of BV-L3000EL, BV-L3100EL & BV-L3200EL Actuated Ball Valves.
1

Key Features

These devices have been verified by TÜV to function flawlessly over extended periods, even in challenging environments such as elevated temperatures and high humidity. These characteristics enable the creation of exceptionally dependable systems using only our pneumatic actuators.
2

Key Features

The Stainless Steel Ball Valves are indeed economical, reliable, and user-friendly. They feature an FDA-approved TFM seat and carry WRAS certification, making them suitable for sanitary applications. These versatile valves are well-suited for both commercial and residential use.
3

Key Features

The EL-O-Matic Pneumatic Actuator simplifies valve control by serving as a versatile replacement for traditional actuators. This single device is compatible with various valve types, including ball valves and butterfly valves. It is designed to work seamlessly with standard industry mountings such as ISO 5211 and VDE/VDI3845 (NAMUR), making it a practical choice for valve automation.

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 153.00 166.00 75.00 33.00 122.00 103.00 75.00
3/8" 48.00 153.00 166.00 75.00 33.00 122.00 103.00 75.00
1/2" 48.00 153.00 166.00 75.00 33.00 122.00 103.00 75.00
3/4" 48.00 159.50 166.00 80.00 48.00 159.50 166.00 80.00
1" 58.00 190.50 192.00 90.00 48.00 169.50 166.00 90.00
1 1/4" 58.00 195.00 192.00 110.00 48.00 174.00 166.00 110.00
1 1/2" 69.00 215.30 217.00 120.00 58.00 203.30 192.00 120.00
2" 69.00 229.20 247.00 140.00 69.00 222.20 217.00 140.00
2 1/2" 75.00 277.00 304.00 185.00 69.00 251.00 247.00 185.00
3" 87.00 291.50 362.00 205.00 75.00 285.00 235.00 205.00
4" 109.00 361.00 385.00 240.00 87.00 323.00 265.00 240.00

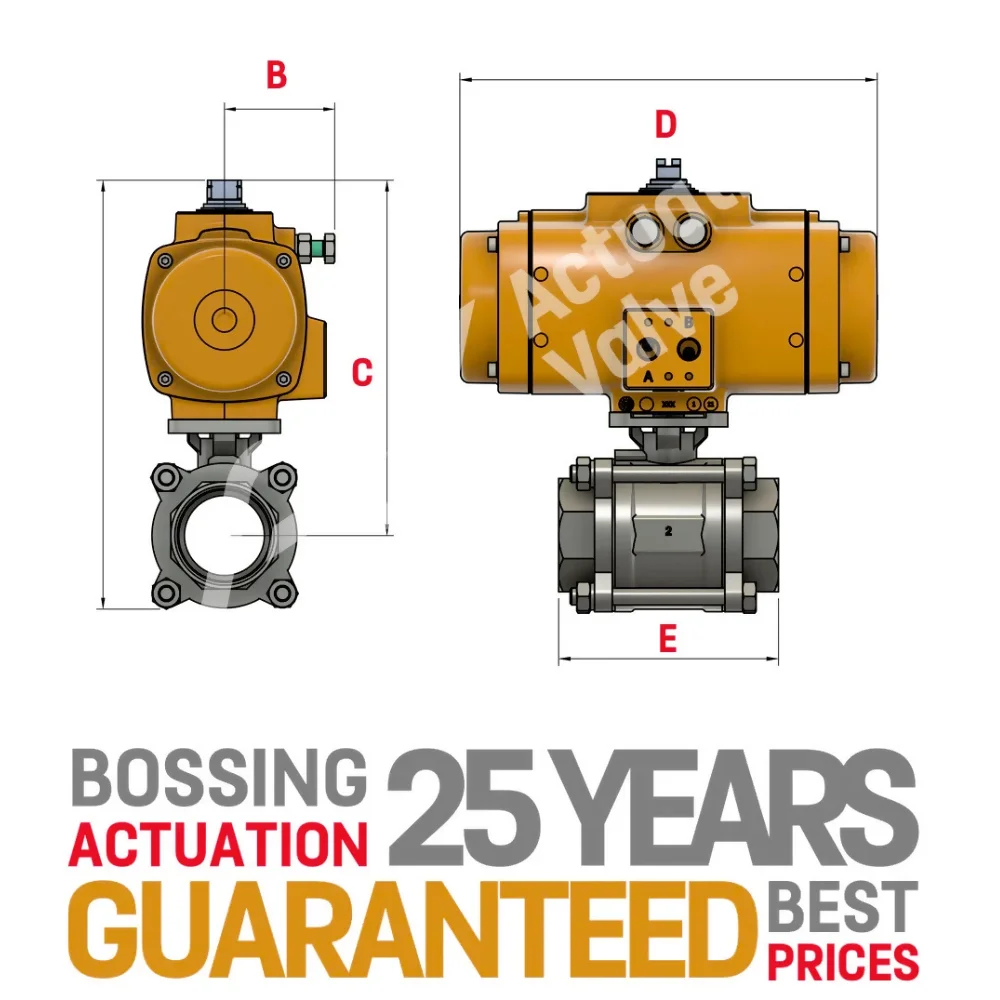

Screwed/Socket Weld 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

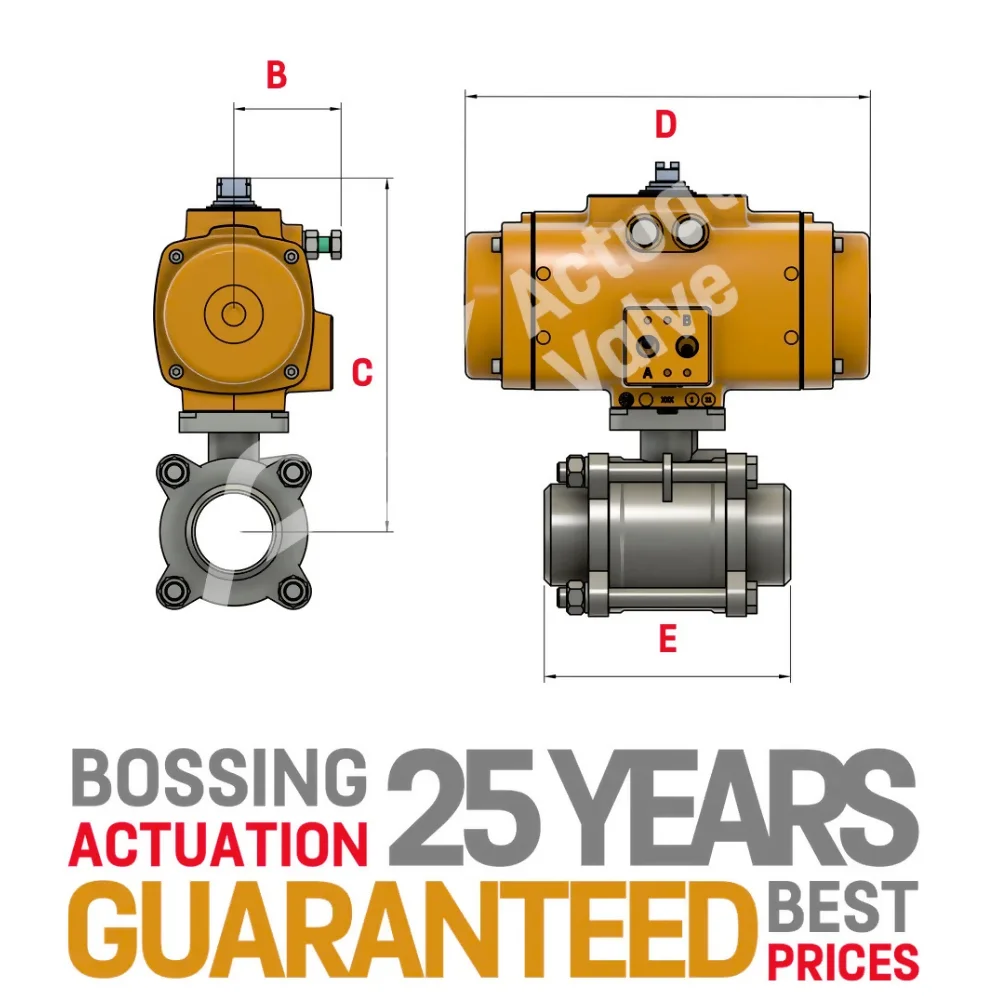

Butt Weld Valve 3D Stuff

Butt Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 153.00 166.00 70.00 33.00 122.00 103.00 70.00
3/8" 48.00 153.00 166.00 70.00 33.00 122.00 103.00 70.00
1/2" 48.00 153.00 166.00 75.00 33.00 122.00 103.00 75.00
3/4" 48.00 159.50 166.00 90.00 48.00 159.50 166.00 90.00
1" 58.00 190.50 192.00 100.00 48.00 169.50 166.00 100.00
1 1/4" 58.00 195.00 192.00 110.00 48.00 174.00 166.00 110.00
1 1/2" 69.00 215.30 217.00 125.00 58.00 203.30 192.00 125.00
2" 69.00 229.20 247.00 150.00 69.00 222.20 217.00 150.00
2 1/2" 75.00 277.00 304.00 190.00 69.00 251.00 247.00 190.00
3" 87.00 291.50 362.00 220.00 75.00 285.50 235.00 220.00
4" 109.00 361.00 385.00 270.00 87.00 323.00 265.00 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Elomatic Actuator Videos

TopWorx Limit Switch Box

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3 Piece Premium Elomatic Pneumatic Actuated Ball Valves
