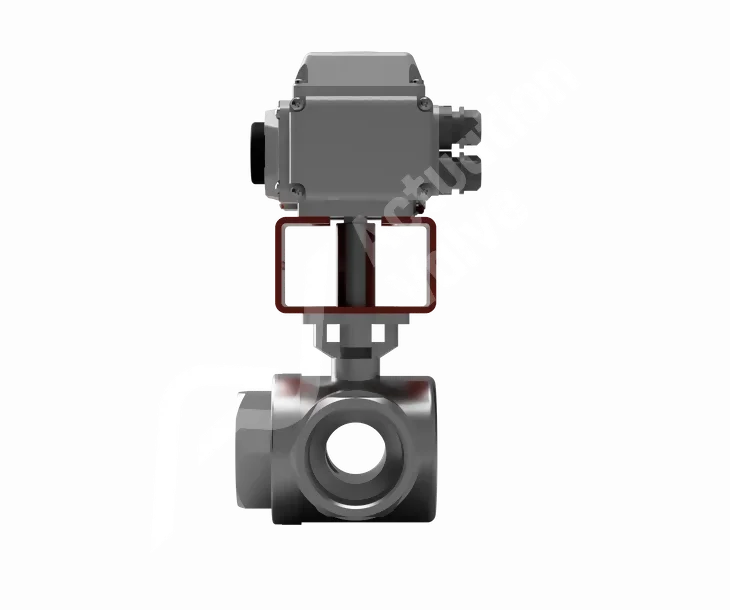

3-Way Reduced Bore SS Koei UNIC Electric Actuator Valves

BallValve ensures swift delivery times while maintaining high standards of quality and expertise. Every order includes a comprehensive two-page test report, which outlines the opening and closing times for each tested valve. Whether you require a single product or numerous off-the-shelf components, we are equipped to meet your needs. The BV-L5000 & 5100 3-Way Multi Port Ball Valves, configurable for L or T Port Operation, are designed to suit a broad range of applications. They offer low pressure drop, reduced cavitation, and superior flow characteristics. Koei UNIC's innovative design is uniquely robust against vibrations from all directions, eliminating the need for extra parts. This makes it an ideal choice for environments with significant vibrations, such as heavy machinery or drilling equipment.
Shop Help Me

Key Features

Key features and benefits of BV-L5000EK & BV-L5100EK Actuated Ball Valves.
1

Key Features

The Koei UNIC Electric Actuator offers a solution that is both resistant to vibration and capable of absorbing shocks, making it the most compact option available in today's market. This actuator ensures smooth functioning throughout its entire speed range, even in environments with high shocks.
2

Key Features

Each actuator is accompanied by a complimentary, detailed manual designed to help you maintain your equipment in top condition. The manual includes essential information on general operation and maintenance tips to ensure optimal performance.
3

Key Features

The BV-L5000 & 5100 Screwed 3-Way Stainless Steel Ball Valve is a cost-effective, robust, and versatile valve. It has been specially designed to offer a lengthy operational life in applications where dependability is crucial.

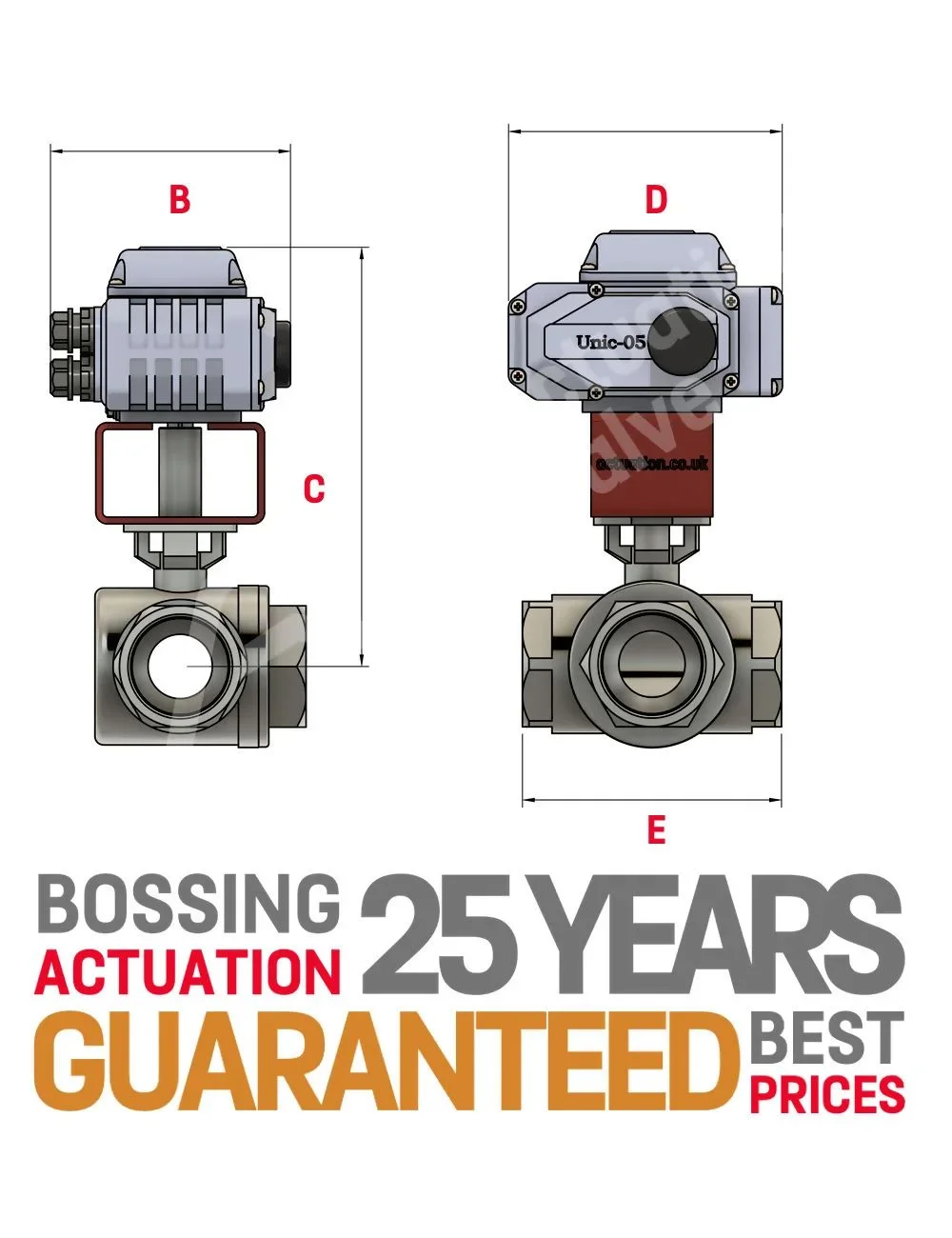

RB 3-Way Ball Valve Technical Stuff

B C D E Model
1/4" 145.00 219.00 159.00 79.00 UNIC 05
3/8" 145.00 219.00 159.00 79.00 UNIC 05
1/2" 145.00 219.00 159.00 79.00 UNIC 05
3/4" 145.00 225.00 159.00 88.00 UNIC 05
1" 145.00 235.50 159.00 108.00 UNIC 05
1 1/4" 145.00 239.00 159.00 124.00 UNIC 05
1 1/2" 145.00 249.50 159.00 135.00 UNIC 05
2" 155.00 284.80 208.00 164.00 UNIC 10
2.5" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.

Actuator Stuff

  • PDF
Brochures

Koei UNIC
  • PDF
Certificates & Approvals

CE Declaration
  • PDF
Certificates & Approvals

Nema UL
  • PDF
Operations

AC Actuators
  • PDF
Operations

DC Actuators
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3-Way BSPP Koei UNIC Electric Actuated Ball Valves
