Air Torque Actuated 3 Piece Full Bore Ball Valves

The Air Torque Actuator represents a new generation of pneumatic actuators suitable for demanding environments while maintaining high performance standards. It is ideal for applications that require high reliability and durability at a low cost. The isolation ball valve, with its three-piece body design, confines maintenance work to the necessary areas, simplifying preventive care. The drop-out section enables quick seal replacements without disrupting your production schedule. By using the same body designs and end caps for both spring return and double-acting units, not only is mass production facilitated, but inventory is also reduced, with the ability to convert units in the field by adding or removing the modular spring cartridge. This offers a straightforward yet efficient solution when needed.

Key Features

Key features and benefits of the BV-L3000AT, BV-L3100AT & BV-L3200AT Actuated Ball Valves.
1

Key Features

Air Torque actuators are designed to deliver years of service with minimal maintenance needs, making them stand out in comparison to similar products available today. We provide a diverse range of models to ensure you can find one that perfectly suits your requirements.
2

Key Features

Our Air Torque actuators are constructed from top-quality materials and have been engineered to provide dependable service for years. But that's not all - we also provide our customers with the choice of selecting from various materials, including stainless steel or epoxy-coated options.
3

Key Features

The BV-L3000 Ball Valve, a leader in the industry, has been purposefully designed for small to medium-sized control systems with lower torque requirements. This design feature can lead to cost reduction and improved performance by enabling smooth valve operation.

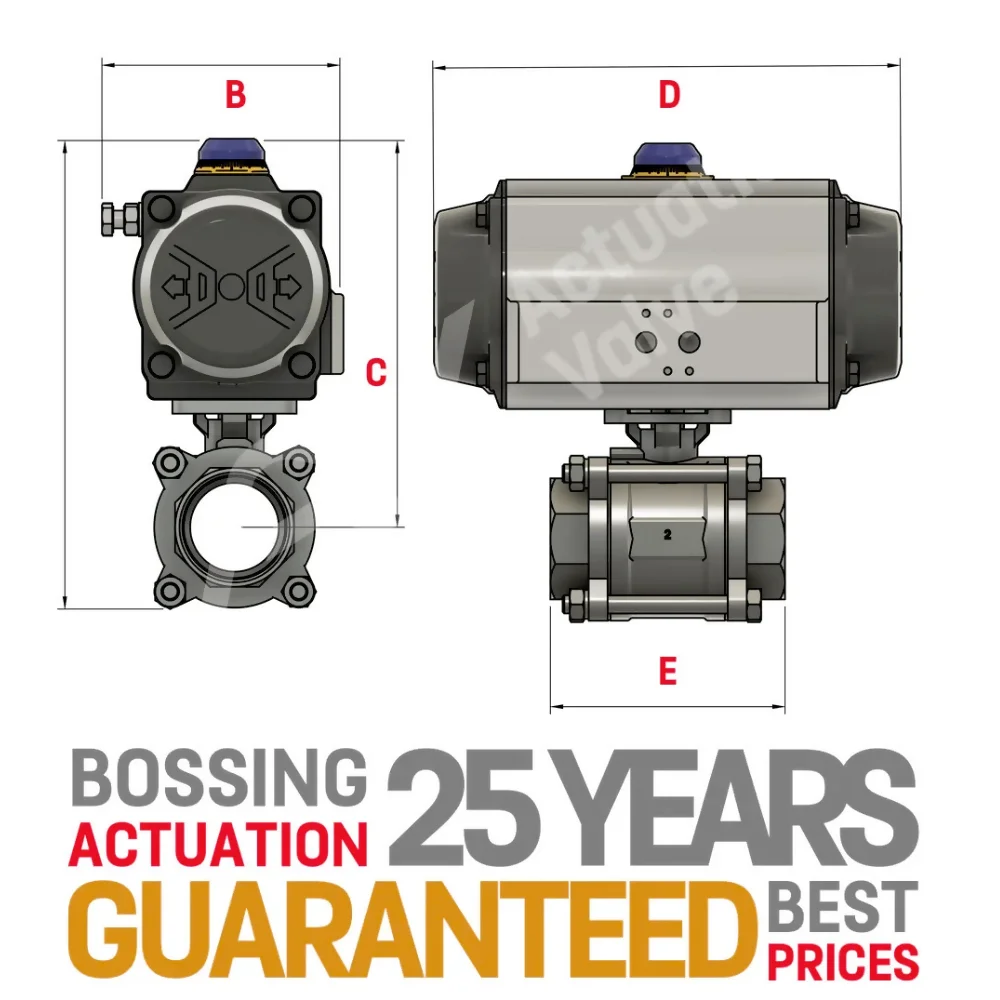

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 72.00 131.00 137.00 75.00 72.00 131.00 137.00 75.00
3/8" 72.00 131.00 137.00 75.00 72.00 131.00 137.00 75.00
1/2" 72.00 131.00 137.00 75.00 72.00 131.00 137.00 75.00
3/4" 72.00 137.50 137.00 80.00 72.00 137.50 137.00 80.00
1" 84.50 163.50 153.50 90.00 72.00 147.50 137.00 90.00
1 1/4" 93.00 185.00 203.50 110.00 72.00 152.00 137.00 110.00
1 1/2" 93.00 193.30 203.50 120.00 84.50 176.30 153.50 120.00
2" 106.00 213.20 241.00 140.00 93.00 200.20 203.50 140.00
2 1/2" 118.50 247.00 259.00 185.00 93.00 222.00 203.50 185.00
3" 136.00 283.50 304.00 205.00 106.00 243.50 241.00 205.00
4" 166.00 347.00 394.50 240.00 136.00 315.00 304.00 240.00

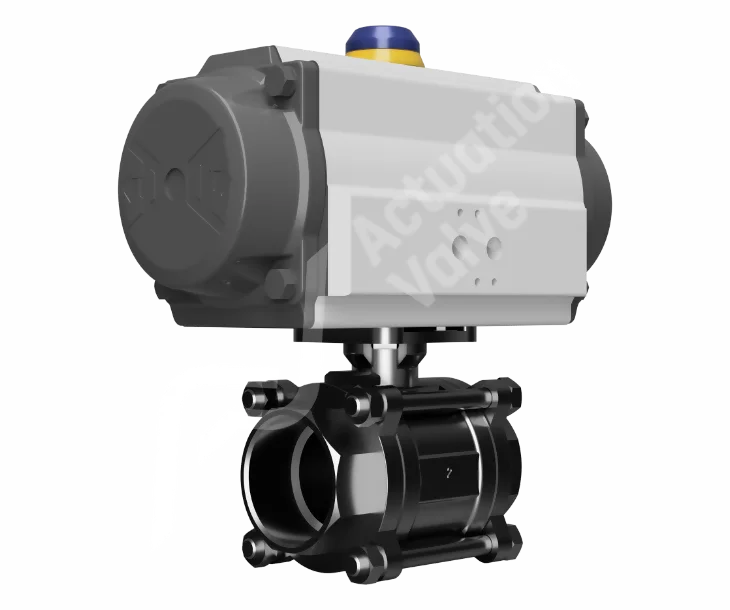

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Stuff

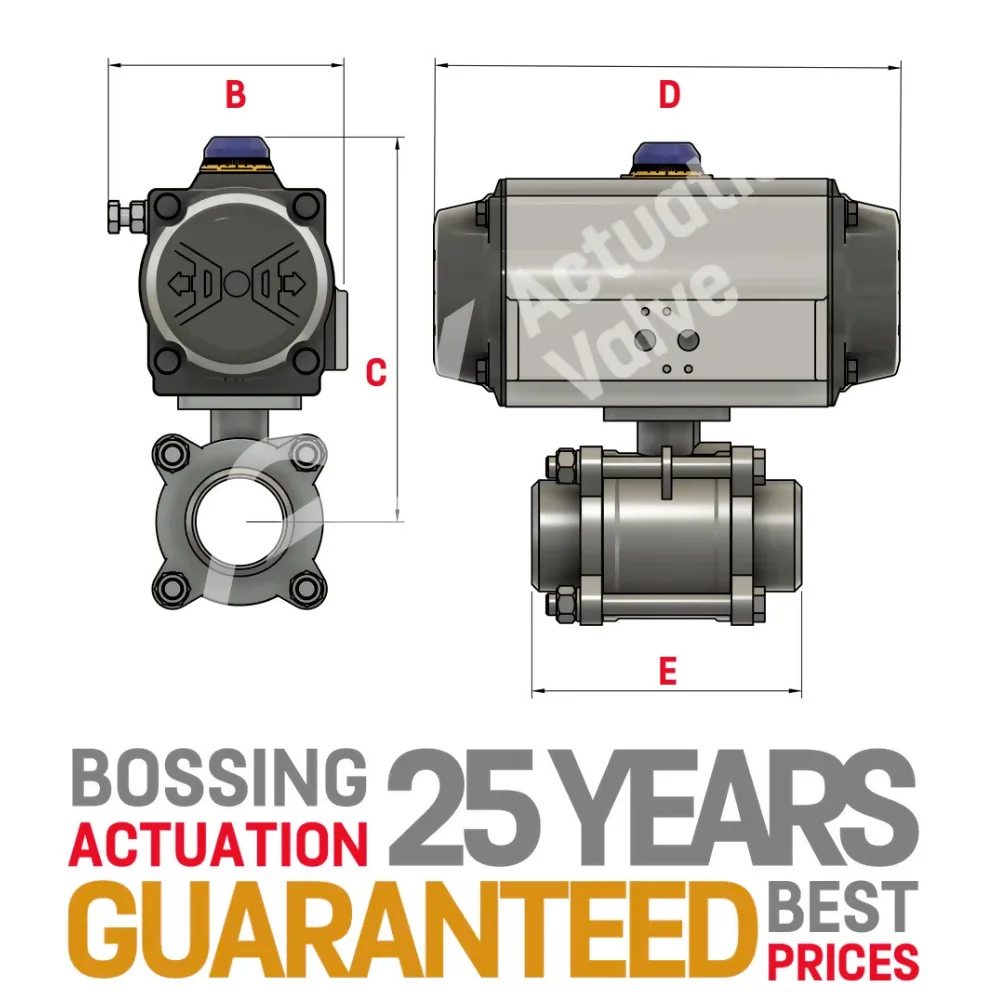

Butt Weld Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 72.00 131.00 137.00 70.00 72.00 131.00 137.00 70.00
3/8" 72.00 131.00 137.00 70.00 72.00 131.00 137.00 70.00
1/2" 72.00 131.00 137.00 75.00 72.00 131.00 137.00 75.00
3/4" 72.00 137.50 137.00 90.00 72.00 137.50 137.00 90.00
1" 84.50 163.00 153.50 100.00 72.00 147.50 137.00 100.00
1 1/4" 93.00 185.00 203.50 110.00 72.00 152.00 137.00 110.00
1 1/2" 93.00 193.30 203.50 125.00 116.50 176.30 153.50 125.00
2" 106.00 213.20 241.00 150.00 116.50 200.20 203.50 150.00
2 1/2" 118.50 247.00 259.00 190.00 133.50 222.00 203.50 190.00
3" 136.00 283.50 304.00 220.00 143.10 243.50 241.00 220.00
4" 166.00 347.00 394.50 270.00 158.50 315.00 304.00 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (BV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (BV-L3000) ASME B1.20.1
Socket Weld Ends: (BV-L3100) ASME B16.11
Butt Weld Ends: (BV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
