The BV-L6N00EK DIN PN40 actuated ball valves, designed for high-pressure, full-flow operations, can accommodate bores up to 8 inches. These valves are structured to be fitted between two different flanges in a pipeline. They come with certifications from DNV, SIL 2, Lloyds Register, and are compliant with NACE MR-0175 standards. Options for these ball valves include a drilled upstream and cavity relief hole in the ball, as well as a high-temperature spindle extension suitable for insulation and steam actuation. Rapid delivery is available, ensuring arrival within 24-48 hours for in-stock components. The Koei UNIC Electric Actuator is equipped with an Allen Key Manual Override for ease of use, an overload protection system, and an electric stop at the end of travel. Additionally, it incorporates a mechanical limit/mechanical switch, facilitating open and close status indications on your control panel.

Shop Help Me

Key features and benefits of BV-L6N00EK Actuated Ball Valves.

Key Features

Since the early 2000s, Koei Actuators, based in Japan, have been crafting Electric Actuators, swiftly rising to prominence as one of the top electric actuator manufacturers.

Key Features

The BV-L6N00 range of stainless steel ball valves has been thoughtfully engineered for your convenience. These valves are not only simple to fit but also boast remarkable longevity, ensuring you maximise their use without concerns about frequent repairs or replacements.

Key Features

The Koei Industry's UNIC Electric Actuator is specifically tailored for continuous process applications, where the regular on/off cycles could impair standard motorised actuators. This innovative Koei UNIC electric actuator enhances your efficiency while cutting down on costs.

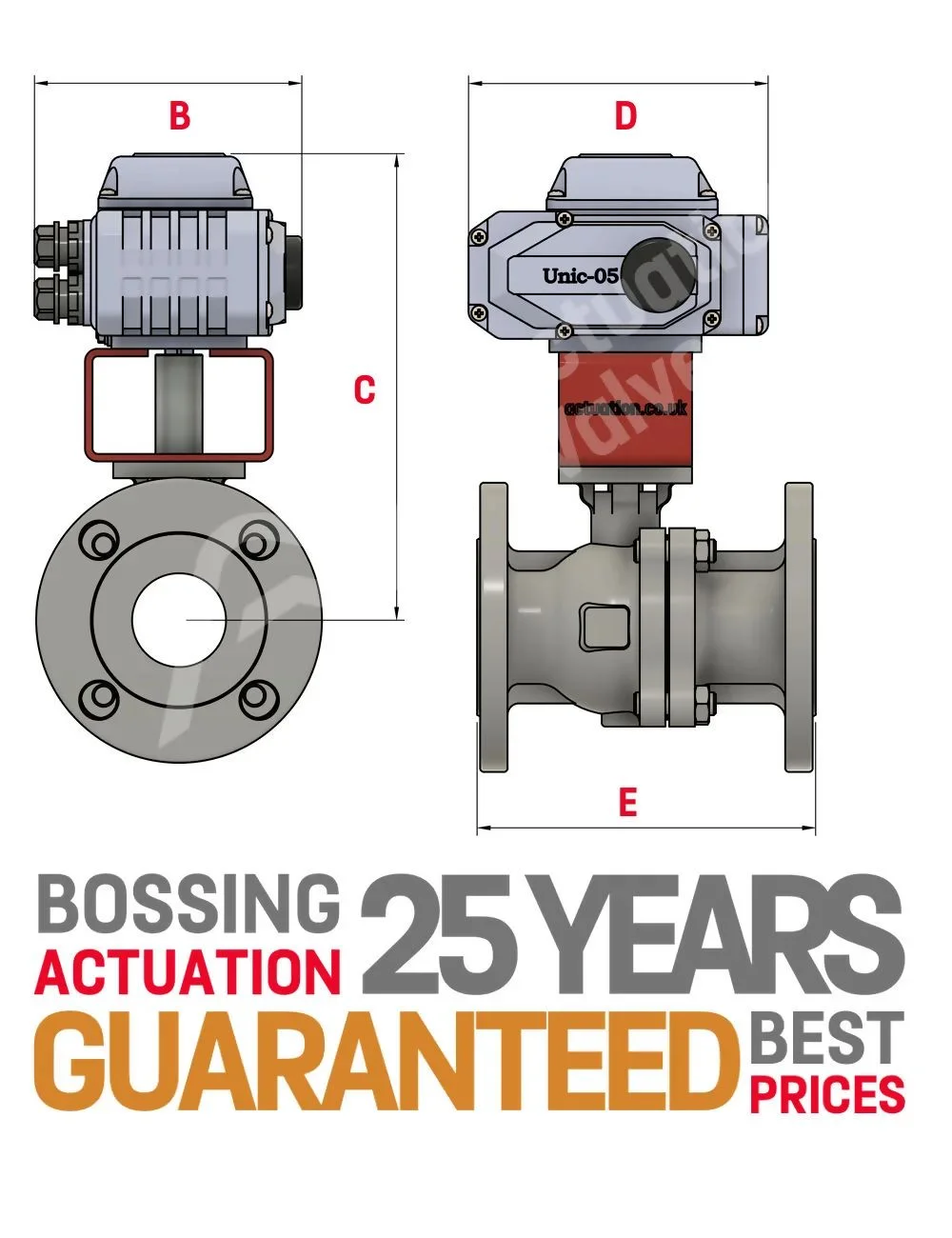

	B	C	D	E	Model
1/2"	145.00	224.00	159.00	115.00	UNIC 05
3/4"	145.00	229.00	159.00	120.00	UNIC 05
1"	145.00	235.00	159.00	125.00	UNIC 05
1 1/4"	145.00	247.00	159.00	130.00	UNIC 05
1 1/2"	145.00	252.00	159.00	140.00	UNIC 05
2"	145.00	261.00	159.00	150.00	UNIC 05
2 1/2"	155.00	304.00	208.00	170.00	UNIC 10
3"	155.00	319.00	208.00	180.00	UNIC 10
4"	187.00	350.00	257.00	190.00	UNIC 20
5"	187.00	393.00	257.00	325.00	UNIC 40
6"	272.00	440.00	381.00	350.00	UNIC 60
8"	272.00	489.00	381.00	400.00	UNIC 60
10"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
