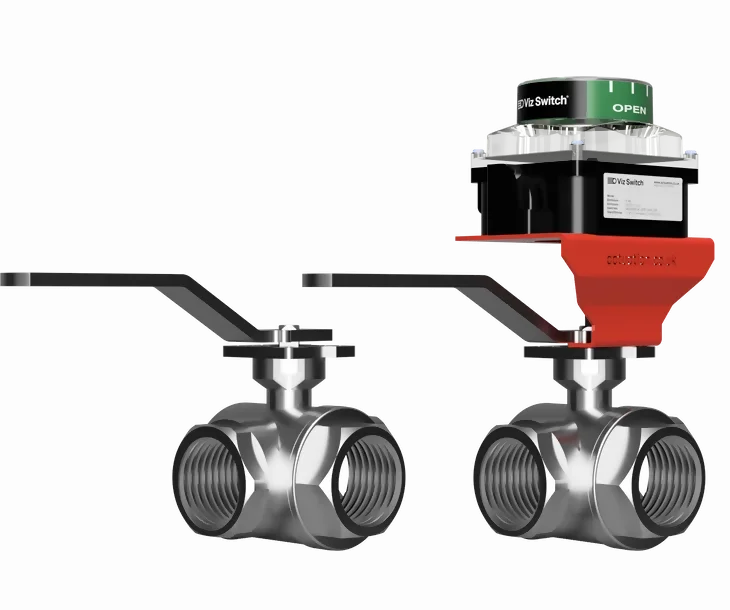

3-Way BSPP Reduced Bore Manual Lever Operated Ball Valves

Three-way ball valves have a range of uses. They can function as diverting valves, redirecting flow to either one or two other ports. They also work effectively as input selectors, with an outlet supplied by the supply from just one side. These valves are commonly employed to control fluid direction. Depending on your application requirements, you can configure them as either diverting or selecting valves. You can find L or T Port Configurations with 90 Degree or 180 Degree Actuators. The BV-L5000 & 5100 stainless steel 3-way ball valves are suitable for applications involving oil-based paints and coatings, such as automotive refinishing. They are entirely free of silicone, eliminating the risk of contaminating your product or leaving behind residue that could harm your finish over time.

Key Features

Key features and benefits of BV-L5000 & BV-L5100 Lever Operated Ball Valves.
1

Key Features

The BV-L5000 & 5100 3-Way Ball Valve is designed for various applications, including mixing, distributing, or diverting water or other fluids. Its stainless steel construction ensures durability and resistance to corrosion from chemicals and external factors. You can choose between L or T Port Configurations when placing your order.
2

Key Features

The BV-L5000 & 5100 3-Way Ball Valve comes in two configurations: L Port and T Port. The L Port version can provide complete shutoff, depending on the actuator type used. On the other hand, the T Port configuration offers diversion or constant flow between ports.
3

Key Features

The BV-L5000 & 5100 Actuated Ball Valves are well-suited for use in challenging or corrosive environments where standard valves may not be suitable. These valves feature a CF8M stainless steel body and ball construction, ensuring they can withstand even the most demanding conditions with durability and corrosion resistance.

Frequently Asked Questions

A 3-way screwed ball valve is a type of valve that has three ports and a ball with a hole through it, which can be rotated to control the flow of fluids. The "screwed" part refers to the threaded connections on the ports for easy installation.

3-way ball valves are commonly used in plumbing, chemical processing, food and beverage, water treatment, and HVAC systems. They are used to switch the flow between two different paths or to combine flow from two inlets.

A 3-way ball valve works by rotating a ball with a hole through it inside the valve body. The rotation aligns the hole with different ports, allowing or blocking flow through the valve. The handle or actuator determines the position of the ball.

There are mainly two types of 3-way ball valves:

  • T-port: Allows flow to be directed to any of the two outlet ports or all three ports simultaneously.
  • L-port: Directs flow from one inlet to one of two outlet ports.

3-way ball valves can be made from various materials including stainless steel, brass, PVC, and cast iron, depending on the application's requirements for durability, pressure, temperature, and chemical resistance.

Consider the following factors:

  • Type of fluid (chemical compatibility)
  • Temperature and pressure ratings
  • Connection type (screwed, flanged, welded)
  • Flow configuration (T-port or L-port)
  • Material compatibility

Advantages include:

  • Versatility in controlling flow paths
  • Easy operation with quarter-turn action
  • Durability and low maintenance
  • Tight shut-off capabilities
  • Compact design for space-saving installation

Ensure the system is depressurized and drained. Use appropriate thread sealant or tape on the threaded connections. Align the valve with the pipe fittings and screw them in place, ensuring a tight, leak-free connection. Check for proper valve orientation according to the flow path requirements.

Yes, 3-way ball valves can be equipped with actuators (electric, pneumatic, or hydraulic) for automated operation. This is useful in applications requiring remote control or integration into automated systems.

Regular maintenance includes:

  • Checking for leaks around the valve and fittings
  • Ensuring the handle or actuator moves smoothly
  • Inspecting for wear and tear, especially on seals and seats
  • Periodic cleaning to remove debris or buildup

Common issues include:

  • Leaking: Check and tighten connections, replace seals or seats if worn.
  • Stiff operation: Lubricate the stem and check for debris in the valve body.
  • Improper flow direction: Verify the valve is installed correctly according to the desired flow path.

Yes, 3-way ball valves can be used in high-pressure applications if they are rated for the required pressure. Always check the valve's pressure rating and material suitability for the specific application to ensure safety and performance.

FAQ
