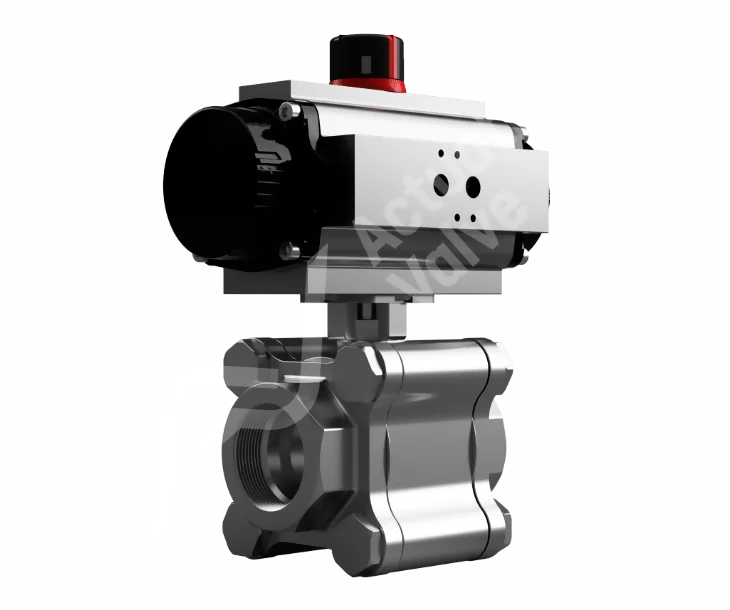

Heavy Duty Actreg Actuated Stainless Steel Valves

Our in-house experts assemble all Actuated Valve Assemblies, ensuring each unit meets high standards, verified by a detailed two-page test report on their performance. For a valve that withstands severe conditions and offers years of reliable service, consider the BV-L8000FS Heavy Duty Ball Valve. It features PTFE TFM 4215 ball seats and grafoil stem sealing. The Actreg line of pneumatic actuators integrates seamlessly into both new and existing systems with its efficient, compact design. We provide Direct Mount options and customised mounting kit assemblies tailored to your specific valve requirements.
Shop Help Me

Key Features

Key features and benefits of BV-L8000AC, BV-L8100AC & BV-L8200AC Actuated Ball Valves.
1

Key Features

By transitioning from traditional ball valves to our low-torque BV-L8000FS Ball Valve, you can achieve cost savings on both installation and maintenance, all while enhancing overall reliability. Our product is meticulously crafted with the end-user in consideration, and we have a deep understanding of what proves most effective for industrial automation.
2

Key Features

Every individual actuator maintains its complete traceability, right back to the factory, via a distinctive serial number. Additionally, all assemblies carried out by BallValve in-house meticulously document and cross-reference this serial number with the associated valves and accessories in a comprehensive build sheet format.
3

Key Features

The BV-L8000FS Ball Valve proves to be an excellent selection for high-volume pneumatic systems due to its low torque demands. This feature leads to cost reductions for actuated valves, as smaller actuators can be employed to automate valves that typically require larger units.

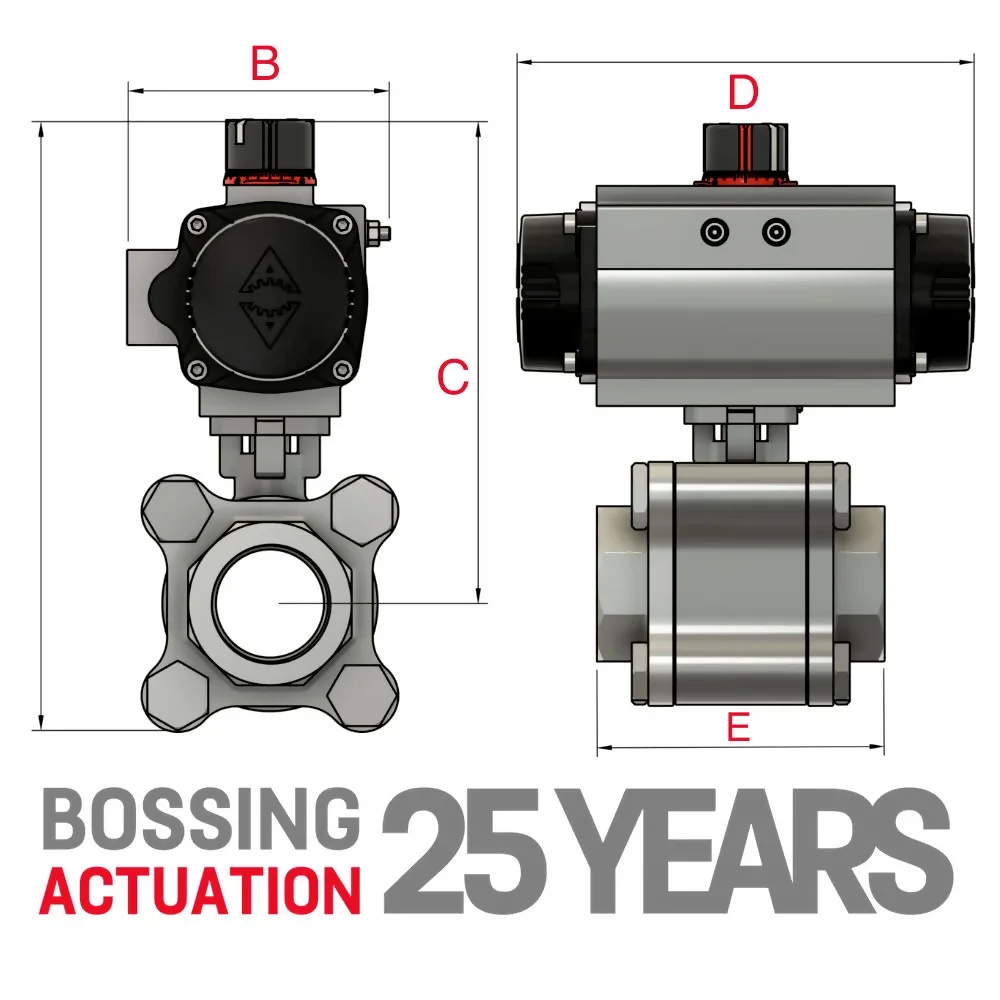

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 81.00 139.00 163.00 75.00 81.00 139.00 145.00 75.00
3/8" 81.00 139.00 163.00 75.00 81.00 139.00 145.00 75.00
1/2" 81.00 139.00 163.00 75.00 81.00 139.00 145.00 75.00
3/4" 81.00 147.00 163.00 80.00 81.00 147.00 145.00 80.00
1" 96.00 173.00 195.00 90.00 96.00 173.00 158.00 90.00
1 1/4" 96.00 178.00 195.00 110.00 96.50 178.00 158.00 110.00
1 1/2" 116.00 212.00 217.00 120.00 116.00 212.00 177.00 120.00
2" 116.00 223.00 217.00 140.00 116.00 223.00 177.00 140.00

Right Column Header

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

010
  • PDF
DRAWINGS & SCHEMATICS

020
  • PDF
DRAWINGS & SCHEMATICS

040
  • PDF
DRAWINGS & SCHEMATICS

080
  • PDF
DRAWINGS & SCHEMATICS

130
  • PDF
DRAWINGS & SCHEMATICS

200

Actuated Valve Testing & Calibration

Every actuated valve assembly undergoes thorough testing and calibration by our skilled team of technical engineers before being packed and shipped. This ensures that upon arrival at your location, the assemblies are installation-ready, allowing for swift resumption of your production operations.

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

300
  • PDF
DRAWINGS & SCHEMATICS

500
  • PDF
DRAWINGS & SCHEMATICS

850
  • PDF
DRAWINGS & SCHEMATICS

1200
  • PDF
DRAWINGS & SCHEMATICS

1750
  • PDF
DRAWINGS & SCHEMATICS

2100

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Massive Actuators & Other STUFF

  • PDF
DRAWINGS & SCHEMATICS

2500
  • PDF
DRAWINGS & SCHEMATICS

4000
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

O&M
  • PDF
CERTIFICATES & APPROVALS

SPARES

Actreg Actuator Videos

Spring Change
Stroke Adjustment
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Heavy Duty Stainless Steel Actreg Actuator Actuated Valves
