Stainless Steel DIN PN16 Elomatic Actuator Valves

The BV-L6K00EL valves with PN16 flanges provide a simple solution for quarter-turn actuation suitable for low to medium pressure applications, featuring DIN flanged connections (up to 16 bar maximum). Various sizes of pneumatic actuators, available in FS or FD models, enable configurations such as fail-in-position, return to the set position, and fail-safe open or closed. Both spring return and double-acting actuation valves can be supplied with different feedback options for remote position monitoring. For enhanced control, 4-20mA electric or electro-pneumatic positioners can be provided.

Key Features

Key features and benefits of BV-L6K00EL Actuated Ball Valves.
1

Key Features

Our stainless steel ball valves undergo pre-testing, ensuring immediate functionality upon receipt. Upon completion of your order, you will also be provided with a comprehensive two-page test report detailing all opening and closing times.
2

Key Features

The EL-O-Matic actuator prioritizes safety and has been meticulously designed by a team of specialist engineers. Constructed from robust materials, it boasts an extended lifespan compared to most competitors' products, while remaining lightweight for easy installation.
3

Key Features

EL-O-Matic Pneumatically actuated valves find applications in various industries, including chemical, oil and gas, pharmaceuticals, water treatment, and more. These valves offer a swift response time for opening or closing the flow of media, be it gases or fluids.

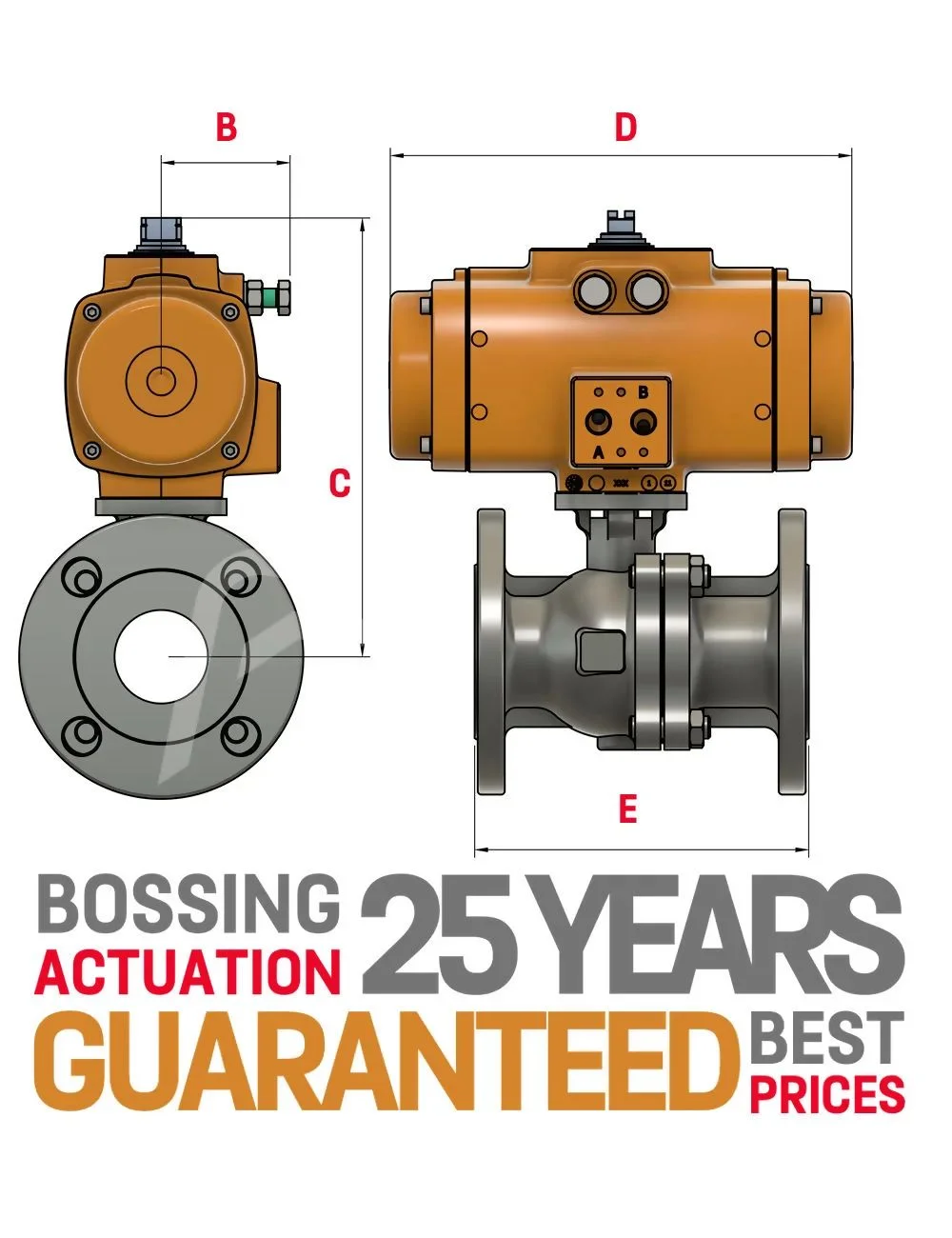

Flanged PN16 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 48.00 159.00 166.00 115.00 33.00 128.00 103.00 115.00
3/4" 48.00 164.00 166.00 120.00 48.00 164.00 166.00 120.00
1" 58.00 191.00 192.00 125.00 48.00 170.00 166.00 125.00
1 1/4" 58.00 203.00 192.00 130.00 58.00 203.00 192.00 130.00
1 1/2" 69.00 220.00 217.00 140.00 58.00 208.00 192.00 140.00
2" 69.00 236.00 247.00 150.00 69.00 229.00 217.00 150.00
2 1/2" 75.00 279.00 304.00 170.00 69.00 253.00 247.00 170.00
3" 87.00 295.00 362.00 180.00 75.00 289.00 235.00 180.00
4" 109.00 361.00 385.00 190.00 87.00 323.00 265.00 190.00
5" 109.00 404.00 385.00 325.00 87.00 366.00 265.00 325.00
6" 131.00 502.00 658.00 350.00 132.00 482.00 356.00 350.00
8" 130.00 585.00 732.00 400.00 131.00 551.00 400.00 400.00
10" TBA TBA TBA TBA TBA TBA TBA TBA

Right Column Header

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1V
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
