ANSI150 Carbon Steel Hytork Pneumatic Actuator Valves

The BV-L61C0-XL is a 2-piece full bore flanged actuated ball valve available in sizes ranging from 1/2" to 6". We offer next-day delivery for your convenience. This flanged valve body is designed for easy installation between two pipeline flanges and is suitable for end-of-line service, providing reliable shut-off performance. Our BV-L60-C actuated ball valve features TFM 1600 seats, which are WRAS and FDA certified materials, ensuring compliance with quality and safety standards. Additionally, the valve is equipped with an ISO 5211 Direct Mounting Pad, allowing for actuation without the need for a mounting bracket. This feature streamlines assembly and testing procedures, ensuring prompt processing immediately after placing your order. Choose the BV-L61C0-XL for efficient and reliable fluid control solutions in various industrial applications. Order now for quick delivery and peace of mind.
Shop Help Me

Key Features

Key features and benefits of the BV-L61C0-XL Actuated Ball Valves.
1

Key Features

Perfect for frequent on/off applications such as material handling equipment (MHE), our Hytork actuators boast an impressive cycle life expectancy. These SIL-rated actuators have been tested for several million cycles, ensuring reliability and efficiency.
2

Key Features

The Hytork XL range offers unparalleled quality at competitive prices. Its user-friendly design ensures easy installation and operation, without the need for specialized tools. We also provide robust warranties for standard operational use.
3

Key Features

Experience enhanced precision with our pneumatically actuated rack and pinion system, which outperforms traditional designs and reduces wear on components, prolonging their lifespan. Get in touch for more details on how our solutions can elevate your application's performance!

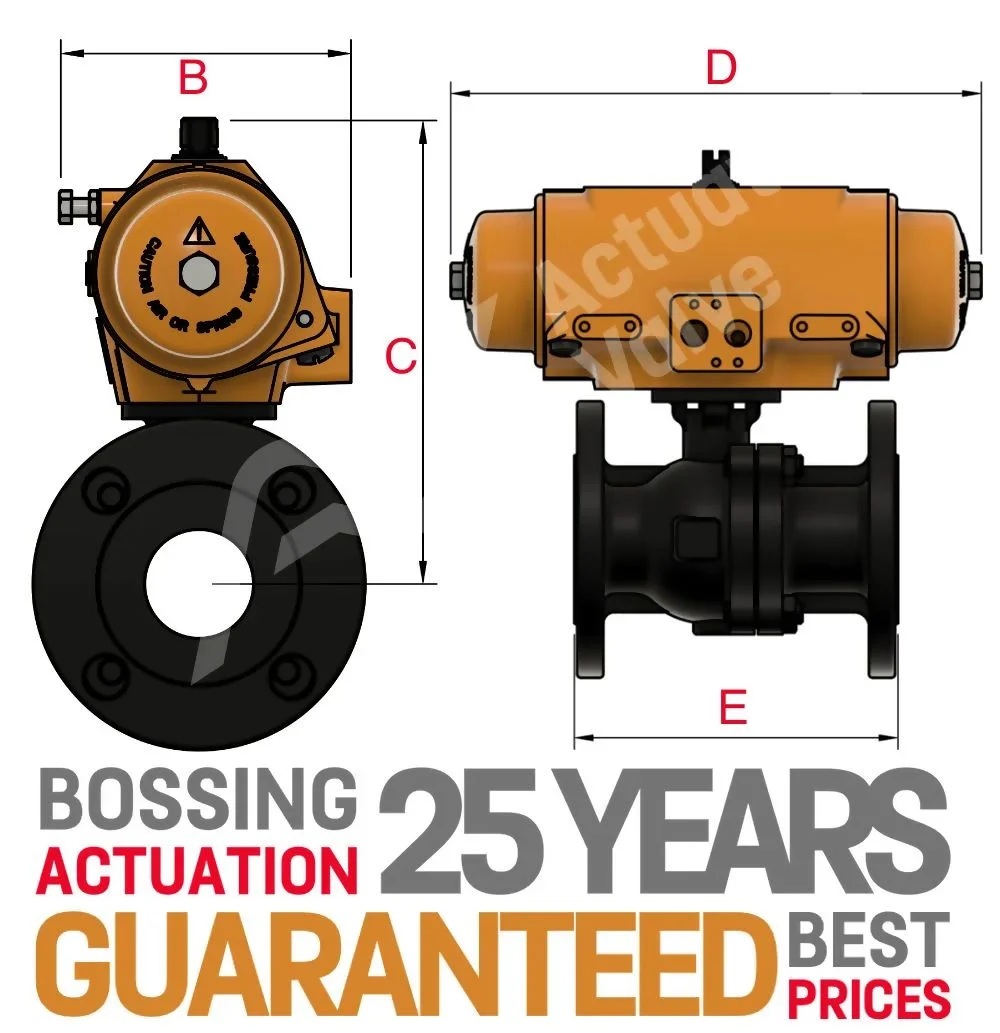

BV-L61C0-XL Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00VV
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

BV-L61C0-XL Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
