3-Way BSPP FB SS Koei UNIC Electric Actuated Ball Valves

Three-Way Ball Valves, available in both L Port and T Port configurations, are suited for heating and hot water systems to manage temperature. These valves are designed to direct the flow of liquids, enabling either a unidirectional flow or a diversion from one pathway to another. The BV-L5300 & 5400 Full Bore Multiport 3-Way Ball Valve, a leader in its field, is tailored for small to medium-sized control systems, offering reduced torque. This feature aids in cutting costs and enhancing performance through seamless valve operation. Specifically crafted for continuous process applications where frequent start/stop actions could harm traditional motorised actuators, the UNIC Electric Actuator from Koei Industry optimises productivity and minimises expenses.

Key Features

Key features and benefits of BV-L5300EK & BV-L5400EK Actuated Ball Valves.
1

Key Features

The BV-L5300 & 5400 Full Bore 3-Way Ball Valve is ideal for Screwed connections, featuring a stainless steel body that accommodates either an L or T drilled ball. The L port valve has a 90-degree drilling on two sides, forming an L shape, while the T configuration includes a straight-through hole.
2

Key Features

The Koei UNIC electric actuator delivers unparalleled performance in its category, offering long-lasting precision control. This actuator is a versatile replacement for pneumatic actuators, providing cost savings without sacrificing quality or efficiency.
3

Key Features

Additionally, the Koei UNIC Electric Actuator is equipped with several safety features. These include a user-friendly Allen Key Manual Override, an overload protection system, and an end-of-travel electric stop for critical situations.

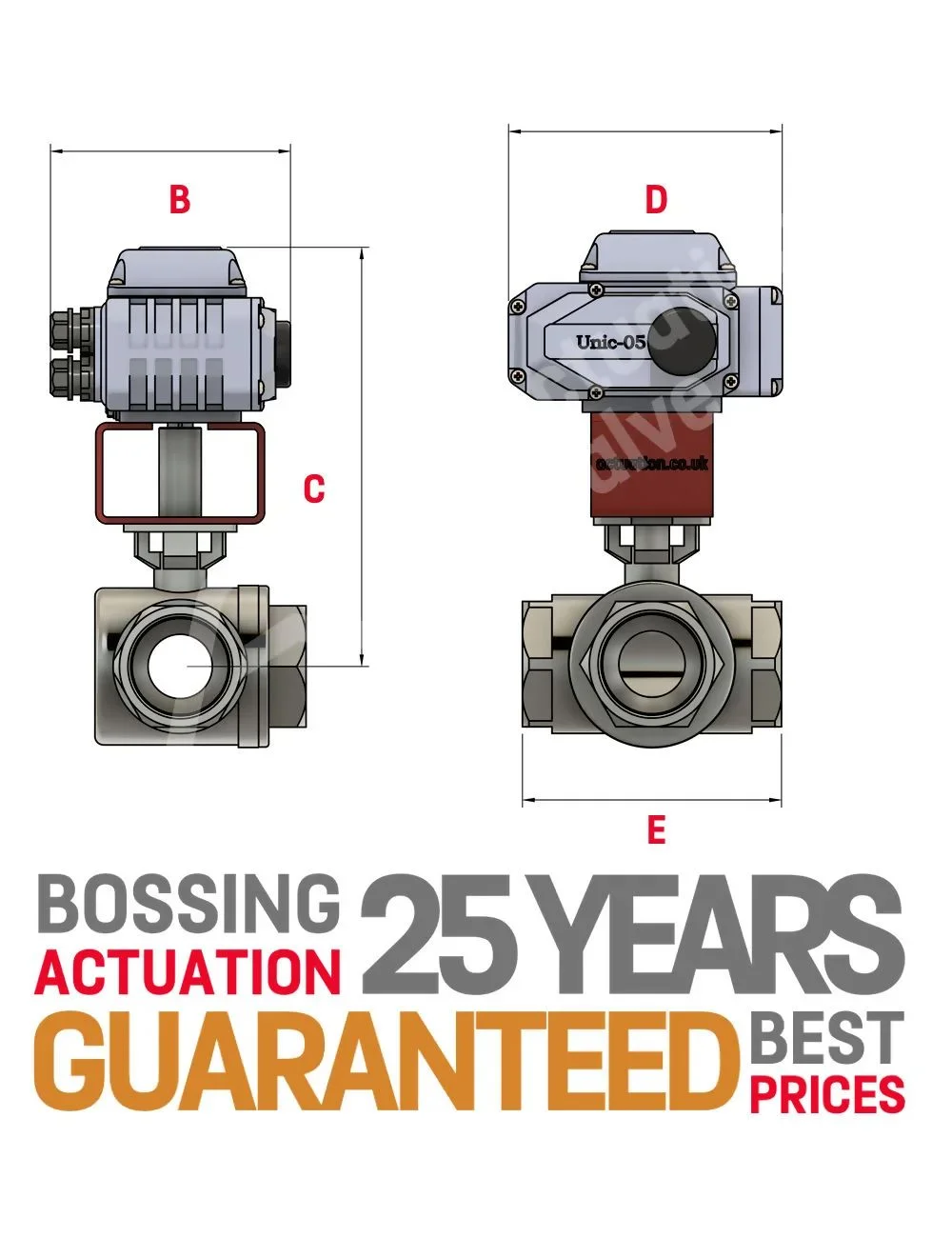

FB 3-Way Ball Valve Technical Stuff

B C D E Model
1/4" 145.00 219.00 159.00 79.00 UNIC 05
3/8" 145.00 219.00 159.00 79.00 UNIC 05
1/2" 145.00 225.00 159.00 88.00 UNIC 05
3/4" 145.00 235.50 159.00 108.00 UNIC 05
1" 145.00 239.00 159.00 124.00 UNIC 05
1 1/4" 145.00 249.50 159.00 135.00 UNIC 05
1 1/2" 155.00 284.80 208.00 164.00 UNIC 10
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

FB 3-Way Ball Valve 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
