2 Piece Wras Approved Electric Koei Unic Valves

The BV-L4500EK two-piece full bore brass ball valve provides a compact and economical actuated valve option for screwed and threaded pipelines, also holding WRAS approval for use with potable drinking water. The inclusion of an ISO 5211 mounting pad enables swift actuation using our stock stainless steel mounting brackets, allowing for immediate processing of all assembly and testing procedures once your order is placed. We offer express shipping, ensuring delivery of stock components within 24-48 hours. Additionally, WRAS approval certificates are included with all assemblies at no additional charge.
Shop Help Me

Key Features

Key features and benefits of BV-L4500EK Actuated Ball Valves.
1

Key Features

The Koei UNIC Series is engineered for 100% continuous operation and its reliability has been affirmed by numerous customers globally. Constructed from premium quality materials, our electric actuators are built for durability.
2

Key Features

Our ball valves have undergone rigorous testing by accredited laboratories, confirming their compliance with all UK safety standards. Specifically, the BV-L4500 is tailored to meet all requirements for WRAS approval, making it an excellent choice for commercial or industrial settings.
3

Key Features

Featuring a compact design, the Koei UNIC Worm Type Final Gear boasts a high power-to-weight ratio, outstanding load capacity, and proven reliability, rendering it ideal for a variety of industrial automation system applications. Additionally, the actuator is designed for an extended service life.

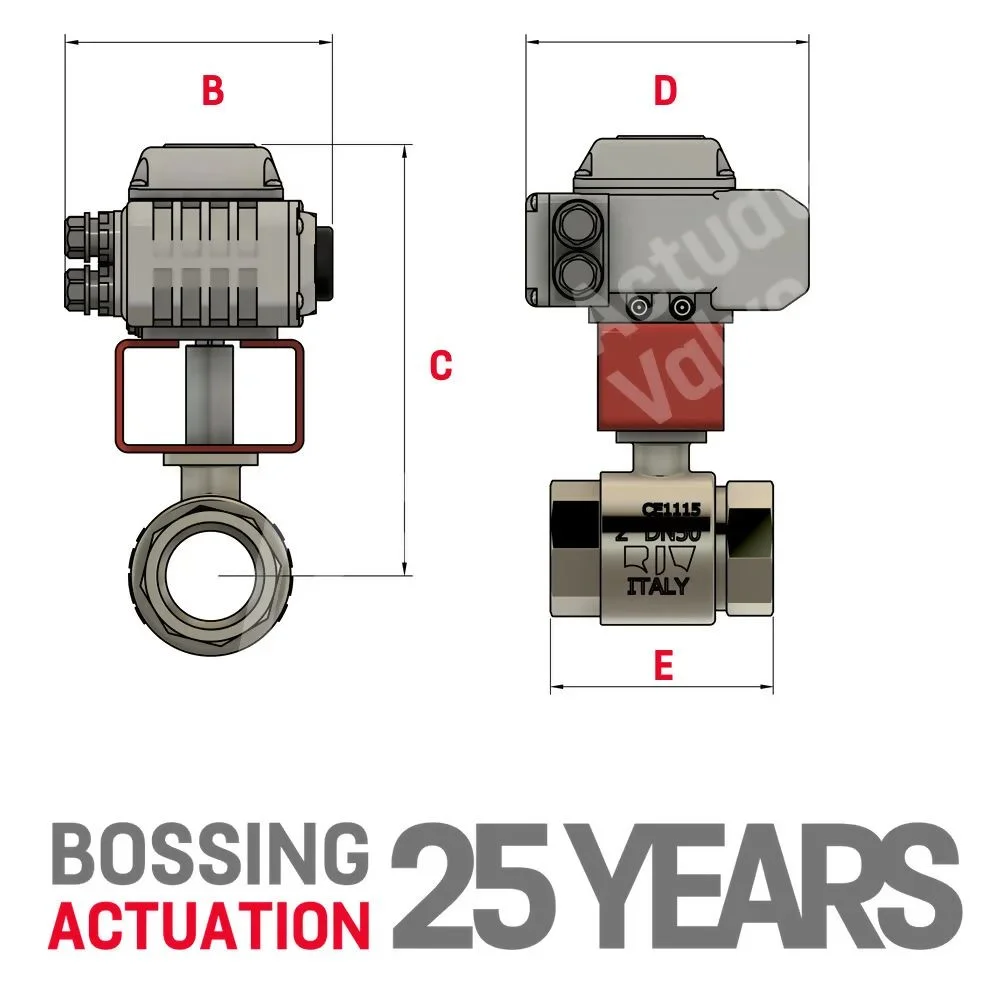

BV-L4500AV Ball Valve Technical Stuff

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 176.00 145.00 159.00 59.00 UNIC-05
3/4" 176.00 145.00 159.00 69.00 UNIC-05
1" 176.00 145.00 159.00 83.00 UNIC-05
1 1/4" 176.00 145.00 159.00 94.00 UNIC-05
1 1/2" 176.00 145.00 159.00 102.00 UNIC-05
2" 176.00 145.00 159.00 124.00 UNIC-05
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA

BV-L4500AV Ball Valve 3D Stuff

Wras Approved Actuated Ball Valves

WRAS approval is a mandatory requirement for any product that connects to or receives water from the public mains in the United Kingdom. This approval serves as evidence that our products have undergone testing by an independent body to ensure they meet all the necessary standards and requirements established by the government. The BV4500 is a Ball Valve that has received WRAS approval and is suitable for use with drinking water.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: Brass CW 617 N
Seats Material: PTFE
Shaft Material: Brass CW 614 N
O-Rings Material: Viton
Ball Material: Brass CW 617 N
Approvals: Wras approved
Mounting: ISO 5211 Connection
End Connections: BSPP
Pressure Rating: PN40

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Stuff

  • PDF
Brochures

Koei UNIC
  • PDF
Certificates & Approvals

CE Declaration
  • PDF
Certificates & Approvals

Nema UL
  • PDF
Operations

AC Actuators
  • PDF
Operations

DC Actuators
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
