2 Piece Premium Electric Koei Unic Actuated Ball Valves

The BV-L2000EK stainless steel actuated ball valve offers a full bore process flow in a compact, two-piece body design. This valve, featuring threaded end connections, is not only lightweight and easy to install but also comes with SIL approval (applicable to the valve only) to assure long-term, reliable shut-off performance. The integration of an ISO 5211 mounting pad facilitates the valve's actuation without needing a mounting bracket, enabling immediate assembly and testing following your order placement. We also provide express shipping, ensuring delivery of stock components within 24-48 hours.
Shop Help Me

Key Features

Key features and benefits of BV-L2000EK Actuated Ball Valves.
1

Key Features

This innovative new product boasts straightforward installation and maintenance, while delivering enhanced reliability compared to conventional hydraulic solutions. Its compact size makes it an ideal choice for tight spaces or areas where room is at a premium.
2

Key Features

The BV-L2000 is a robust ball valve, specifically engineered for use in harsh conditions involving oil-based paints and coatings. It features a stainless steel build, silicone-free seals, self-aligning seats, and a design that requires minimal maintenance.
3

Key Features

The Koei UNIC electric actuator represents an optimal actuation solution for those seeking a cost-effective alternative. It requires no maintenance and is easy to operate. The total cost of ownership could be up to 50% lower than that of other actuators available in the market.

BV-L2000EK Ball Valve Technical Stuff

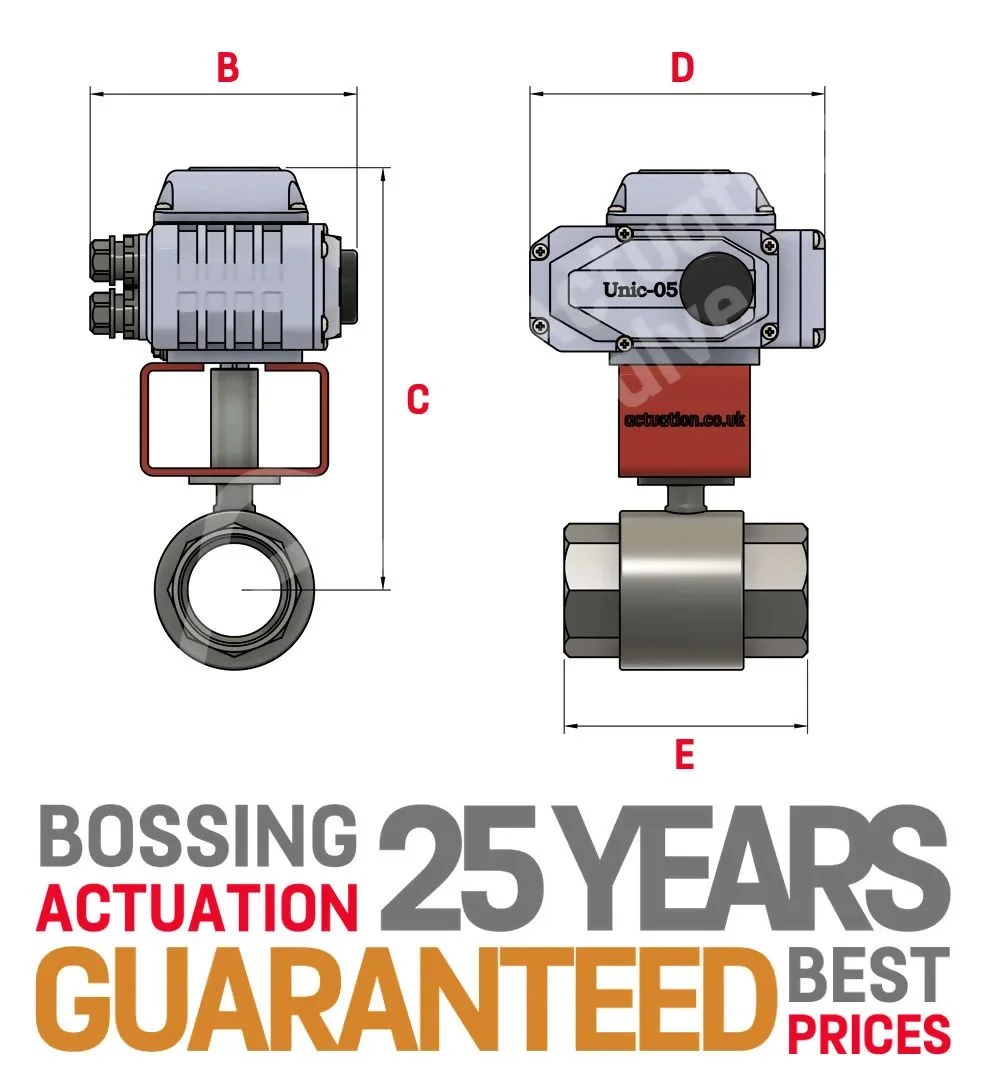

B C D E Model
1/4" 145.00 218.50 159.00 67.00 UNIC 05
3/8" 145.00 218.50 159.00 67.00 UNIC 05
1/2" 145.00 218.50 159.00 67.00 UNIC 05
3/4" 145.00 225.00 159.00 70.40 UNIC 05
1" 145.00 234.00 159.00 85.00 UNIC 05
1 1/4" 145.00 238.50 159.00 94.00 UNIC 05
1 1/2" 145.00 247.50 159.00 105.00 UNIC 05
2" 145.00 254.50 159.00 125.00 UNIC 05
2 1/2" 155.00 302.00 208.00 155.00 UNIC 10
3" 155.00 311.00 208.00 173.00 UNIC 10
4" TBA TBA TBA TBA TBA

BV-L2000EK Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10
BSP Ends: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
Brochures

Koei UNIC
  • PDF
Certificates & Approvals

CE Declaration
  • PDF
Certificates & Approvals

Nema UL
  • PDF
Operations

AC Actuators
  • PDF
Operations

DC Actuators
