Get fast delivery of a compact, affordable actuated ball valve for potable water lines with the BV4500EL. This 2-piece, full bore brass valve with ISO 5211 pad ships in 24-48 hours and mounts directly to your actuator, ready for immediate installation and testing. WRAS-approved for drinking water applications. Save on additional brackets and assembly time. All certification paperwork included at no extra cost with your order. With express shipping, you'll have this economic solution to automate your threaded pipelines in just 1-2 days.

Shop Help Me

Key features and benefits of BV-L4500EL Actuated Ball Valves.

Key Features

The EL-O-Matic Pneumatic Actuator is equipped with a robust steel piston and incorporates high-quality materials, ensuring resilience against moisture, dust, or dirt exposure. This feature makes the product well-suited for outdoor use and harsh industrial settings where water spray may be a factor.

Key Features

Utilising Wras Ball Valves ensures compliance with current legislation for drinking water applications, helping you avoid fines imposed by local authorities. Additionally, it prioritizes the safety of both customers and end users.

Key Features

EL-O-Matic's pneumatic actuators are meticulously designed with a focus on the highest standards of quality and safety. TÜV SÜD, a globally recognised testing company, has conducted thorough tests to guarantee that the actuator meets all the necessary requirements for secure operation.

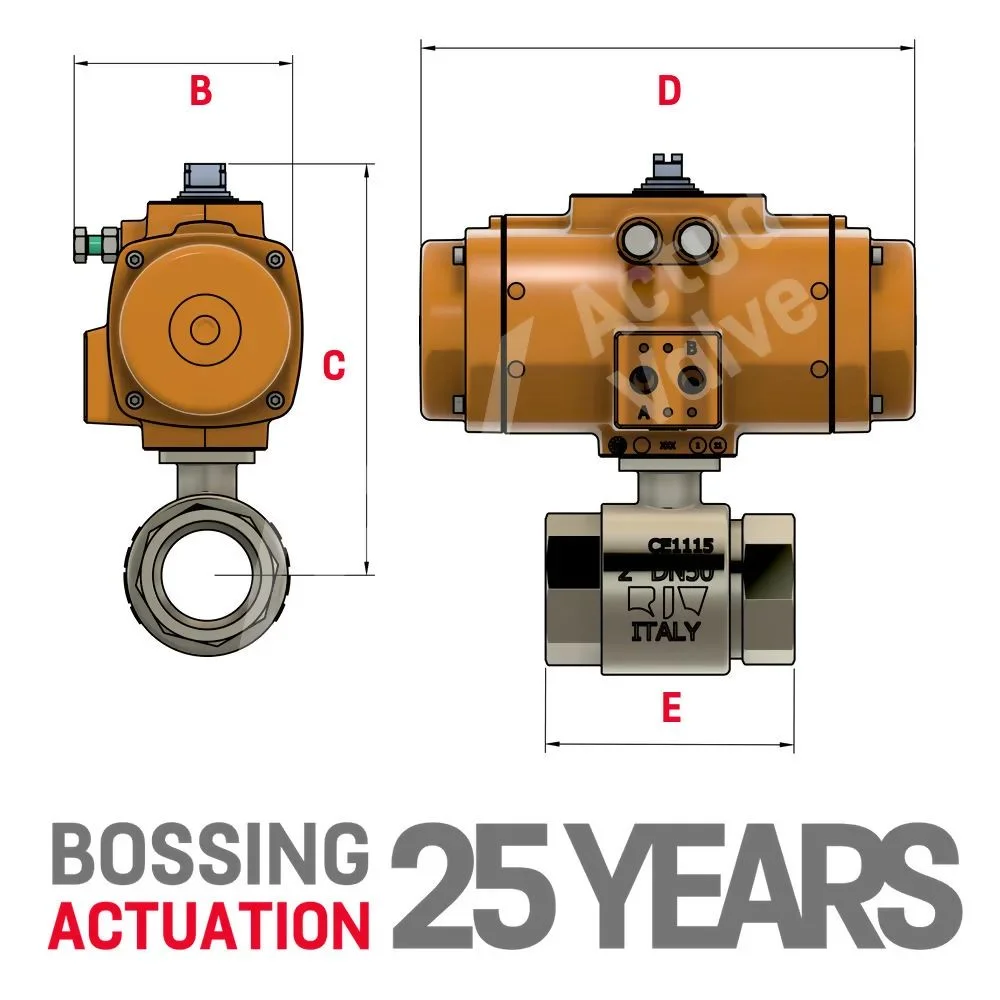

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	83.00	142.00	166.00	60.00	111.00	103.00	59.00
3/4"	83.00	148.00	166.00	60.00	127.00	103.00	69.00
1"	83.00	152.00	166.00	83.00	152.00	166.00	83.00
1 1/4"	96.00	178.50	192.00	83.00	157.50	166.00	94.00
1 1/2"	104.00	202.00	217.00	96.00	190.00	192.00	102.00
2"	104.00	209.50	217.00	96.00	197.50	192.00	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

WRAS approval is a mandatory requirement for any product that connects to or receives water from the public mains in the United Kingdom. This approval serves as evidence that our products have undergone testing by an independent body to ensure they meet all the necessary standards and requirements established by the government. The AV4500 is a Ball Valve that has received WRAS approval and is suitable for use with drinking water.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	Brass CW 617 N
Seats Material:	PTFE
Shaft Material:	Brass CW 614 N
O-Rings Material:	Viton
Ball Material:	Brass CW 617 N
Approvals:	Wras approved
Mounting:	ISO 5211 Connection
End Connections:	BSPP
Pressure Rating:	PN40

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Brochures

CERTIFICATES & APPROVALS

Elomatic Actuator Videos

Elomatic Overview

DRAWINGS & SCHEMATICS

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.

DRAWINGS & SCHEMATICS

Please feel free to request information and advice using the form below or call us on 0151 547 1221

2 Piece Premium Elomatic Air Actuated Wras Ball Valves

UK 24/48 Hour	£12.00
UK Saturday	£34.00
N. Ireland	£28.00
Insurance	£7.95
Full Details

2 Piece Wras Approved Elomatic Full Bore Valves

Key Features

Key Features

Key Features

Key Features

BV-L4500EL Ball Valve Technical Stuff

BV-L4500EL Ball Valve 3D Stuff

Wras Approved Actuated Ball Valves

SMALL Actuator DA

0012

0025

0040

0065

0100

0150

SMALL Actuator SR

0012

0025

0040

0065

0100

0150

Need More Dimensions?

Valve Standards & Stuff

FAQs

4-20mA Control Available On This Product

Actuator Stuff

F-Series Elomatic

SIL

ATEX

Safety Manual

Declaration Of Conformity

Attestation Of Conformity

Elomatic Actuator Videos

BIG Actuator DA

0200

0350

0600

0950

1600

2500

TopWorx Limit Switch Box

BIG Actuator SR

0200

0350

0600

0950

1600

2500

2 Piece Premium Elomatic Air Actuated Wras Ball Valves
