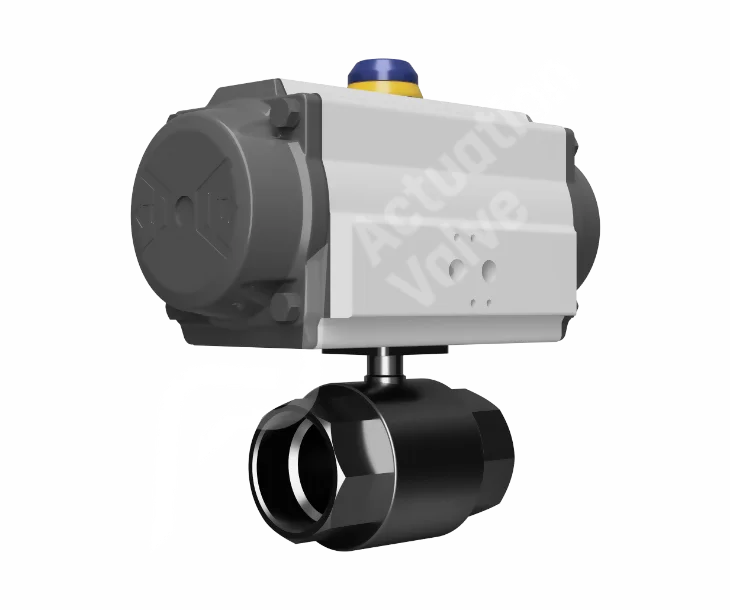

2 Piece Wras Approved Air Torque Actuated Valves

The BV-L4500AT two-piece full bore brass ball valve provides a compact and cost-effective solution for automating valves in screwed and threaded pipelines. It is also approved by WRAS for use with safe drinking water. The presence of an ISO 5211 mounting pad enables us to automate the valve without requiring a separate mounting bracket. This means that assembly and testing can commence immediately after you place your order, and we offer express shipping for delivery within 48 hours for in-stock components.
Shop Help Me

Key Features

Key features and benefits of BV-L4500AT Actuated Ball Valves.
1

Key Features

Air Torque has developed a pneumatic actuator that enables reverse operation without the need for sending it back to the manufacturer or using extra hardware. End users can carry out this operation in the field, and they also have the option to switch between spring return and double-acting configurations as needed.
2

Key Features

The Air Torque Pneumatic Actuator provides a straightforward yet efficient solution that demands minimal maintenance, making it well-suited for extended, heavy-duty use in any industry. Its lightweight construction also facilitates easy installation.
3

Key Features

We assemble and test all our products in-house to maintain full control and ensure that you receive a high-quality, long-lasting product. Each of our products is accompanied by a two-page test report that comprehensively outlines every aspect of its operation, including opening and closing times as well as pressure ratings.

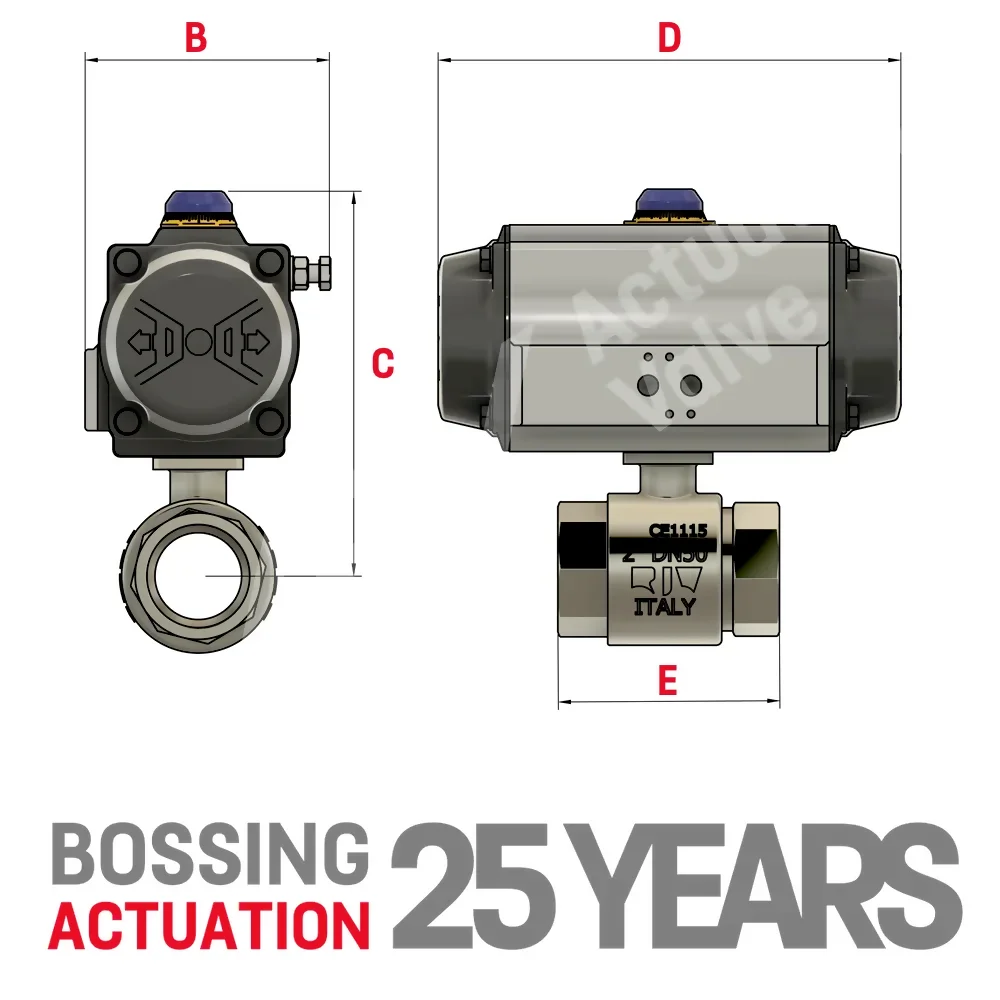

BV-L4500AT Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 137.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 137.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 137.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 203.50 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 203.50 180.00 203.50 84.50 163.00 153.50 102.00
2" 153.50 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

BV-L4500AT Ball Valve 3D Stuff

Wras Approved Actuated Ball Valves

WRAS approval is a mandatory requirement for any product that connects to or receives water from the public mains in the United Kingdom. This approval serves as evidence that our products have undergone testing by an independent body to ensure they meet all the necessary standards and requirements established by the government. The BV4500 is a Ball Valve that has received WRAS approval and is suitable for use with drinking water.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT451
  • Document
DRAWINGS & SCHEMATICS

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • PDF
DRAWINGS & SCHEMATICS

AT601
  • PDF
DRAWINGS & SCHEMATICS

AT651
  • PDF
DRAWINGS & SCHEMATICS

AT701

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: Brass CW 617 N
Seats Material: PTFE
Shaft Material: Brass CW 614 N
O-Rings Material: Viton
Ball Material: Brass CW 617 N
Approvals: Wras approved
Mounting: ISO 5211 Connection
End Connections: BSPP
Pressure Rating: PN40

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SAFETY MANUAL
  • PDF
CERTIFICATES & APPROVALS

BUREAU VERITAS
