3 Piece Premium Electric Koei Actuated Ball Valves

The BV-L3000EK, 3100EK, and 3200EK actuated ball valves are integral to Actuation Valve's range of 3 piece stainless steel standard valves. These units feature a dropout centre section that can be fully maintained without the necessity of complete valve removal, making them ideal for routine maintenance and seat replacements. They come with various certifications, including FDA and WRAS approved seats, as well as DNV/Lloyds certifications. Additionally, provided free of charge are a Certificate of Conformity and a detailed two-page assembly and Calibration Certificate. Each unit is assembled and tested in-house before dispatch.
Shop Help Me

Key Features

Key features and benefits of BV-L3000EK, BV-L3100EK & BV-L3200EK Actuated Ball Valves.
1

Key Features

As one of the most sophisticated electric actuators globally, it's designed for swift and straightforward installation. Each unit is accompanied by a comprehensive operations manual detailing everything necessary about the equipment, complemented by complimentary post-sale support from our expert team.
2

Key Features

The latest UNIC series of electric actuators from Koei is engineered for continuous 100% operation. Being electrically powered, they eliminate the risk of downtime associated with maintenance issues commonly found in systems reliant on compressed air, such as compressors.
3

Key Features

The innovative three-piece design of the actuator aids in preventing damage that might occur during incorrect disassembly when changing seals or other components within the valve body. This design also enables users to replace individual components without the need to substitute the entire valve assembly.

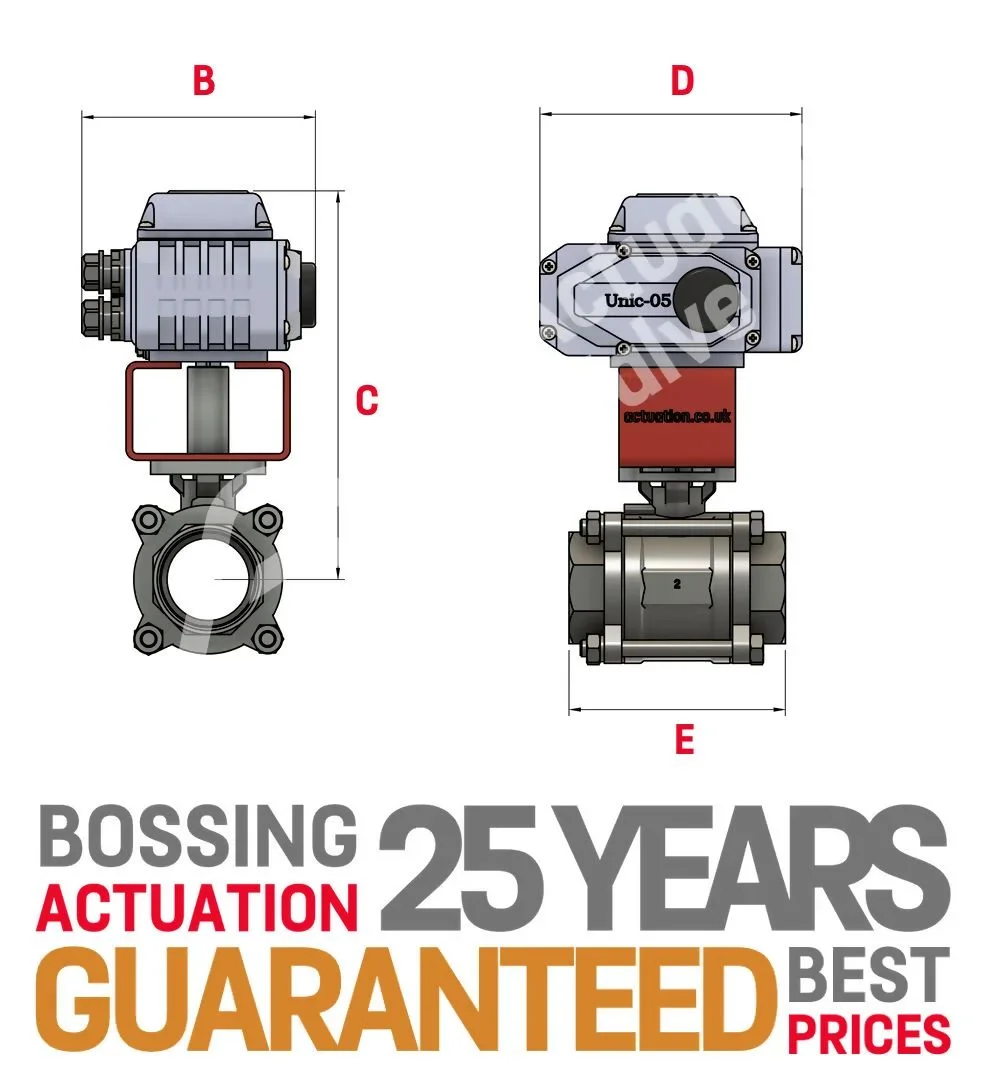

Screwed/Socket Weld Technical Stuff

B C D E Model
1/4" 145.00 218.00 159.00 75.00 UNIC 05
3/8" 145.00 218.00 159.00 75.00 UNIC 05
1/2" 145.00 218.00 159.00 75.00 UNIC 05
3/4" 145.00 224.50 159.00 80.00 UNIC 05
1" 145.00 234.50 159.00 90.00 UNIC 05
1 1/4" 145.00 239.00 159.00 110.00 UNIC 05
1 1/2" 145.00 247.00 159.00 120.00 UNIC 05
2" 145.00 254.20 159.00 140.00 UNIC 05
2 1/2" 155.00 302.00 208.00 185.00 UNIC 10
3" 155.00 310.50 208.00 205.00 UNIC 10
4" 187.00 350.00 257.00 240.00 UNIC 20

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Stuff

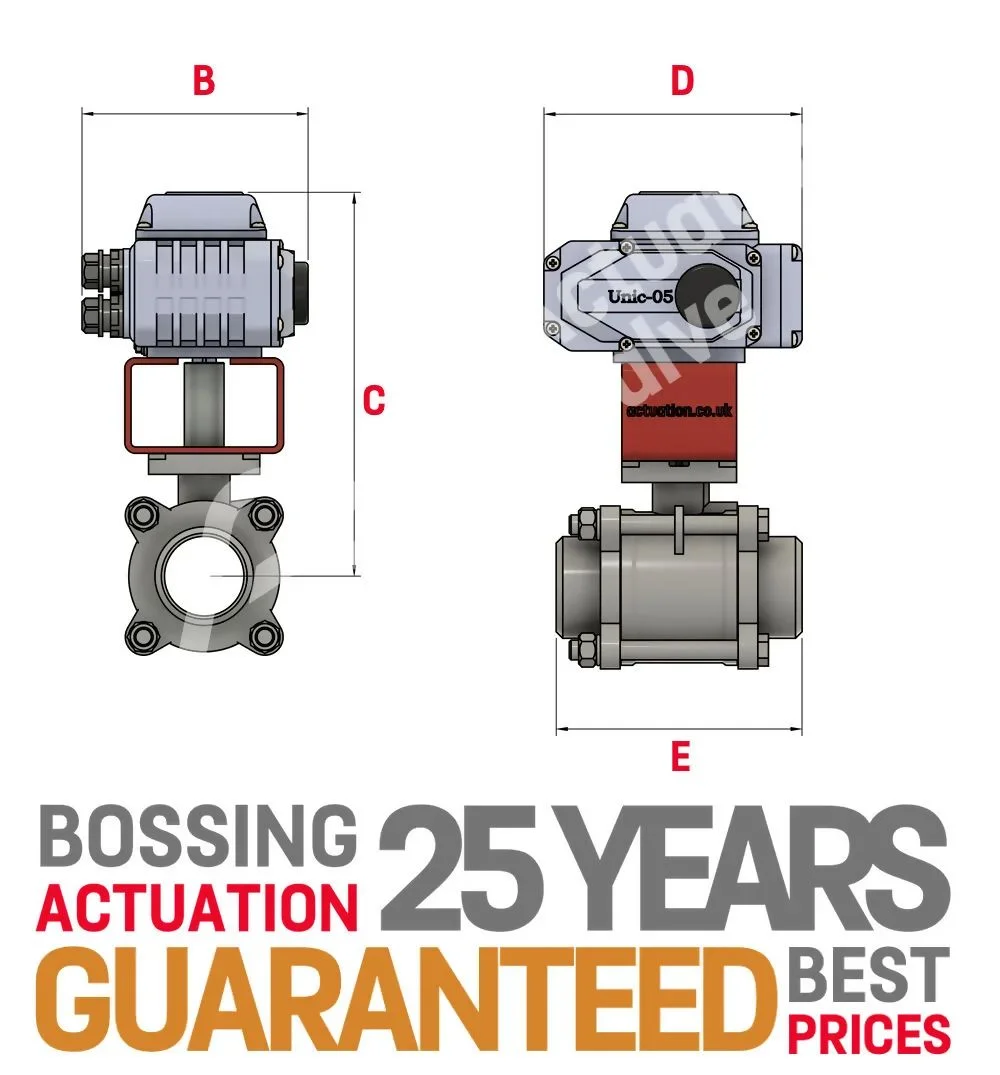

Butt Weld Valve Technical Stuff

B C D E Model
1/4" 145.00 218.00 159.00 70.00 UNIC 05
3/8" 145.00 218.00 159.00 70.00 UNIC 05
1/2" 145.00 176.50 159.00 75.00 UNIC 05
3/4" 145.00 224.50 159.00 90.00 UNIC 05
1" 145.00 224.50 159.00 100.00 UNIC 05
1 1/4" 145.00 239.00 159.00 110.00 UNIC 05
1 1/2" 145.00 247.30 159.00 125.00 UNIC 05
2" 145.00 254.20 159.00 150.00 UNIC 05
2 1/2" 155.00 302.00 208.00 190.00 UNIC 10
3" 155.00 310.50 208.00 220.00 UNIC 10
4" 187.00 350.00 257.00 270.00 UNIC 20

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
Brochures

Koei UNIC
  • PDF
Certificates & Approvals

CE Declaration
  • PDF
Certificates & Approvals

Nema UL
  • PDF
Operations

AC Actuators
  • PDF
Operations

DC Actuators
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3 Piece Premium Koei Electric Actuated Ball Valves
