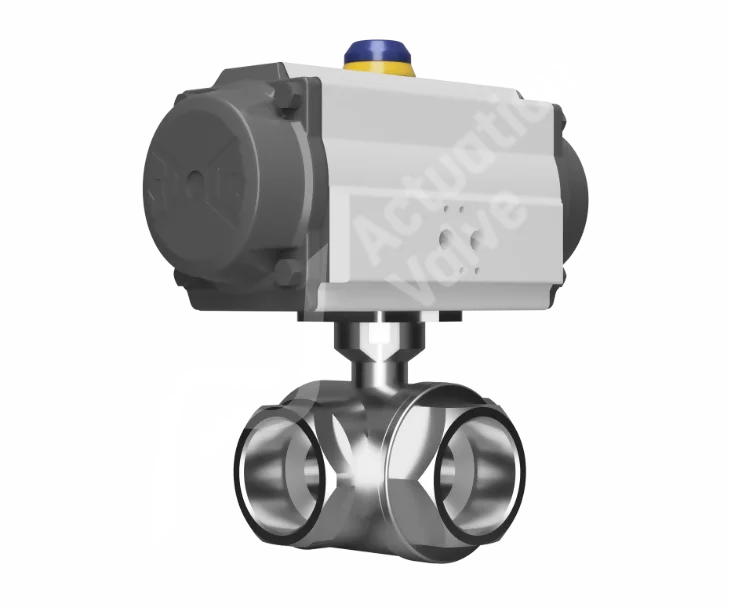

The BV-L5300AT and BV-L5400AT ball valves are equipped with L&T ports, providing a complete solution for diverting flow in 90 and 180-degree operations. With a pressure rating of 1000 PSI, these valves are suitable for a wide range of industrial applications and processes, boasting TUV-approved castings. Optional features include pilot-operated solenoid valves and limit position feedback, catering to both safe areas and full ATEX zones. Air Torque SpA, a manufacturer with a legacy dating back to 1982, produces air actuators that find applications across various industrial sectors such as automotive, energy production, and pharmaceuticals. Their user-friendly, high-quality products are effortless to install. Additionally, manual gearbox overrides can be added to any air actuated ball valve for added versatility.

Shop Help Me

Key features and benefits of BV-L5300AT & BV-L5400AT Actuated Ball Valves.

Key Features

The Stainless Steel 3-Way Ball Valve is not only affordable for residential use but also robust enough for commercial applications. It's constructed from high-quality materials designed to endure for many years, without the excessive wear often observed in valves from some other manufacturers.

Key Features

For safety or security considerations, the Air Torque actuator can be supplied with a permanent lockout capability from the manufacturer. This feature has gained popularity in numerous actuated valve applications and incorporates a custom design to prevent unintended operation.

Key Features

Air Torque SpA has been producing air actuators since 1982, and their products are utilised across various industrial sectors, encompassing automotive, energy production, and pharmaceuticals. Their products are of exceptional quality, making them straightforward to install and operate.

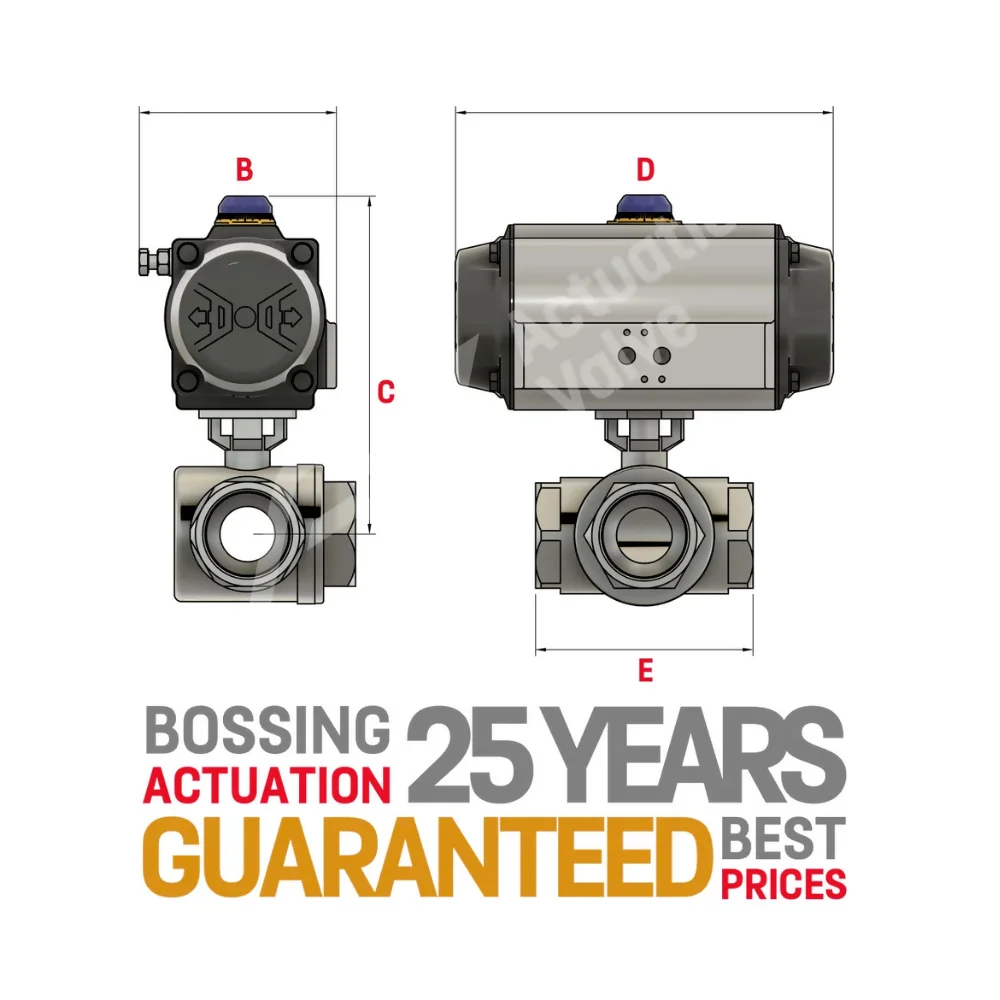

	B	C	D	B	C	D	E
	SR	SR	DA	DA	DA	DA	SR/DA

1/4"	72.00	132.00	137.00	72.00	132.00	137.00	79.00
3/8"	72.00	132.00	137.00	72.00	132.00	137.00	79.00
1/2"	72.00	132.00	137.00	72.00	132.00	137.00	79.00
3/4"	84.50	154.00	153.50	72.00	138.00	137.00	88.00
1"	93.00	181.50	203.50	72.00	148.50	137.00	108.00
1 1/4"	93.00	185.00	203.50	84.50	168.00	153.50	124.00
1 1/2"	106.00	208.50	241.00	84.50	178.50	153.50	135.00
2"	118.50	229.80	259.00	93.00	204.80	203.50	164.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 7-1

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Air Torque Actuator Videos

Aluminium

Stainless Steel

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
