3-Way Full Bore BSP-NPT Actuated Hytork Ball Valves

The BV-L5300XL and BV-L5400XL, featuring L and T port full bore actuated ball valves, deliver a comprehensive flow diversion solution suitable for both 90 and 180-degree operations, boasting a robust 1000 PSI pressure rating that accommodates a wide range of process and industrial applications. These valves come with TUV-approved castings, offering additional choices such as pilot-operated solenoid valves and limit position feedback suitable for safe areas and full ATEX zones. You can also opt for gearbox manual overrides on all air actuated ball valves. Engineered to provide top-notch quality at the most competitive price point in the current market, the Hytork XL product ensures effortless installation and operation without the need for specialised tools. Plus, we offer competitive warranties for standard operational use.
Shop Help Me

Key Features

Key features and benefits of BV-L5300XL & BV-L5400XL Actuated Ball Valves.
1

Key Features

Hytork's Pneumatic Actuator stands out in the market due to its innovative design featuring larger rack teeth, which greatly enhances strength and durability compared to competitors' offerings. This robust design instills confidence in our customers regarding the reliability of their equipment.
2

Key Features

Our industrial pneumatic actuator, the Hytork XL, combines a compact form factor with easy installation, ensuring that you do not compromise performance for size. With this efficient solution, you can boost production and profitability while experiencing minimal downtime.
3

Key Features

Introducing the BV-L5300 & 5400 Full Bore, a cost-effective range of stainless steel ball valves that won't strain your budget. These sturdy products offer years of trouble-free operation, delivering exceptional value compared to similar offerings from other companies.

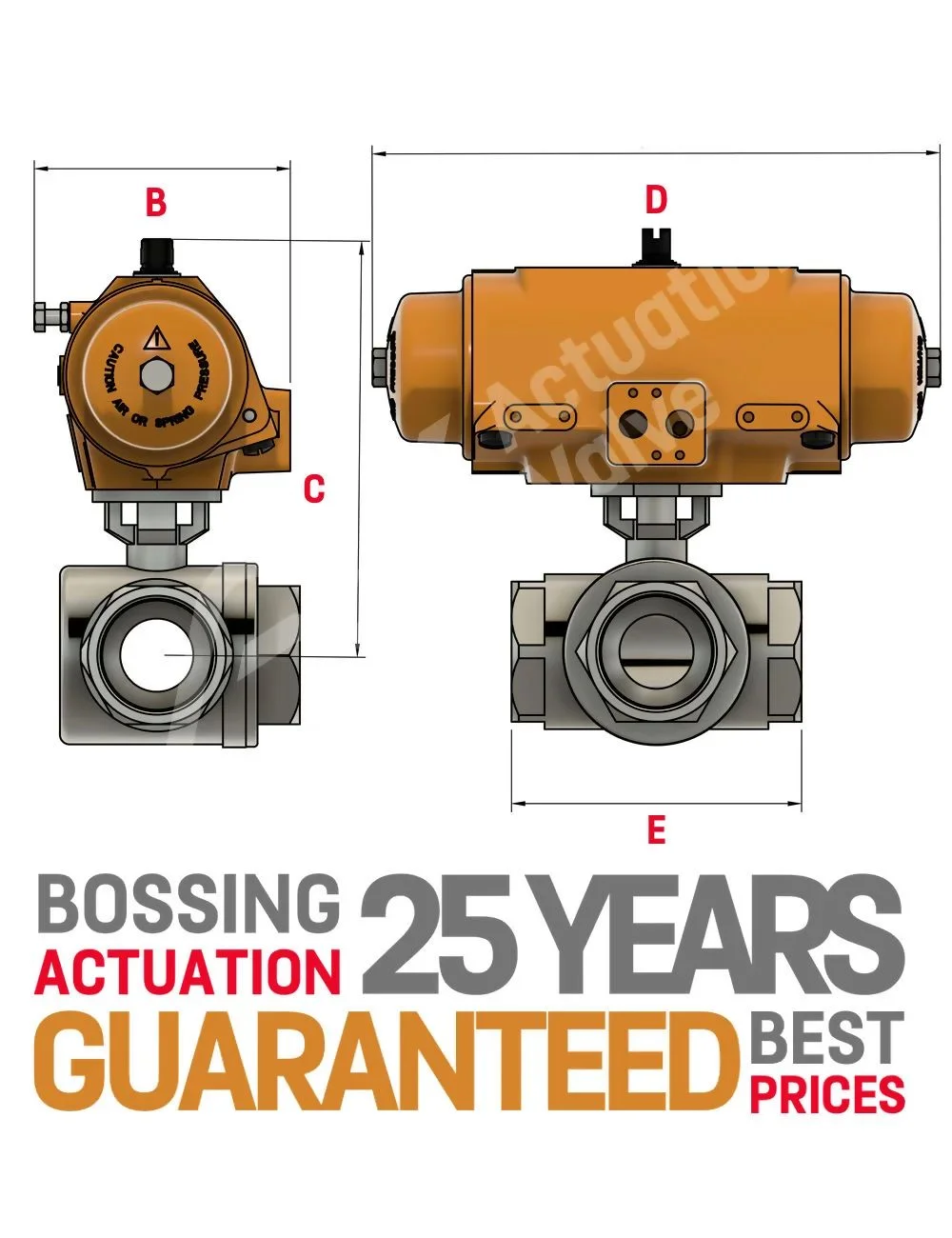

FB 3-Way Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" 97.00 147.50 165.00 97.00 147.50 165.00 79.00
3/8" 97.00 147.50 165.00 97.00 147.50 165.00 79.00
1/2" 116.50 171.40 221.80 116.50 171.40 221.80 88.00
3/4" 116.50 181.90 221.80 116.50 181.90 221.80 108.00
1" 116.50 185.40 221.80 116.50 185.40 221.80 124.00
1 1/4" 116.50 195.20 221.80 116.50 195.90 221.80 135.00
1 1/2" 133.50 221.20 292.00 116.50 205.20 221.80 164.00
2" TBA TBA TBA TBA TBA TBA TBA
2.5" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA

FB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
