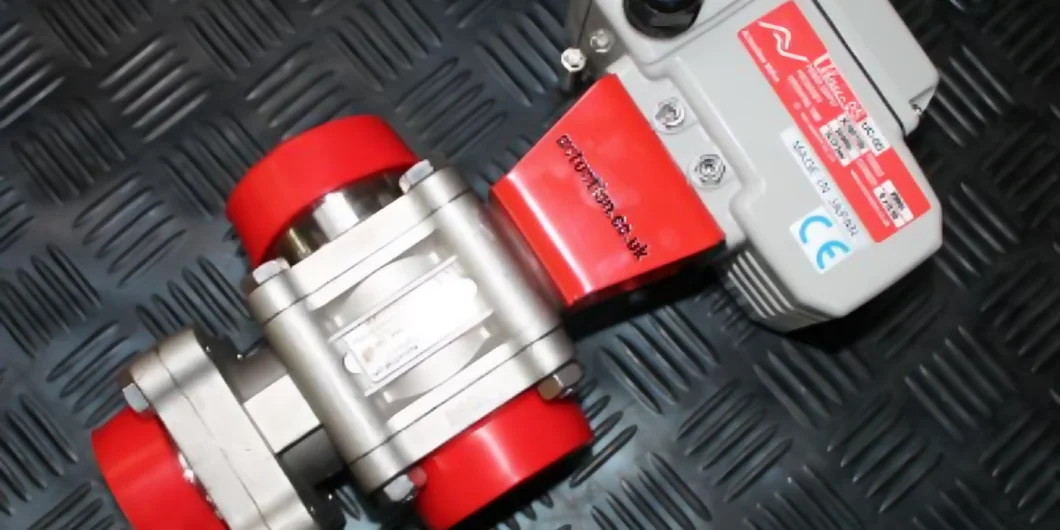

Valpes Actuators Actuated 3-Way RB SS Ball Valves

Valpes Actuators Actuated 3-Way RB SS Ball Valves are renowned for their efficiency and reliability in fluid control systems. The BV-L5000VA & BV-L5100VA, featuring stainless steel construction, offer exceptional durability and corrosion resistance, making them ideal for a wide range of industrial applications. With their innovative 3-way design, they provide versatile flow direction options, ensuring precise control in various piping configurations. The integration of Valpes Actuators enhances the functionality of these ball valves, allowing for automated and accurate control, essential for modern industrial processes. Their compatibility with diverse media types and high-performance standards make them a preferred choice for professionals seeking reliable and effective fluid management solutions.
Shop Help Me

Key Features

Key features and benefits of BV-L5000VA & BV-L5100VA Actuated Ball Valves.
1

Key Features

The electric actuator is designed to operate within a temperature range of -10 °C to +55 °C, ensuring reliable performance in a variety of environmental conditions.
2

Key Features

The electric actuators in the Valpes VR Range boast a sturdy aluminium housing. This material provides excellent strength and resistance to environmental factors, ensuring the longevity and reliability of the actuators in various operating conditions.
3

Key Features

The Valpes VR Range electric actuators are designed to cover a torque range from 25 to 75 Nm. This versatility makes them suitable for a wide array of applications where precise and controlled torque is required for optimal performance.

Range of Actuators

Actuation Valve Testing & Calibration

Every actuated valve assembly undergoes thorough testing and calibration by our skilled team of technical engineers before being packed and shipped. This ensures that upon arrival at your location, the assemblies are installation-ready, allowing for swift resumption of your production operations.

Valpes Actuator Manuals

  • Document
USER MANUAL

ER PLUS
  • Document
USER MANUAL

VR / VS
  • Document
USER MANUAL

DV
  • Document
USER MANUAL

MODBUS-RTU

Valpes Actuator Brochures

  • Document
BROCHURE

ER PLUS
  • Document
BROCHURE

VR / VS
  • Document
BROCHURE

DV
  • Document
BROCHURE

MODBUS-RTU

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

Frequently Asked Questions

What is an Electric Actuated Ball Valve?
An electric actuated ball valve is a valve controlled by an electric motor. It's used to regulate the flow of liquids or gases in a pipeline by rotating a ball with a hole through its center, aligning it with the flow path or blocking it.
How does an Electric Actuated Ball Valve work?
It works by using an electric motor to rotate the ball inside the valve. When the ball's hole is in line with the pipeline, the valve is open and fluid flows through. When rotated perpendicular, the flow is blocked.
What are the advantages of using Electric Actuated Ball Valves?
The main advantages include precise control, remote operation, fast response times, and suitability for high-pressure applications. They are also energy-efficient and require minimal maintenance.
Can Electric Actuated Ball Valves be used for outdoor applications?
Yes, many electric actuated ball valves are designed for outdoor use and are made with materials resistant to weather, corrosion, and harsh environmental conditions.
Are Electric Actuated Ball Valves suitable for high-pressure systems?
Yes, they are often used in high-pressure systems due to their robust construction and ability to provide a tight seal.
How do I select the right Electric Actuated Ball Valve for my system?
Selection depends on factors like the type of fluid, pressure and temperature of the system, valve size, and the specific function required (e.g., on/off control or flow regulation).
What maintenance is required for Electric Actuated Ball Valves?
They typically require minimal maintenance, which may include regular inspection, cleaning, and lubrication. It's essential to follow the manufacturer's guidelines.
Can Electric Actuated Ball Valves be used with any type of fluid?
They are versatile but not universal. Compatibility with specific fluids (like water, oil, or corrosive chemicals) depends on the materials used in the valve's construction.
What are the typical applications of Electric Actuated Ball Valves?
Common applications include water treatment, HVAC systems, industrial processing, and oil and gas pipelines.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Valve Rubber Stamps

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

Electric Actuated Valve Videos

Electric Actuated Valves
Electric Actuated Valves
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3-Way Reduced Bore Stainless Steel Valpes Actuated Ball Valves
