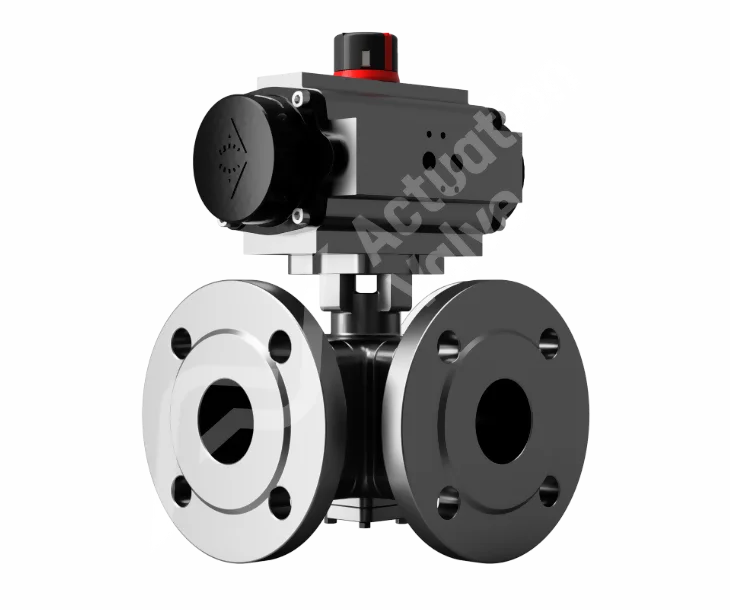

The BV-L5K00 & 5N00 represents an affordable range of top-quality stainless steel ball valves that won't strain your budget. These robust products offer years of trouble-free operation, all at a fraction of the cost of similar items from other companies. Our stainless steel 3-Way ball valves come pre-tested, allowing for immediate installation. Additionally, you will receive a two-page test report detailing all opening and closing times once your order is complete. The Actreg Pneumatic Actuator is easy to install, compact in size, and impressively powerful. It's an ideal choice for applications where space is limited, yet automation requirements are substantial, such as in material handling systems and packaging machines.

Shop Help Me

Key features and benefits of BV-L5K00AC & BV-L5N00AC Actuated Ball Valves.

Key Features

The BV-L5N00 3-Way Multi Port Ball Valves can be configured for either L or T Port operation and are suitable for a wide range of applications. They exhibit low pressure drop, minimal cavitation, and excellent flow properties.

Key Features

The bi-directional travel stops make it simple to adjust the valve stroke, thereby preventing valve failures before their time. Our Pneumatic Actuators are compatible with various standard ancillary components like solenoid valves, position switches, gauges, and pressure regulators.

Key Features

Three-way ball valves provide a range of applications. They can function as diverting valves, redirecting flow to either one or two alternate ports. Additionally, they are suitable for input selectors with an outlet supplied by the flow from a single direction.

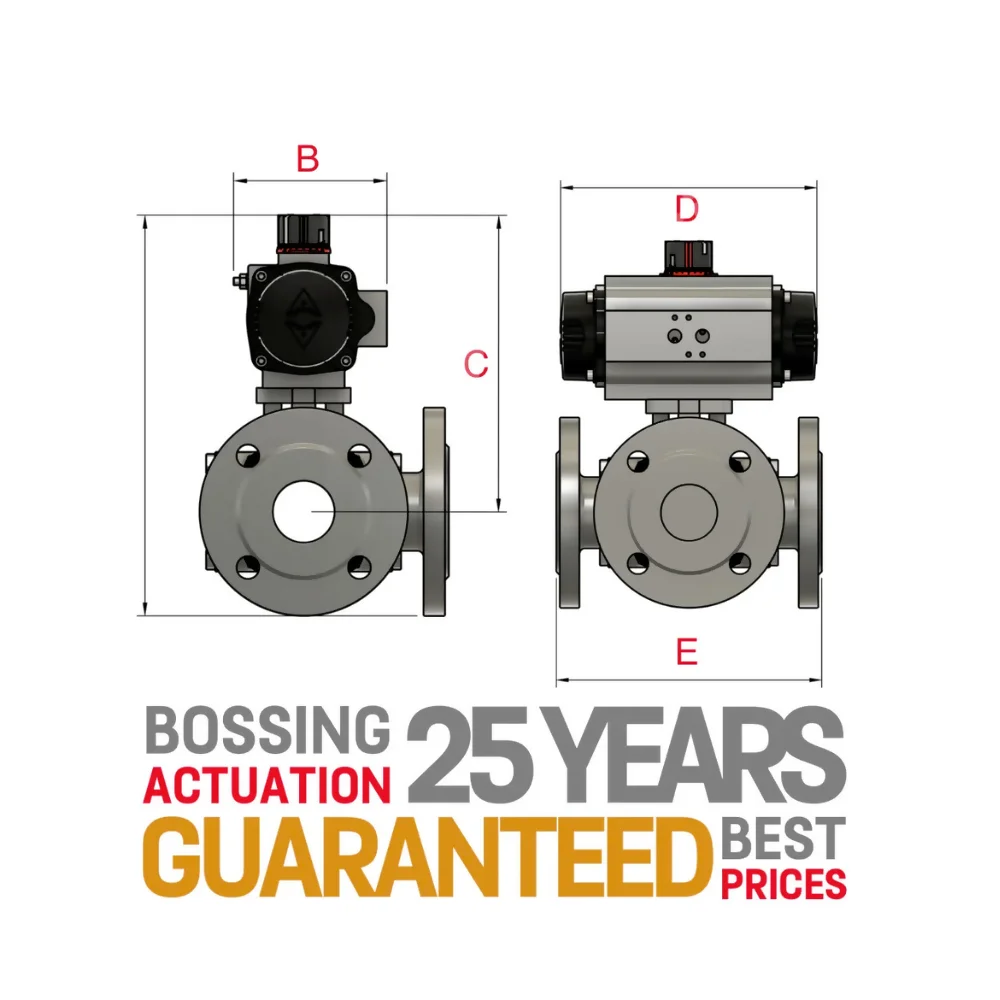

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	149.00	100.00	150.00	81.00	149.00	100.00	150.00
3/8"	96.00	172.00	163.00	165.00	96.00	172.00	145.00	165.00
1/2"	116.00	205.00	195.00	181.00	116.00	205.00	158.00	181.00
3/4"	116.00	222.00	195.00	190.00	116.00	222.00	158.00	190.00
1"	127.00	239.00	217.00	212.00	127.00	239.00	177.00	212.00
1 1/4"	140.00	272.00	258.00	230.00	140.00	272.00	196.00	230.00
1 1/2"	157.00	301.00	299.00	310-340	157.00	301.00	225.00	310-340
2"	197.00	371.00	348.50	352-385	197.00	371.00	273.00	352-385

Every actuated valve assembly undergoes thorough testing and calibration by our skilled team of technical engineers before being packed and shipped. This ensures that upon arrival at your location, the assemblies are installation-ready, allowing for swift resumption of your production operations.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

DRAWINGS & SCHEMATICS

CERTIFICATES & APPROVALS

Actreg Actuator Videos

Spring Change

Stroke Adjustment

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3 Way PN16-PN40 Full Bore Actreg Actuator Actuated Ball Valves
