Our 3-Way stainless steel ball valves, already tested for immediate functionality, come with a comprehensive two-page test report showing all the opening and closing timings once your order is fulfilled. The BV-L5K00 & 5N00 3-Way Ball Valve is offered in two variations: L Port and T Port. The L Port can provide total shut-off depending on the type of actuator, while the T Port is designed for either diversion or continuous flow from one port to another. Equipped with a high-efficiency motor, this product operates efficiently between -25 and 55 degrees Celsius, maintaining its speed and energy efficiency. This electric actuator's capability to function in harsh conditions ensures it will meet your needs in demanding situations.

Shop Help Me

Key features and benefits of BV-L5K00EK & BV-L5N00EK Actuated Ball Valves.

Key Features

Koei's newly launched UNIC series of electric actuators is engineered for uninterrupted, 100% continuous use. These actuators, which are electrically powered rather than relying on compressed air, eliminate the risk of operational halts caused by maintenance troubles, including those related to compressors.

Key Features

Koei UNIC stands out as a top-tier manufacturer with enduring partnerships with major industry players such as Toyota, Honda, and BMW. For over two decades, Koei UNIC has been producing its own superior electric actuators.

Key Features

The multipart diverter valve package offered is an ideal solution for handling moderately aggressive water conditions and challenging external environments. Its construction utilises only top-grade materials from Kingdom Controls, ensuring its quality and durability.

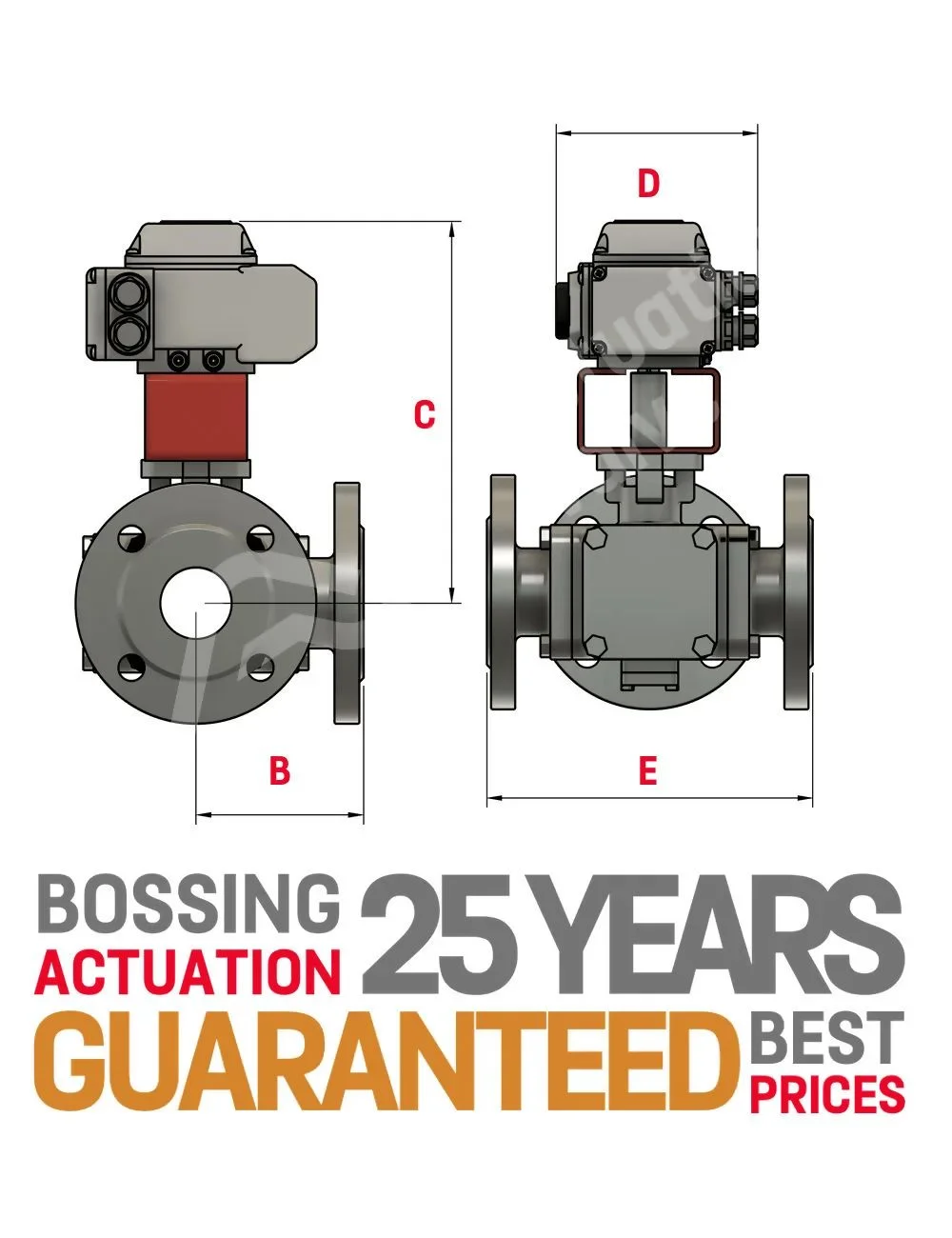

	B	C	D	E	Model
1/4"	TBA	TBA	TBA	TBA	UNIC 05
3/8"	TBA	TBA	TBA	TBA	UNIC 05
1/2"	TBA	229.00	145.00	150.00	UNIC 05
3/4"	TBA	233.00	145.00	165.00	UNIC 05
1"	TBA	244.00	145.00	181.00	UNIC 05
1 1/4"	TBA	TBA	TBA	TBA	UNIC 05
1 1/2"	TBA	261.00	145.00	190.00	UNIC 05
2"	TBA	294.00	155.00	212.00	UNIC 10
2 1/2"	TBA	309.00	155.00	230.00	UNIC 10
3"	TBA	329.00	187.00	310.00 / 340.00	UNIC 20
4"	TBA	360.00	187.00	352.00 / 386.00	UNIC 20
5"	TBA	TBA	TBA	TBA	TBA
6"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Brochures

Certificates & Approvals

Operations

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.
