Brass Ball Valves with Neck Extensions represent a specialised category of ball valves tailored to offer an extended reach, facilitating convenient operation in scenarios where the valve must be situated in challenging or concealed locations. These valves incorporate a threaded neck or stem extension, enabling users to regulate fluid flow without direct access to the valve body. Constructed from durable brass, they ensure corrosion resistance and sturdy performance. Brass Ball Valves with Neck Extensions find frequent application in industrial environments, utility installations, and instances where space limitations or accessibility issues pose challenges for conventional valve operation.

Key features and benefits of BV Brass Ball Valves with Neck Extensions

Key Features

Brass Ball Valves with Neck Extensions incorporate a threaded stem extension, offering an extended reach for operating the valve in difficult-to-reach areas.

Key Features

Constructed from high-quality brass renowned for its durability and corrosion resistance, these valves exhibit robust performance.

Key Features

Similar to standard ball valves, they facilitate quarter-turn operation, enabling swift and precise control of fluid flow.

Key Features

The elongated neck enhances the ease of valve operation in locations that are typically challenging to access.

Key Features

With its brass composition, the valves showcase exceptional resistance to corrosion, ensuring prolonged service life and dependable functionality.

Key Features

The dependable shut-off feature guarantees the prevention of unintended fluid flow when the valve is closed, thereby contributing to enhanced safety.

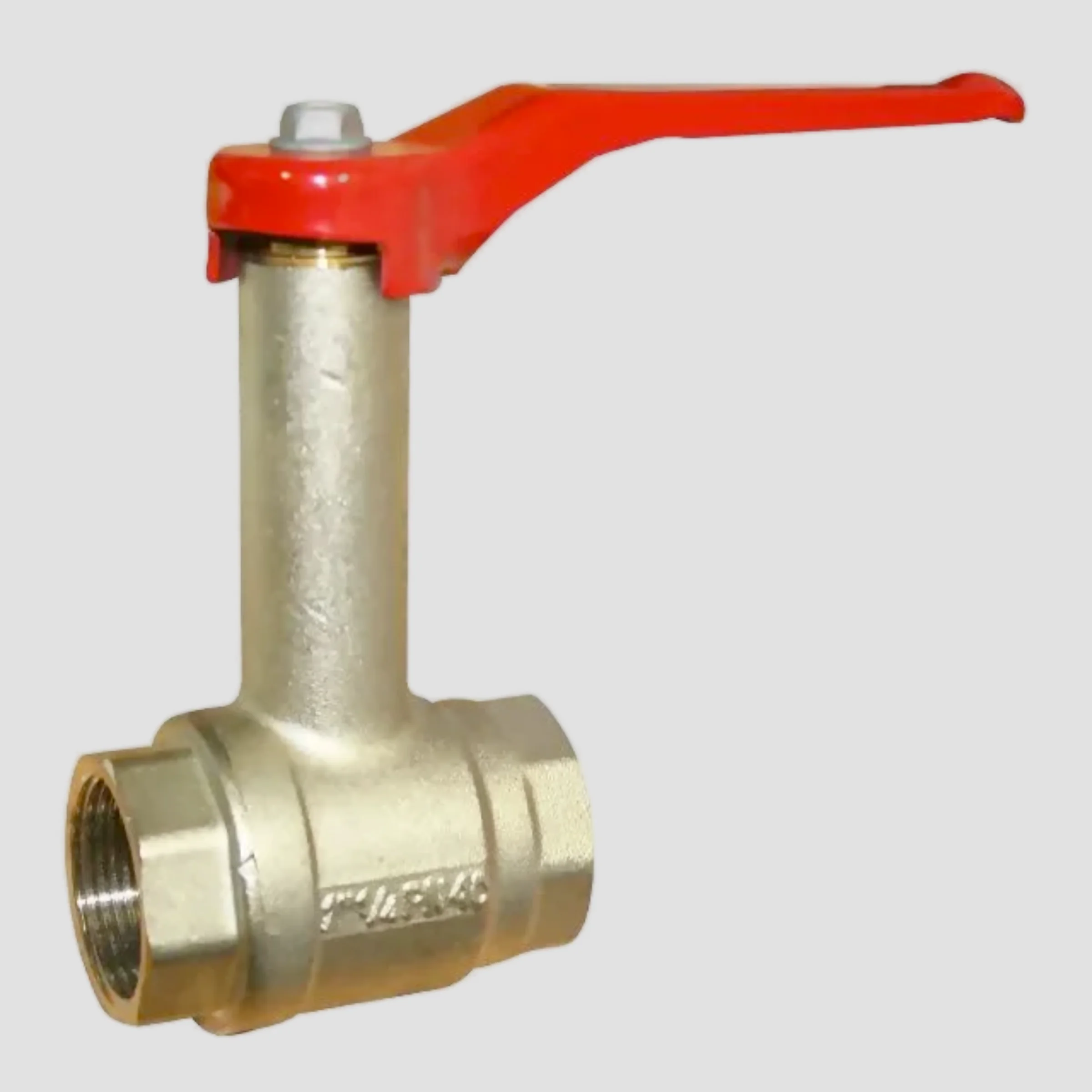

The BV-4169 is a specialised valve crafted for precise flow control in scenarios requiring an extended reach. It incorporates a Screwed BSPP end connection, guaranteeing a secure and leak-free installation. Constructed with a sturdy cast brass body and neck, the valve is both durable and resilient to corrosion. Operating within a temperature range of -10 to 100 degrees, it proves suitable for diverse environments, delivering reliable performance in both low and moderate-temperature conditions. The extended neck design enhances operational ease and ensures effective use in applications demanding an extended reach for valve control.

Size Range:	1/2" to 2"
Body Materials:	Brass
Body Type:	Cast Brass Body and Neck
Applications:	Water Supply Systems, Gas Distribution Networks, HVAC, & Irrigation Systems
Pressure Rating:	PN40
End Connections:	Screwed BSPP

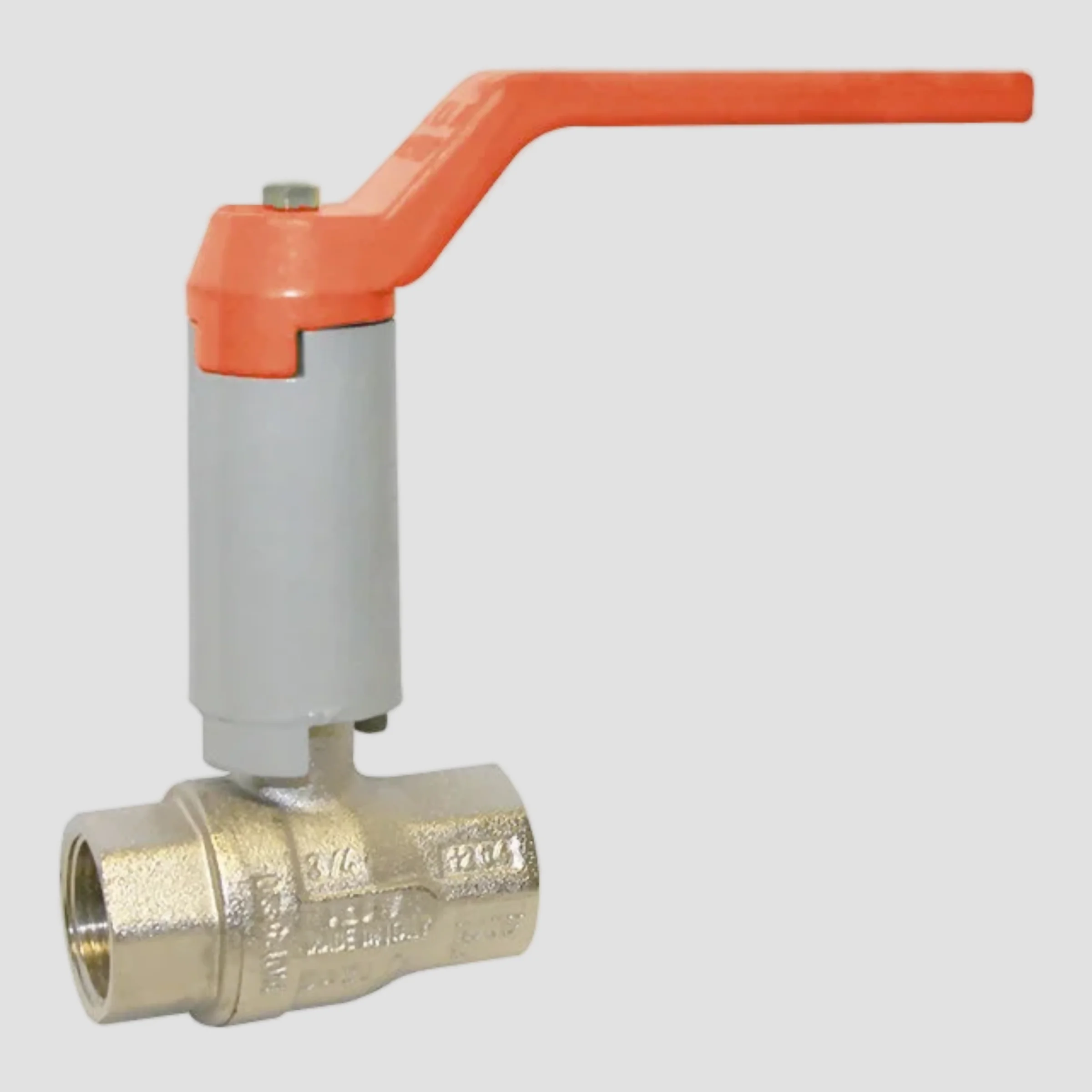

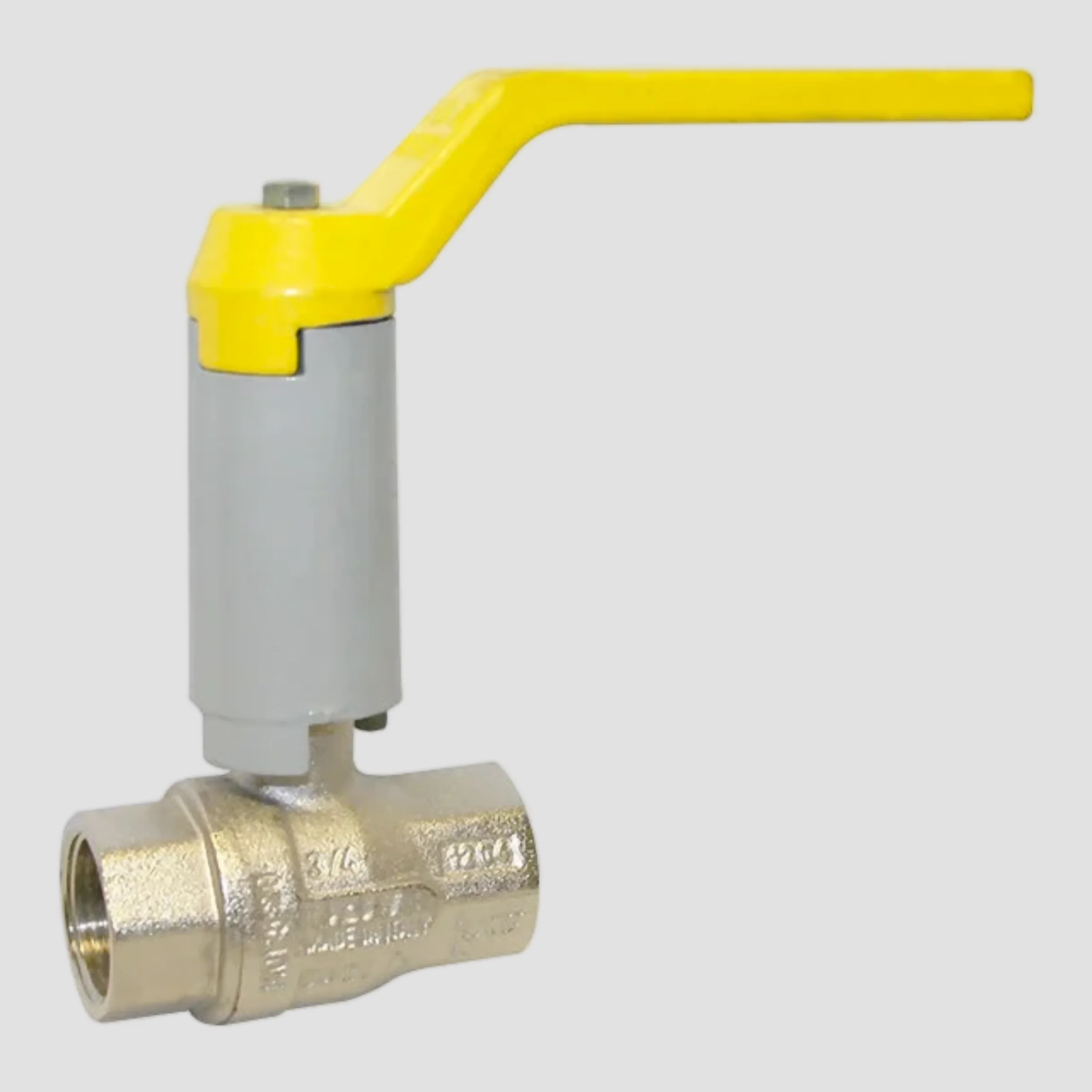

The BV-7169 and 4179 are specialised ball valves designed for easy installation in pipelines or systems where it is necessary to mount the valve at a distance from the pipe or surface. They are equipped with a longer, slender neck or stem connected to the ball, enabling remote operation. This design offers convenience in applications where the valves may be enclosed within insulation, situated in a hard-to-reach area, or housed in a protective casing. The brass construction ensures resistance to corrosion and long-lasting durability. Operating on the same principle as standard ball valves, they use a quarter-turn motion to control fluid flow. Brass Ball Valves with Neck Extensions find common use in industrial, commercial, and HVAC systems where extended reach is essential for ease of access and operation.

Size Range:	1/4" to 4"
Body Materials:	Brass
Body Type:	Nickel Plated Brass CW 617 N
Applications:	Water Supply Systems, Gas Distribution Networks, HVAC, & Irrigation Systems
Pressure Rating:	PN40 (¼” to ½”) PN32 (¾” & 1”) PN25 (1¼” & 2½”) PN16 (3” & 4”)
End Connections:	Screwed BSPP

What is a neck extended ball valve?

A neck extended ball valve is a type of valve with an elongated neck or stem, designed to facilitate operation in applications where the valve is located in hard-to-reach or deep areas.

Where are neck extended ball valves commonly used?

These valves are commonly used in industries such as petrochemicals, oil and gas, and chemical processing where valves may be installed in locations that are difficult to access.

What advantages do neck extended ball valves offer?

Neck extended ball valves provide improved accessibility for operation, making them suitable for installations in confined spaces or areas with restricted access.

Are neck extended ball valves suitable for high-pressure applications?

Yes, many neck extended ball valves are designed to handle high-pressure applications, providing reliable performance in demanding conditions.

Can neck extended ball valves be automated?

Yes, these valves can often be fitted with automation accessories such as actuators to enable remote or automated operation.

How do neck extended ball valves differ from standard ball valves?

The key difference is the elongated neck or stem in neck extended ball valves, allowing for easier operation in locations where standard valves might be challenging to reach.

What materials are commonly used in the construction of neck extended ball valves?

Materials such as stainless steel, brass, and other corrosion-resistant alloys are commonly used to construct neck extended ball valves.

Are neck extended ball valves suitable for corrosive environments?

Yes, the materials used in their construction often provide resistance to corrosion, making them suitable for use in corrosive environments.

Can neck extended ball valves be used for throttling applications?

While they are primarily designed for on/off service, some neck extended ball valves with special trim designs can be used for moderate throttling applications.

How is maintenance typically performed on neck extended ball valves?

Maintenance usually involves routine inspections, lubrication of moving parts, and, if necessary, replacement of seals or other worn components.

Are neck extended ball valves suitable for underground installations?

Yes, they can be suitable for underground installations, providing a convenient solution for valves located in pits or other subsurface locations.

Can neck extended ball valves be customised for specific applications?

Yes, many manufacturers offer customisation options to tailor neck extended ball valves to specific industry or application requirements.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
