Electric Koei Carbon Steel ANSI150 Actuated Ball Valves

Our carbon steel ball valves, pre-tested for immediate operation, are accompanied by a two-page test report outlining all operational timings post-purchase. Ideal for use with oil-based paints and coatings in automotive refinishing, these BV-L61C0-EK valves are 100% silicone-free, ensuring no contamination or residue that could impair your finishes over time. Additionally, the Koei UNIC electric actuator series presents an economical option, offering up to 30% enhanced performance at reduced operating costs, surpassing current market offerings. These actuators are compatible with both AC and DC power sources.
Shop Help Me

Key Features

Key features and benefits of the BV-L61C0-EK Actuated Ball Valves.
1

Key Features

Koei's latest UNIC series electric actuators are built for continuous 100% operation. Their electric power source eliminates the risk of downtime caused by maintenance issues often associated with compressed air systems, such as compressor malfunctions.
2

Key Features

Equipped with a high-efficiency motor, these actuators can function in temperatures ranging from -25 to 55 degrees Celsius, maintaining their speed and power efficiency. This capability makes them ideal for use in harsh environments, ensuring reliable performance when it's most crucial.
3

Key Features

The BV-L61-C Ball Valves are devoid of silicone, making them compatible with oil-based paint products and applications. This ensures that the valves do not introduce contaminants into the medium, which is critical in maintaining the quality of the final finish – a vital consideration in automobile manufacturing.

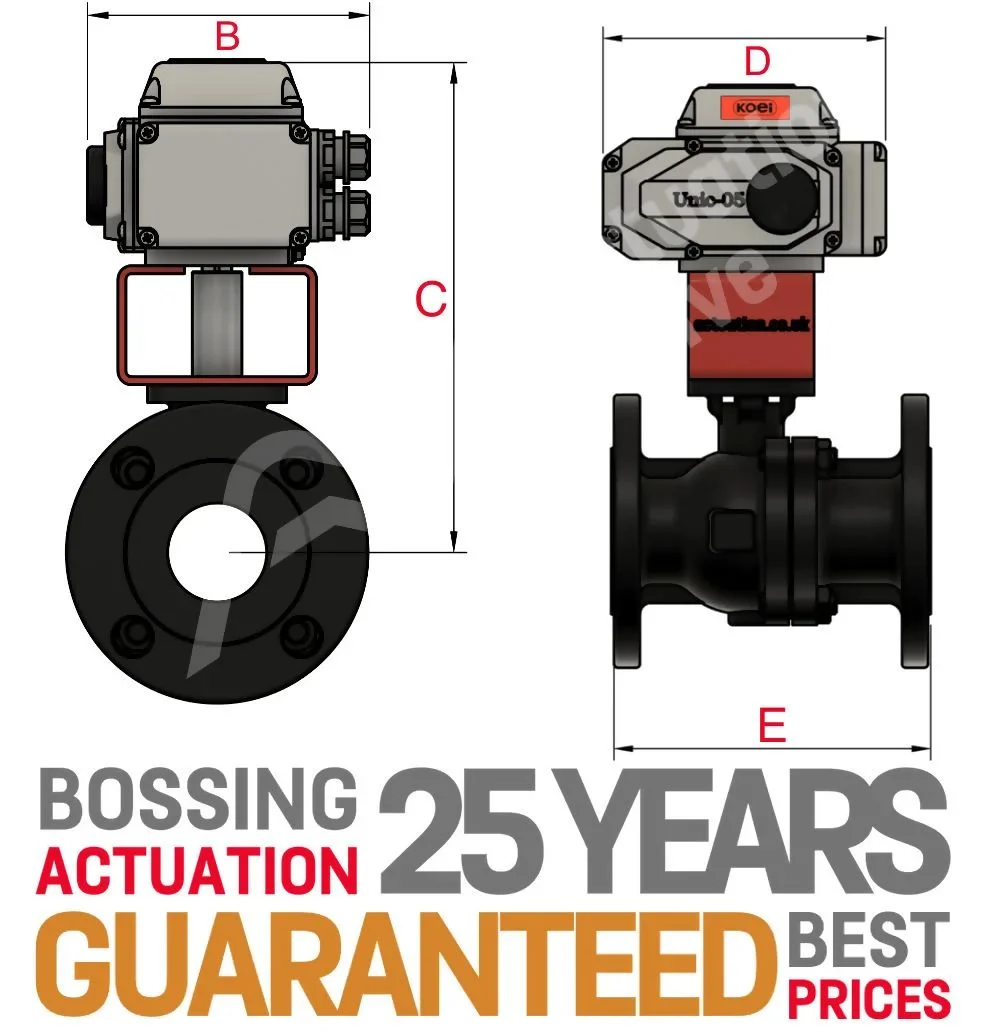

BV-L61C0-EK Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

BV-L61C0-EK Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
Brochures

Koei UNIC
  • PDF
Certificates & Approvals

CE Declaration
  • PDF
Certificates & Approvals

Nema UL
  • PDF
Operations

AC Actuators
  • PDF
Operations

DC Actuators
