PN16 Carbon Steel AV-Lite Electric Actuated Ball Valves

The BV-L6KC0-AV Actuated Ball Valves represent an excellent choice for use in harsh or corrosive environments where traditional options may not suffice. Featuring a body made from CF8M and a high-quality stainless steel ball, these valves demonstrate remarkable durability even in the most demanding conditions. We take great care in the in-house manufacturing and thorough evaluation of all our products, providing us with full control to guarantee that you receive a long-lasting, high-quality item. Each of our products comes with a comprehensive two-page test report that encompasses all operational aspects, including open/close times and pressure ratings.
Shop Help Me

Key Features

Key features and benefits of the BV-L6KC0-AV Actuated Ball Valves.
1

Key Features

Our Actuated Ball Valves provide an ideal option for applications in rugged or corrosive conditions where standard valves are not appropriate.
2

Key Features

We have developed our product with a focus on the end-user, taking into consideration what functions most effectively in the realm of industrial automation. When you make the transition from traditional ball valves to our low-torque BV-L6KC0AV Ball Valve, you will experience cost savings in both installation and maintenance, all the while enhancing the overall reliability of the system.
3

Key Features

We produce all Actuated Valve Assemblies internally, benefiting from the expertise of automation professionals. Each finished unit is equipped to meet rigorous quality standards and can be easily traced through a two-page test report that provides information on opening and closing times.

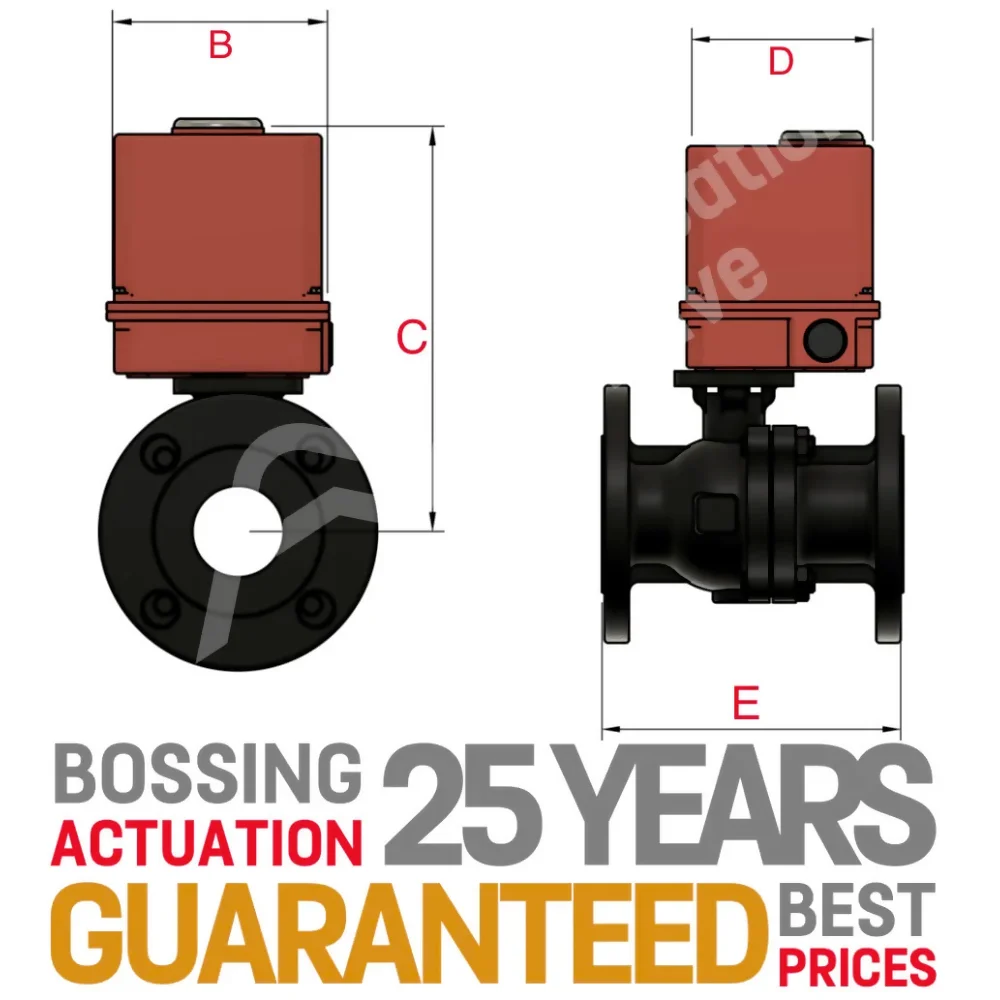

BV-L6KC0AV Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

BV-L6KC0-AV Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12516-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds
