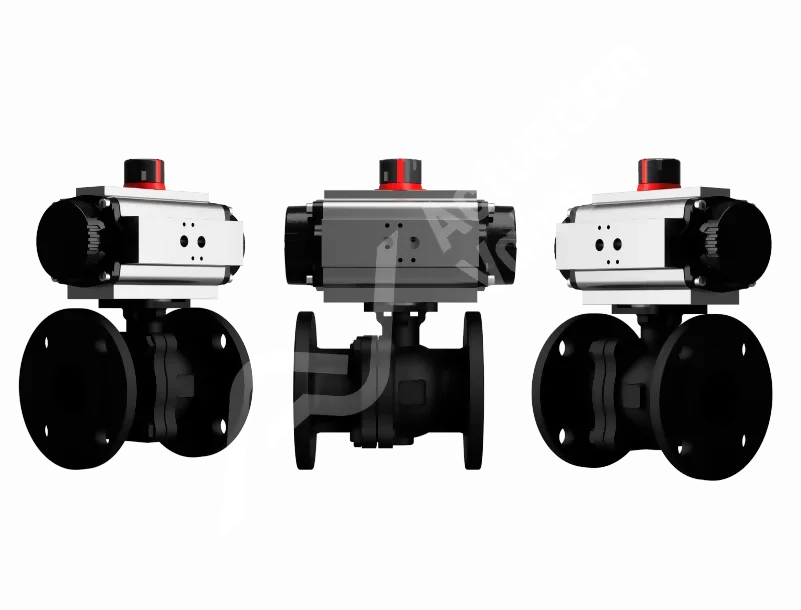

The BV-L6NC0-AC DIN PN40 automated ball valves deliver high-pressure, full-flow functionality with a bore size of up to 6 inches. These automated ball valves can be installed between two different flanges in a pipeline. Valve certifications encompass DNV, SIL 2, Lloyds Register, and NACE MR-0175. Furthermore, you can opt for additional features like an upstream and cavity relief hole drilled into the ball, as well as a high-temperature spindle extension for insulation and steam-based operation. We also offer express shipping, ensuring delivery within 24-48 hours for in-stock components.

Shop Help Me

Key features and benefits of the BV-L6NC0AC Actuated Ball Valves.

Key Features

The Actreg actuator is ready to meet your application's needs, whether it involves performing hundreds of cycles per day or operating intermittently several times per month. It can swiftly respond to tasks and, in the event of a spring failure or air or signal loss, automatically switch to the closed position.

Key Features

The Actreg pneumatic actuator is offered in both double-acting and spring-return variants, boasting a remarkable torque capacity of up to 6500NM thanks to its rack and pinion design. Each actuator is equipped with built-in manual adjustment stops to ensure precise valve actuation within a 5º range for both open and closed positions.

Key Features

By switching from conventional ball valves to our low torque BV-L6NC0 Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation.

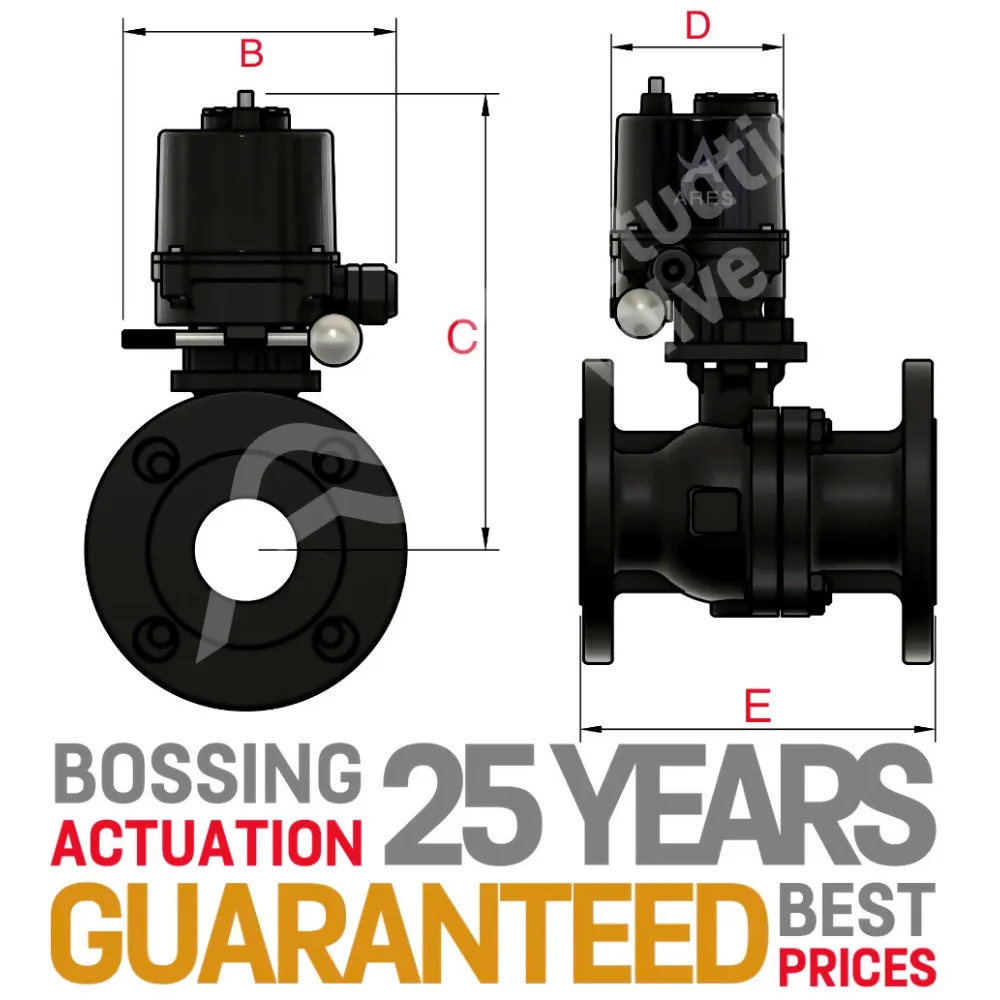

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	72.00	120.00	137.00	72.00	120.00	137.00	59.00
3/4"	72.00	126.00	137.00	72.00	126.00	137.00	69.00
1"	72.00	130.00	137.00	72.00	130.00	137.00	83.00
1 1/4"	93.00	168.50	203.50	72.00	135.50	137.00	94.00
1 1/2"	93.00	180.00	203.50	84.50	163.00	153.50	102.00
2"	106.00	200.50	153.50	84.50	170.50	153.50	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

Every actuated valve assembly undergoes thorough testing and calibration by our skilled team of technical engineers before being packed and shipped. This ensures that upon arrival at your location, the assemblies are installation-ready, allowing for swift resumption of your production operations.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	EN 12516-1
Wall Thickness:	EN 12516-1
Inspection & Testing:	EN 12266-1
Face 2 Face:	DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
