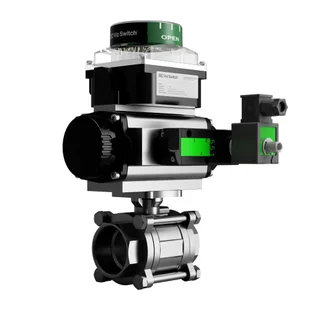

Ball Valves BV-L3000BSPDN0065AC21DA Actreg Actuated 110VAC SCG551A001MS Screw Type VIZ 001 Limit Switch Box IP68 2 X M20 250V 10A Screwed BSP

Product Code:
(0 reviews)
| Write review
£464.71ex. VAT
Pay in 3 easy payments of £185.88 with Klarna
Add to Basket
Make an Enquiry Apply for Credit
Next Day Delivery Available
Technical Support
Price Match Guarantee

Technical Specs

Valve Size 2.5"
Connections Screwed BSP
Pressure Design 1000 PSI
Body Design 3 PCE Full Bore
Body Material Stainless Steel A351 CF8M
Ball Design Straight Through
Seat Material PTFE 1600
Actuator Function Double Acting Air Open Air Close
Actuator Type Pneumatic
Actuator Housing Hard Anodized Aluminium
Power 110VAC SCG551A001MS
Manual Override Screw Type
Valve Approvals & Features VIZ 001 Limit Switch Box IP68 2 X M20 250V 10A
Part Number BV-L3000BSPDN0065AC021DA
Brand Kingdom
Actuator Brand Actreg
F2F Dimension 185
