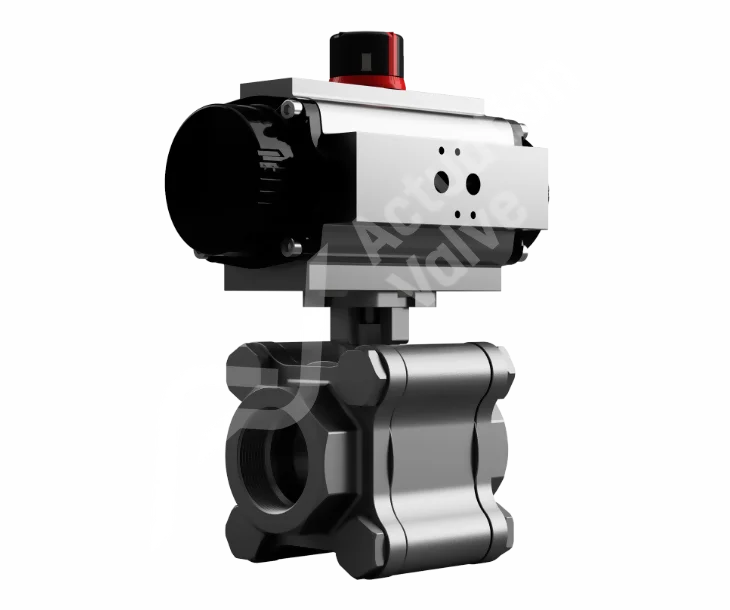

Carbon Steel Actreg Actuated Ball Valves are designed for high-performance applications, featuring a precise actuation mechanism that ensures reliable operation in industrial environments. These valves offer superior durability and are ideal for regulating flow in various systems. The advanced engineering of Actreg ensures efficient control with minimal maintenance required, making them a top choice for professionals seeking reliable fluid management solutions.

Shop Help Me

Key features and benefits of BV-L8000FCAC & BV-L8200FCAC Actuated Ball Valves.

Key Features

Ideal for operating under pressures of up to 2000 PSI for sizes 1" and below, the BV-L8000FC high-strength ball valves offer enhanced performance compared to our regular valve selection. Engineered to meet the rigorous API 607 5th ED 2005 firesafe standards (for the valve component only), this extensively certified valve is both dependable and sturdy.

Key Features

The BV-L8000FC heavy-duty ball valves are well-suited for heavy-duty industrial applications that demand higher pressure ranges or elevated temperatures. These valves incorporate PTFE TFM 4215 ball seats and grafoil stem sealing for superior performance and reliability.

Key Features

Installation options are available for both across-line configurations. The Actreg actuator's design accommodates either setup, depending on specific application needs, especially when space-saving is essential. A common inline mounting approach is suitable for applications such as hopper line actuation and bagging lines.

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	139.00	163.00	75.00	81.00	139.00	145.00	75.00
3/8"	81.00	139.00	163.00	75.00	81.00	139.00	145.00	75.00
1/2"	81.00	139.00	163.00	75.00	81.00	139.00	145.00	75.00
3/4"	81.00	147.00	163.00	80.00	81.00	147.00	145.00	80.00
1"	96.00	173.00	195.00	90.00	96.00	173.00	158.00	90.00
1 1/4"	96.00	178.00	195.00	110.00	96.50	178.00	158.00	110.00
1 1/2"	116.00	212.00	217.00	120.00	116.00	212.00	177.00	120.00
2"	116.00	223.00	217.00	140.00	116.00	223.00	177.00	140.00

Every actuated valve assembly undergoes thorough testing and calibration by our skilled team of technical engineers before being packed and shipped. This ensures that upon arrival at your location, the assemblies are installation-ready, allowing for swift resumption of your production operations.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1
Socket Weld Ends:	ASME B16.11
Silicone Free:	Suitable For Oil Based Paints
Anti Static Device:	Ball, Shaft & Valve Body

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

DRAWINGS & SCHEMATICS

CERTIFICATES & APPROVALS

Actreg Actuator Videos

Spring Change

Stroke Adjustment

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Heavy Duty Carbon Steel Actreg Actuator Actuated Ball Valves
