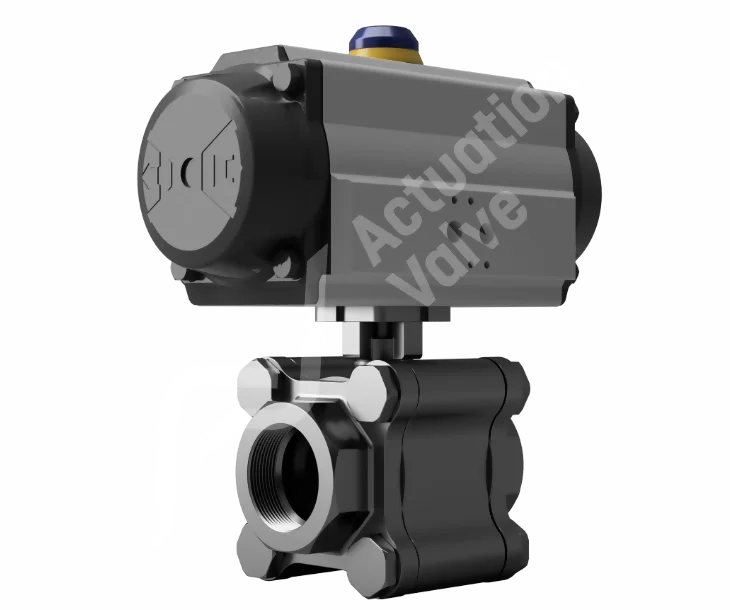

Heavy Duty Carbon Steel Air Torque Actuated Valves

The BV-L8000FC Ball Valve has minimal torque requirements, making its operation smooth and cost-effective. It allows for the use of smaller actuators to automate valves that typically require larger units. Our carbon steel ball valves are pre-tested for immediate use. Upon completion of your order, you will receive a two-page test report detailing the opening and closing times. Each actuator has a unique serial number, ensuring full traceability back to the factory. BallValve handles all assemblies in-house and cross-references this serial number with accompanying valves and accessories in a build sheet format.
Shop Help Me

Key Features

Key features and benefits of BV-L8000FCAT & BV-L8200FCAT Actuated Ball Valves.
1

Key Features

The top visual indicator is an integral component of a patented design by the Italian manufacturer, enabling users to effortlessly adjust the top cap to different angles. This eliminates the need for unnecessary disassembly and reassembly of the actuated valve unit in case of setup changes.
2

Key Features

These ball valves are offered with screwed connections in both NPT and BSP, making them suitable for various applications requiring flow control. They fully adhere to safety standards, ensuring workplace safety while also being budget-friendly.
3

Key Features

Air Torque pneumatic actuators have been meticulously optimised for performance and durability at every stage of their development, starting from design, through production, and extensive testing. With over 30 years of experience in crafting robust and dependable components, you can place your trust in us for the success of your project.

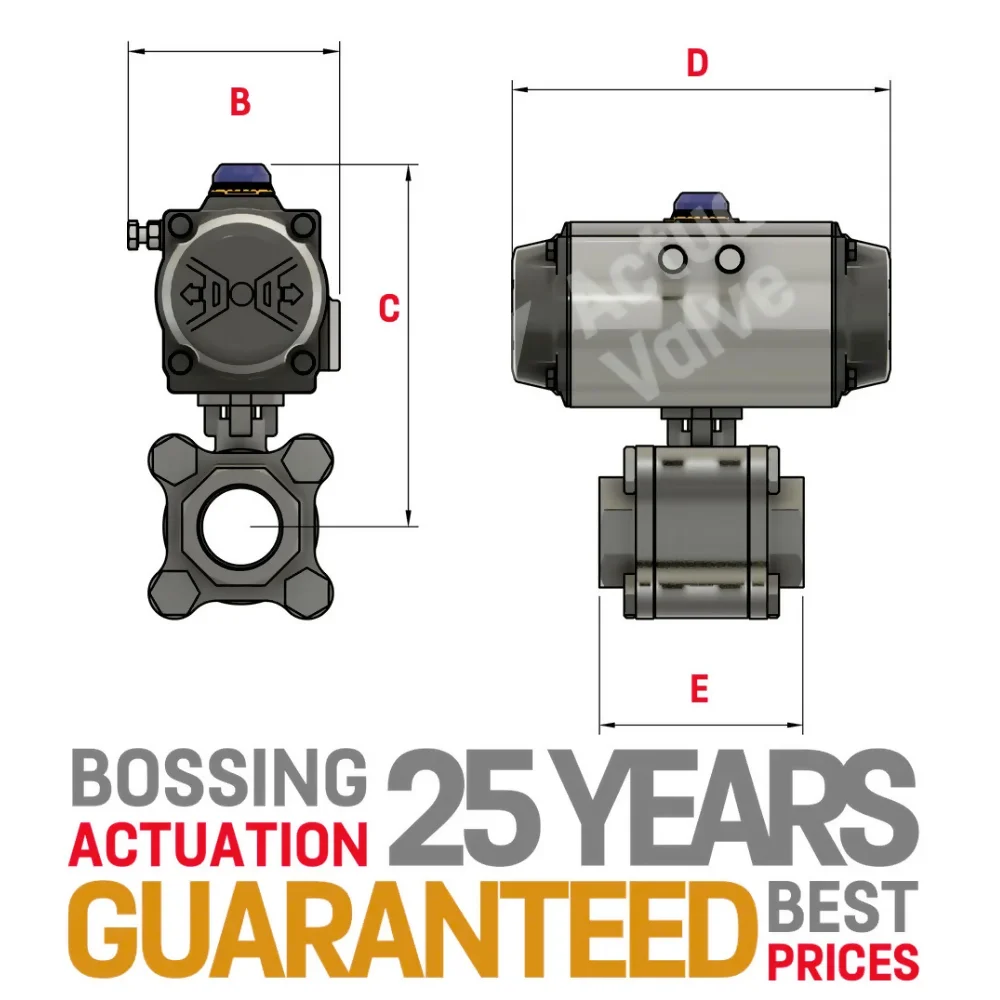

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
3/8" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
1/2" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
3/4" 84.50 156.00 153.50 80.00 72.00 140.00 137.00 80.00
1" 93.00 180.00 203.50 90.00 72.00 147.00 137.00 90.00
1 1/4" 93.00 185.00 203.50 110.00 84.50 168.00 153.50 110.00
1 1/2" 106.00 210.00 241.00 120.00 84.50 180.00 153.50 120.00
2" 118.50 233.00 259.00 140.00 93.00 208.00 203.50 140.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT451
  • Document
DRAWINGS & SCHEMATICS

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • PDF
DRAWINGS & SCHEMATICS

AT601
  • PDF
DRAWINGS & SCHEMATICS

AT651
  • PDF
DRAWINGS & SCHEMATICS

AT701

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SAFETY MANUAL
  • PDF
CERTIFICATES & APPROVALS

BUREAU VERITAS

Air Torque Actuator Videos

Aluminium
Stainless Steel
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
