Heavy Duty Carbon Steel Elomatic Ball Valves

The BV-L8000FCEL and BV-L8200FCEL are three-piece full-bore heavy-duty actuated ball valves that present a more cost-effective alternative to stainless steel valves when employed in less corrosive settings. These valves are available in sizes ranging from 1/4" to 2". Ball and seat choices encompass, among others, 50% stainless steel-filled seats and V-Ball modulation. For applications involving oil-based paint, silicone seats are available, and inspection testing adheres to MSS SP-110 standards. Additionally, complimentary features include a Certificate of Conformity (COC) and a comprehensive two-page assembly and Calibration Certificate. Each unit undergoes assembly and testing in-house before being dispatched.
Shop Help Me

Key Features

Key features and benefits of BV-L8000FCEL & ABV-L8200FCEL Actuated Ball Valves.
1

Key Features

EL-O-Matic presents innovative solutions to meet your automation requirements. Their pneumatic actuation products ensure the continuous and secure operation of your plant, even in challenging environmental conditions both inside and outside your facility.
2

Key Features

We've simplified valve maintenance, allowing anyone to replace individual parts such as Seats and Seals when needed. This approach makes preventive maintenance more cost-effective and straightforward compared to traditional ball valves, which demand complete disassembly for every repair or replacement.
3

Key Features

EL-O-Matic's pneumatically actuated valves find applications across various industries, including chemical, oil and gas, pharmaceuticals, water treatment, and more. These valves offer a rapid response time for efficiently opening or closing the flow of media (gases/fluids) as required.

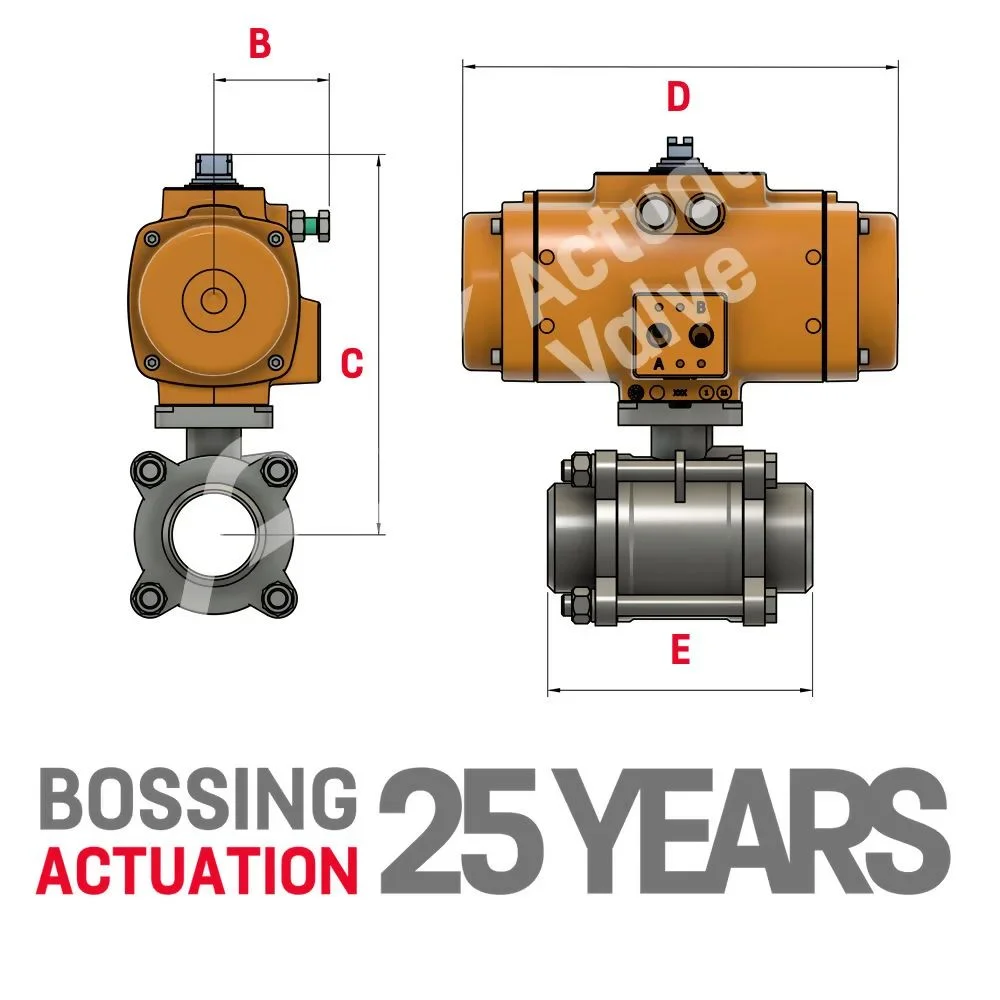

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/8" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
1/2" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/4" 48.00 162.00 166.00 80.00 48.00 162.00 166.00 80.00
1" 58.00 190.00 192.00 90.00 48.00 169.00 166.00 90.00
1 1/4" 58.00 195.00 192.00 110.00 58.00 195.00 192.00 110.00
1 1/2" 69.00 219.00 217.00 120.00 58.00 207.00 192.00 120.00
2" 69.00 237.00 247.00 140.00 69.00 230.00 217.00 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Right Column Header

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Stuff

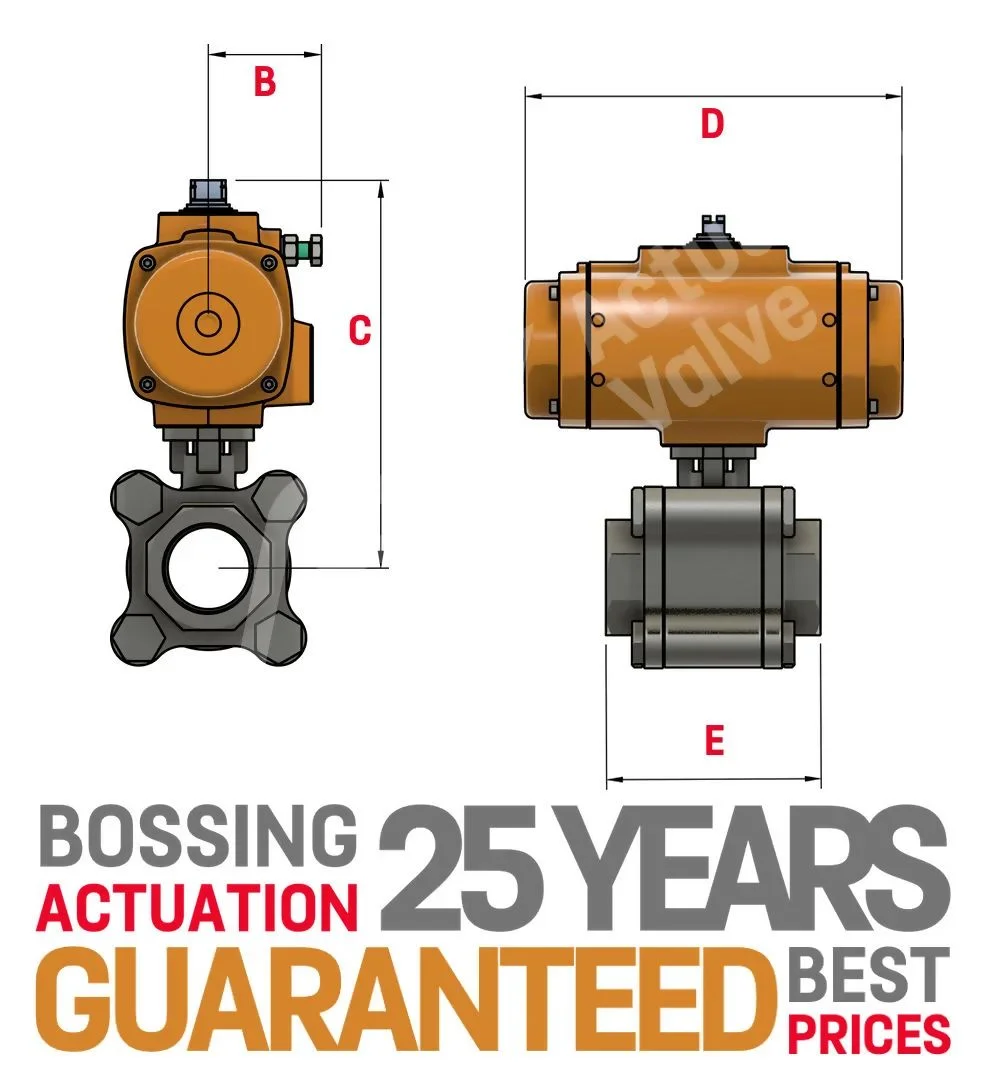

Butt Weld Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 154.00 166.00 70.00 33.00 123.00 103.00 70.00
3/8" 48.00 154.00 166.00 70.00 33.00 123.00 103.00 70.00
1/2" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/4" 48.00 162.00 166.00 90.00 48.00 162.00 166.00 90.00
1" 58.00 190.00 192.00 100.00 48.00 169.00 166.00 100.00
1 1/4" 58.00 195.00 192.00 110.00 58.00 195.00 192.00 110.00
1 1/2" 69.00 219.00 217.00 125.00 58.00 207.00 192.00 125.00
2" 69.00 237.00 247.00 150.00 69.00 230.00 217.00 150.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

SMALL Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
  • Size 0100
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
