The BV-L8000FCEK and BV-L8200FCEK 3-piece full bore heavy duty actuated ball valves present a more economically viable alternative to stainless steel valves for use in less corrosive environments. These valves are available in sizes ranging from 1/4” to 2”. Options for ball and seat include, but are not limited to, 50% stainless steel filled seats and V-Ball modulation. Silicone seats are available for oil-based paint applications, and inspection testing conforms to MSS SP-110 standards. Additional options provided free of charge include a Certificate of Conformity and a comprehensive two-page assembly and Calibration Certificate. Each unit is assembled and rigorously tested in-house before dispatch. The Actuator features a robust construction with a high-quality Die-Cast Aluminium Body coated in grey stove enamel, ensuring protection up to IP65/NEMA4X, thereby enhancing durability in harsh condition industries and applications.

Shop Help Me

Key features and benefits of BV-L8000FCEK & BV-L8200FCEK Actuated Ball Valves.

Key Features

Koei UNIC electric actuators are both compact and lightweight, facilitating easy installation in a variety of settings without compromising on performance or durability. These units, while light, retain all the features and advantages of our standard models, minus the bulk.

Key Features

The adaptable Koei UNIC electric Actuator stands as an ideal solution for all your electric actuating requirements and site standardisation. With over 8 distinct sizes available, we are confident that there is a model to perfectly match all your electrical needs.

Key Features

The innovative three-piece design of the actuator minimises the risk of damage during disassembly, particularly when changing seals or other components in the valve body. This design also enables users to replace individual components without the need for replacing the entire valve assembly.

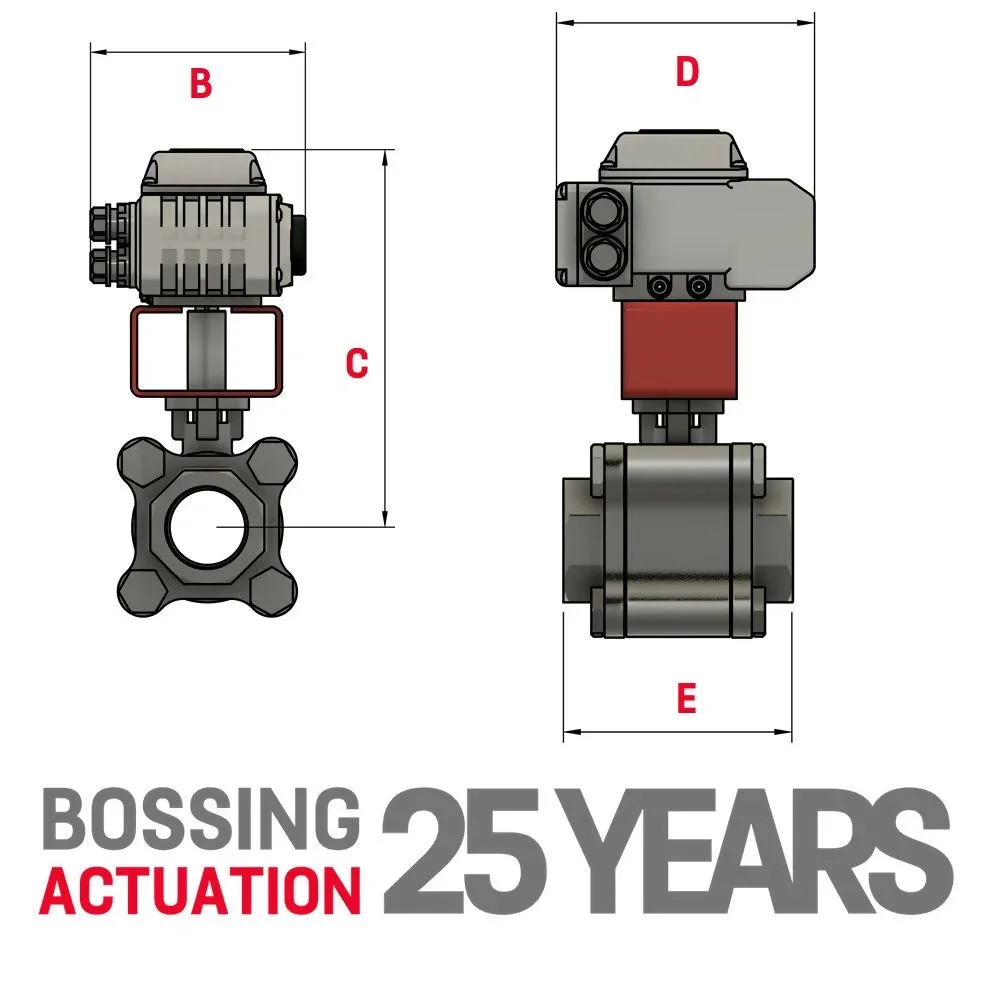

	B	C	D	E	Model
1/4"	145.00	219.00	159.00	75.00	UNIC 05
3/8"	145.00	219.00	159.00	75.00	UNIC 05
1/2"	145.00	219.00	159.00	75.00	UNIC 05
3/4"	145.00	227.00	159.00	80.00	UNIC 05
1"	145.00	234.00	159.00	90.00	UNIC 05
1 1/4"	145.00	239.00	159.00	110.00	UNIC 05
1 1/2"	145.00	251.00	159.00	120.00	UNIC 05
2"	155.00	288.00	208.00	140.00	UNIC 10
2.5"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1
Socket Weld Ends:	ASME B16.11
Silicone Free:	Suitable For Oil Based Paints
Anti Static Device:	Ball, Shaft & Valve Body

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
