Heavy Duty Stainless Steel Rotork ROM Actuated Valves

The BV-L8000ROM, BV-L8100ROM, and BV-L8200ROM models are three-piece, full bore, heavy-duty actuated ball valves featuring an ASTM A351 CF8M 316 stainless steel body and trim with TFM 4215 25% carbon-filled seats. These valves are available in sizes ranging from 1/4” to 2” nominal bore. The isolation Ball Valve is designed for reliability and full maintainability. Its three-piece body includes a convenient drop-out section for ease of future maintenance, allowing for simple replacement as needed. Optional features include 50% stainless steel filled seats and V-Ball modulation. Equipped with Rotork ROM electric actuators, these valves enable efficient and precise control of your processes. Our products are not only reliable and user-friendly but also boast long life cycles, enhancing productivity in your production facilities or service centres.
Shop Help Me

Key Features

Key features and benefits of BV-L8000ROM, BV-L8100ROM & BV-L8200ROM Actuated Ball Valves.
1

Key Features

Our team, with its extensive experience in complex automation systems, is adept at delivering high-quality products swiftly and economically. Just let us know your requirements, and we'll handle the rest.
2

Key Features

The Rotork ROM Electric Actuator is specifically engineered for hazardous environments and extreme conditions. These electric actuators are perfectly suited for a variety of applications, including heating, ventilation, and air conditioning (HVAC), chemical processing plants, mining activities, and marine vessels.
3

Key Features

Compact, lightweight, and cost-efficient, the Rotork ROM electric actuator is ideal for a wide range of industrial automation tasks. Its design focuses on ease of installation, featuring an intuitive user interface and comprehensive operation manuals, ensuring it's ready for immediate deployment on site.

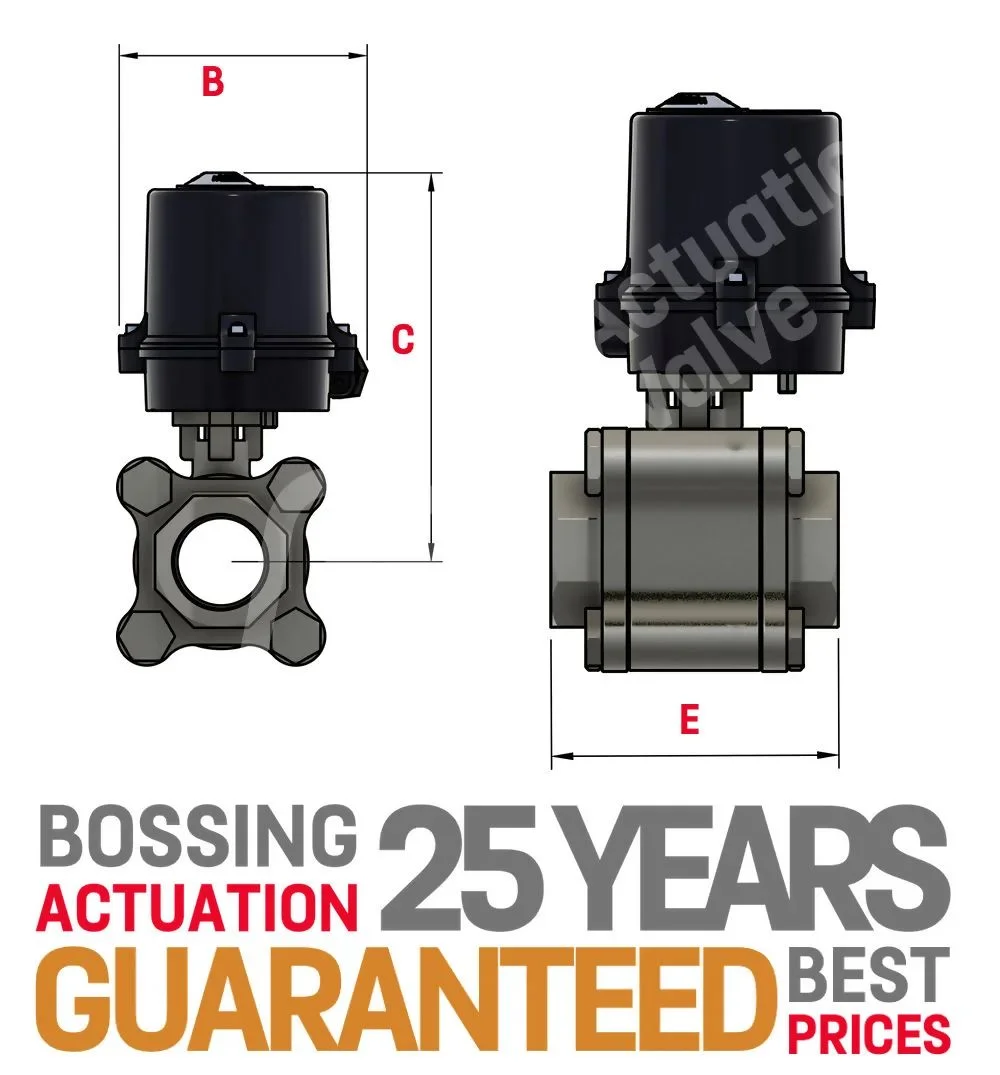

Screwed/Socket Weld Technical Stuff

B C D Model
1/4" 114.00 179.00 75.00 ROM-1
3/8" 114.00 179.00 75.00 ROM-1
1/2" 114.00 179.00 75.00 ROM-1
3/4" 114.00 187.00 80.00 ROM-1
1" 114.00 194.00 90.00 ROM-1
1 1/4" 114.00 264.00 110.00 ROM-1
1 1/2" 114.00 211.00 120.00 ROM-1
2" 114.00 255.00 140.00 ROM-A
2.5" TBA TBA TBA TBA
3" TBA TBA TBA TBA
4" TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Valve 3D Stuff

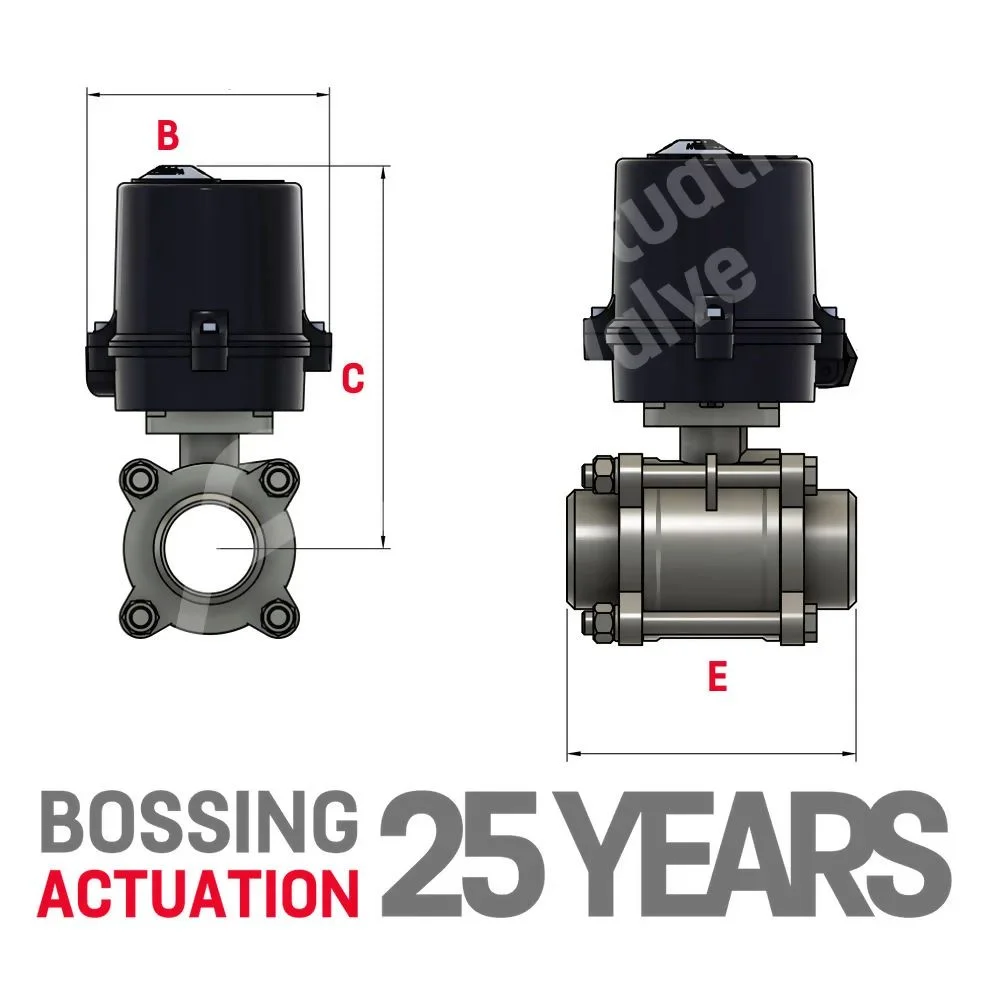

Butt Weld Valve Technical Stuff

B C D Model
1/4" 114.00 179.00 70.00 ROM-1
3/8" 114.00 179.00 70.00 ROM-1
1/2" 114.00 179.00 75.00 ROM-1
3/4" 114.00 187.00 90.00 ROM-1
1" 114.00 194.00 100.00 ROM-1
1 1/4" 114.00 264.00 110.00 ROM-1
1 1/2" 114.00 211.00 125.00 ROM-1
2" 114.00 255.00 150.00 ROM-A
2.5" TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

ROM-1
  • PDF
DRAWINGS & SCHEMATICS

ROM-A
  • PDF
DRAWINGS & SCHEMATICS

ROM-2
  • PDF
DRAWINGS & SCHEMATICS

ROM-3

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

ROM-4
  • PDF
DRAWINGS & SCHEMATICS

ROM-5
  • PDF
DRAWINGS & SCHEMATICS

ROM-6
  • PDF
DRAWINGS & SCHEMATICS

ROM-7

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
BROCHURES

ROM & ROMpak
  • PDF
OPERATIONS

Installation Manual
  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas
  • PDF
CERTIFICATES & APPROVALS

CSA Certificate Of Compliance
  • PDF
CERTIFICATES & APPROVALS

EU Declaration Of Conformity
