Heavy Duty Stainless Steel Air Torque Actuated Valves

These robust stainless steel ball valves are suitable for use in various industrial settings, such as chemical processing plants, oil refineries, and water treatment facilities. Their durable stainless steel bodies ensure reliable performance in any environment. Air Torque actuators are designed for long-lasting use, requiring minimal maintenance compared to similar products available today. We offer a wide range of models to suit your specific needs. The top visual indicator is part of a patented Italian design that allows users to easily adjust the top cap to different angles, eliminating the need to disassemble and reassemble the actuated valve unit when making adjustments.
Shop Help Me

Key Features

Key features and benefits of BV-L8000AT, BV-L8100AT & BV-L8200AT Actuated Ball Valves.
1

Key Features

We've simplified valve maintenance, allowing anyone to replace individual parts like seats and seals if needed. This approach significantly reduces the cost and simplifies preventive maintenance compared to traditional ball valves, which necessitate complete disassembly whenever something needs fixing or replacement.
2

Key Features

Air Torque provides a comprehensive range of pneumatic actuators that precisely match your requirements. Our actuators are competitively priced, ensuring that you get the best value from our products. They are ideal for various industrial automation projects.
3

Key Features

Air Torque Pneumatic Actuators deliver equivalent functionality to hydraulic actuators at a significantly lower cost, all while offering enhanced reliability and reduced maintenance expenses. This lightweight and compact device has been purposefully designed with valves in consideration.

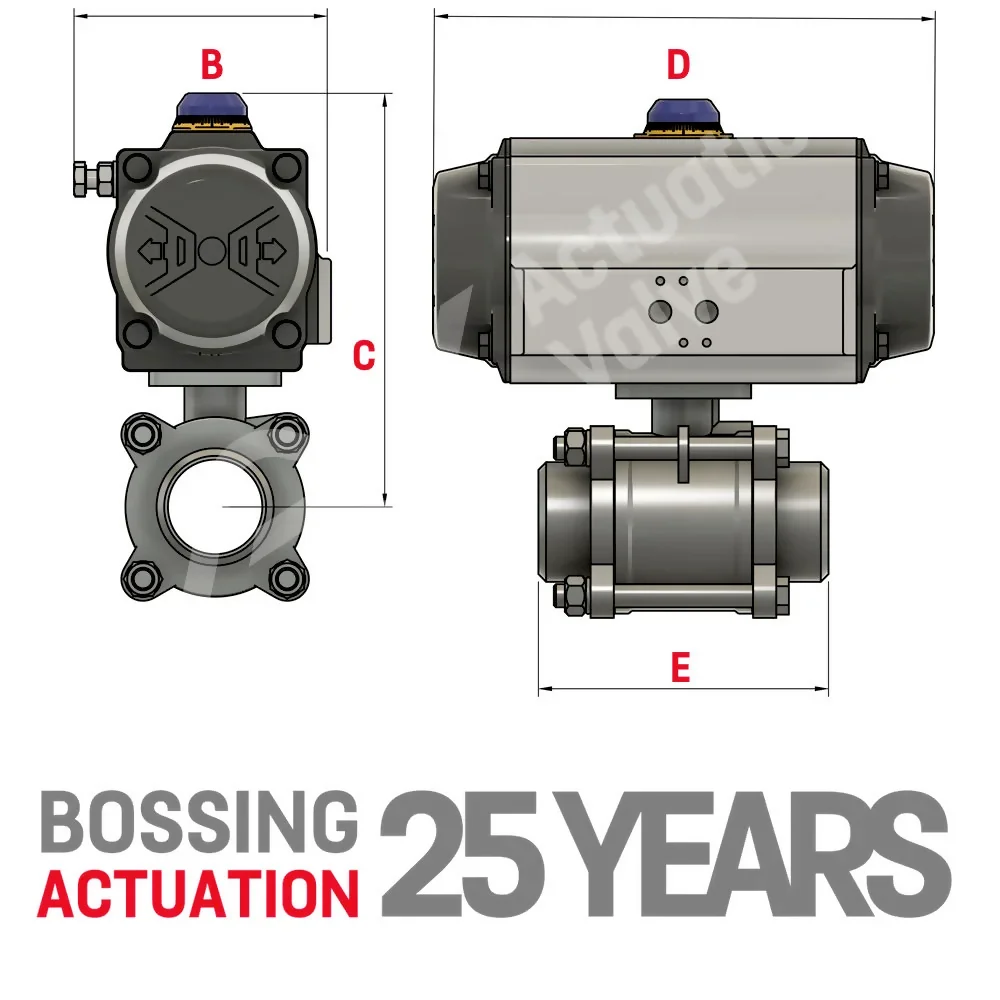

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
3/8" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
1/2" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
3/4" 84.50 156.00 153.50 80.00 72.00 140.00 137.00 80.00
1" 93.00 180.00 203.50 90.00 72.00 147.00 137.00 90.00
1 1/4" 93.00 185.00 203.50 110.00 84.50 168.00 153.50 110.00
1 1/2" 106.00 210.00 241.00 120.00 84.50 180.00 153.50 120.00
2" 118.50 233.00 259.00 140.00 93.00 208.00 203.50 140.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Butt Weld Technical Stuff

Butt Weld Valve 3D Stuff

B C S E B C D E
SR SR SR SR DA DA DA DA
1/4" 72.00 132.00 137.00 70.00 72.00 132.00 137.00 70.00
3/8" 72.00 132.00 137.00 70.00 72.00 132.00 137.00 70.00
1/2" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
3/4" 84.50 156.00 153.50 90.00 72.00 140.00 137.00 90.00
1" 93.00 180.00 203.50 100.00 72.00 147.00 137.00 100.00
1 1/4" 93.00 185.00 203.50 110.00 84.50 168.00 153.50 110.00
1 1/2" 106.00 210.00 241.00 125.00 84.50 180.00 153.50 125.00
2" 233.00 233.00 259.00 150.00 93.00 208.00 203.50 150.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT451
  • Document
DRAWINGS & SCHEMATICS

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • PDF
DRAWINGS & SCHEMATICS

AT601
  • PDF
DRAWINGS & SCHEMATICS

AT651
  • PDF
DRAWINGS & SCHEMATICS

AT701

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SAFETY MANUAL
  • PDF
CERTIFICATES & APPROVALS

BUREAU VERITAS

Air Torque Actuator Videos

Aluminium
Stainless Steel
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
