Heavy Duty Stainless Steel Hytork Actuated Ball Valves

The BV-L8000XL, BV-L8100XL, and BV-L8200XL, comprising a trio of three-piece full-bore, heavy-duty actuated ball valves, feature a body and trim constructed from ASTM A351 CF8M 316 stainless steel, along with TFM 4215 seats containing 25% carbon fill. These valves come in nominal bore sizes ranging from 1/4" to 2". The isolation ball valve is not only fully maintainable but also highly reliable, boasting a firesafe design and ATEX certification. Additional options encompass 50% stainless steel-filled seats and V-Ball modulation.
Shop Help Me

Key Features

Key features and benefits of BV-L8000XL, BV-L8100XL & BV-L8200XL Actuated Ball Valves.
1

Key Features

Our pneumatically operated rack and pinion system not only enhances precision beyond traditional designs but also significantly extends the lifespan of your components by safeguarding against excessive wear and tear. Don't hesitate to reach out to us today for further details on how we can enhance the performance of your application!
2

Key Features

Engineered to deliver the utmost quality at the most competitive market prices, the Hytork XL product boasts straightforward installation and usage, requiring no special tools during setup or operation. Additionally, we offer competitive warranties for standard operational use.
3

Key Features

The BV-L8000FS heavy-duty ball valve is ideal for use in demanding industrial applications that may involve higher pressure levels or elevated temperatures. This valve is equipped with PTFE TFM 4215 ball seats and grafoil stem sealing, ensuring reliable performance.

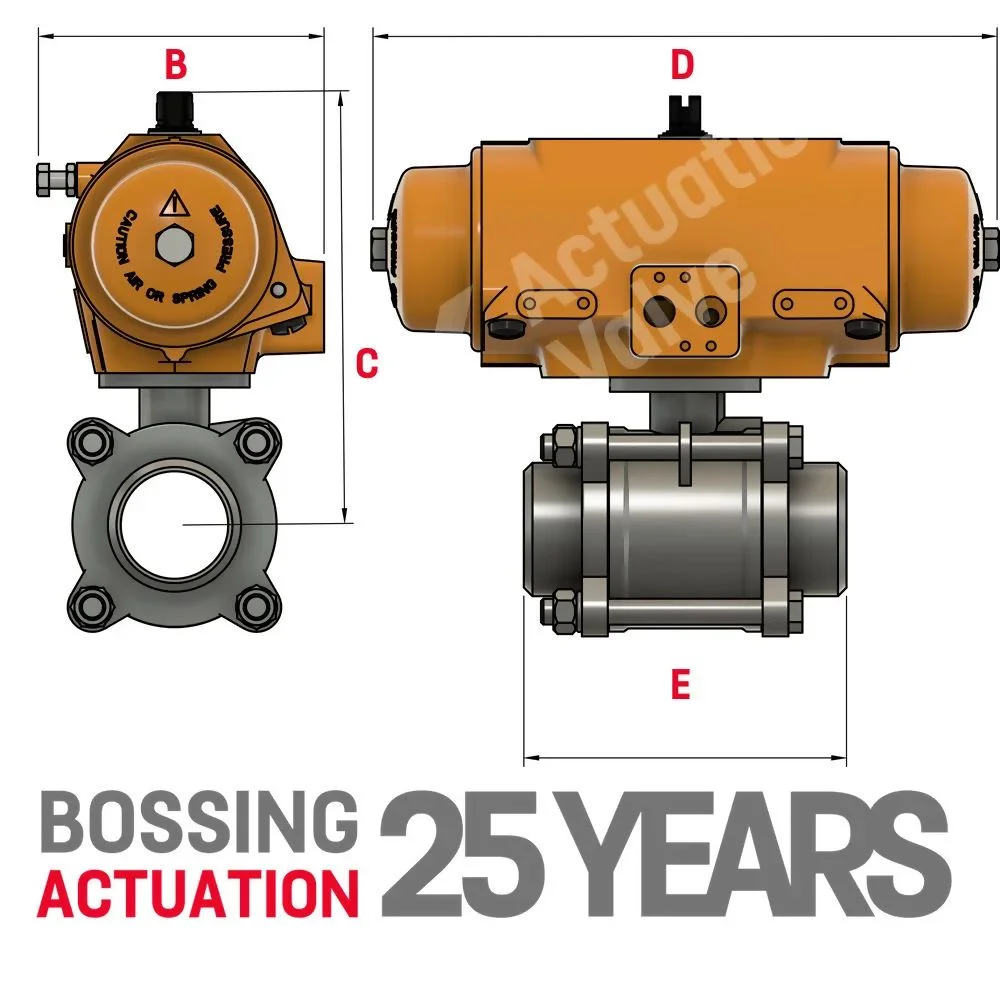

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
3/8" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
1/2" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
3/4" 97.00 155.50 165.00 80.00 97.00 155.50 165.00 80.00
1" 116.50 180.40 221.80 90.00 97.00 162.50 165.00 90.00
1 1/4" 116.50 185.40 221.80 110.00 116.50 185.40 221.80 110.00
1 1/2" 116.50 197.40 221.80 120.00 116.50 197.40 221.80 120.00
2" 133.50 224.40 292.00 140.00 133.50 224.40 292.00 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

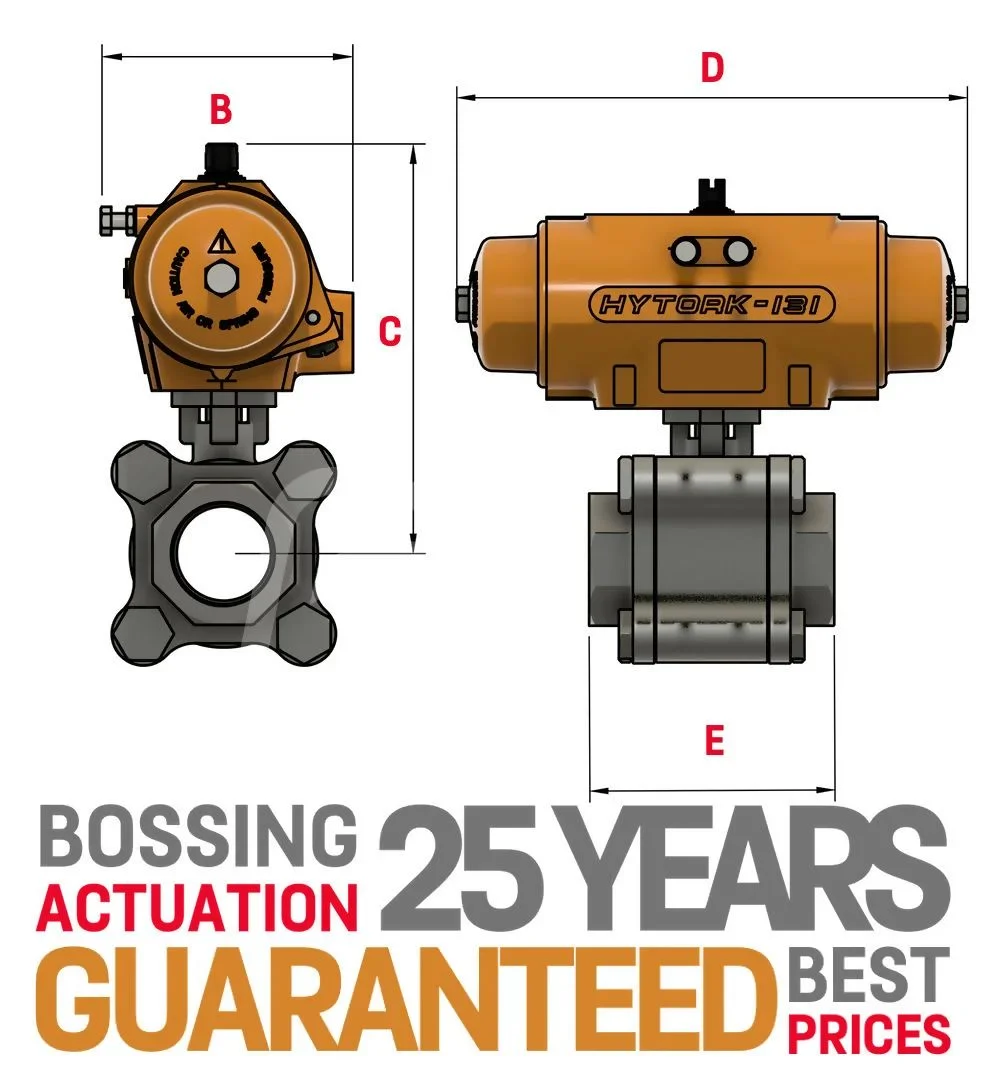

Butt Weld Technical Stuff

Butt Weld Valve 3D Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 147.50 165.00 70.00 97.00 147.50 165.00 70.00
3/8" 97.00 147.50 165.00 70.00 97.00 147.50 165.00 70.00
1/2" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
3/4" 97.00 155.50 165.00 90.00 97.00 155.50 165.00 90.00
1" 116.50 180.40 221.80 100.00 97.00 162.50 165.00 100.00
1 1/4" 116.50 185.40 221.80 110.00 97.00 167.50 165.00 110.00
1 1/2" 116.50 197.40 221.80 125.00 116.50 197.40 221.80 125.00
2" 133.50 133.50 292.00 150.00 133.50 224.40 292.00 150.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
