The Actreg Pneumatic Actuator features a specially coated steel piston and uses high-quality materials suited for challenging environments like dust, humidity, or dirt. It includes a 3-Way guide to minimise friction, enhancing the lifespan and dependability of the pistons. Designed for extreme conditions, the Actreg actuator operates effectively in temperatures ranging from -55ºC to 150ºC, thanks to specialised FKM and Silicone o’rings. It supports NAMUR mounting (VDE/VDI 3845) for straightforward integration with additional devices like solenoid valves and valve position monitors. BallValve also offers a selection of accessories for the actuator.

Shop Help Me

Key features and benefits of BV-L91B0AC & BV-L9CB0AC Actuated Ball Valves.

Key Features

Integration into existing systems is effortless, thanks to the use of industry-standard NAMUR mountings (VDE/VDI 3845). This standardisation permits users to seamlessly incorporate the unit into future upgrades or replacements without the need for a complete system redesign.

Key Features

The Actreg Pneumatic Actuator adheres to ISO 5211 standards and features a star drive, offering added flexibility and ease for direct mounting to valve spindles or output shafts. This facilitates a straightforward conversion from an electric system to a pneumatic one if needed.

Key Features

Our rack and pinion system, operated pneumatically, offers greater precision compared to traditional designs. It also prolongs the lifespan of your components by safeguarding against excessive wear. Reach out to us today for further details on how we can enhance your application!

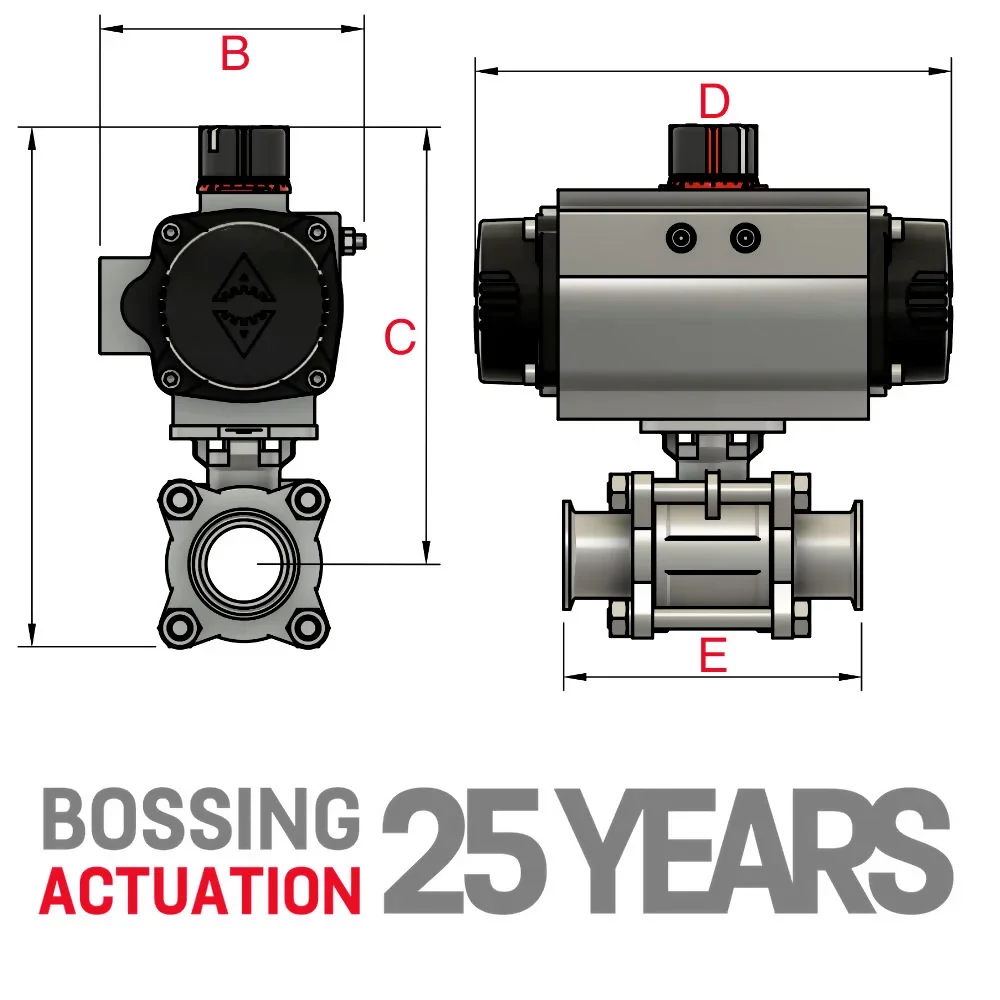

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DAD	DA
1/2"	81.00	138.00	163.00	90.00	81.00	138.00	145.00	90.00
3/4"	81.00	145.00	163.00	90.00	81.00	145.00	145.00	90.00
1"	96.00	173.00	195.00	100.00	96.00	173.00	158.00	100.00
1 1/4"	116.00	208.00	217.00	125.00	116.00	208.00	177.00	125.00
1 1/2"	116.00	215.00	217.00	150.00	116.00	215.00	177.00	150.00
2"	127.00	247.00	258.00	190.00	127.00	247.00	196.00	190.00
2 1/2"	140.00	274.00	299.00	220.00	140.00	274.00	225.00	220.00
3"	157.00	322.00	348.50	270.00	157.00	322.00	273.00	270.00

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

DRAWINGS & SCHEMATICS

Every actuated valve assembly undergoes thorough testing and calibration by our skilled team of technical engineers before being packed and shipped. This ensures that upon arrival at your location, the assemblies are installation-ready, allowing for swift resumption of your production operations.

DRAWINGS & SCHEMATICS


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600® Cavity Filled Seats & Seals
Seat Approvals:	3A, FDA & Wras Approved
Cleaning:	Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard:	MSS SP-110, BS4825
Surface Finish:	Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing:	MSS SP-110
Face 2 Face:	ASME B16.10
Pressure Rating:	400 PSI

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

DRAWINGS & SCHEMATICS

CERTIFICATES & APPROVALS

Actreg Actuator Videos

Spring Change

Stroke Adjustment

Please feel free to request information and advice using the form below or call us on 0151 547 1221

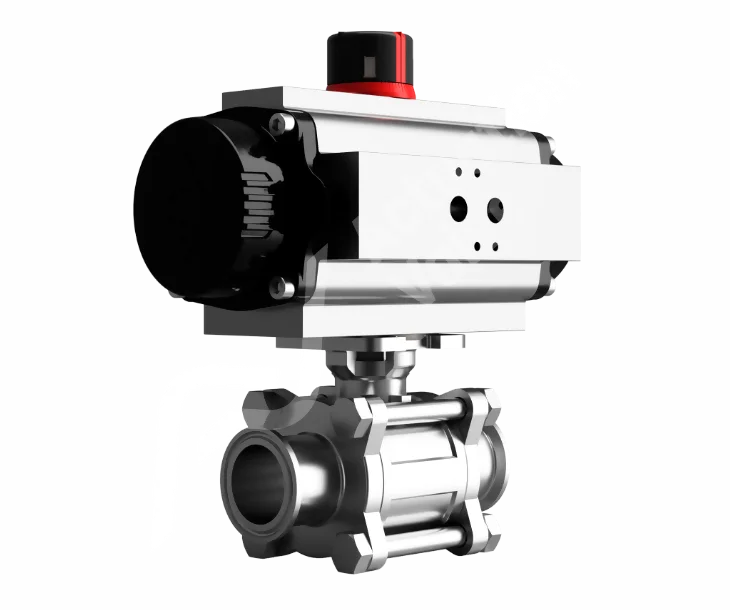

Hygienic Tri Clamp-Weld OD Actreg Actuator Actuated Ball Valves
