Hygienic Tri Clamp-Weld OD Rotork ROM Actuator Valves§

The BV-L91B0ROM & BV-L9CB0ROM models are integral to the sanitary and hygienic full bore actuated valve packages offered by Actuation Valve. These valves feature a three-piece body design with a swing-out centre section, ideal for regular maintenance and seat replacements. The full bore body design and cavity-filled seats ensure a debris-free flow path, suitable for steam cleaning CIP and SIS at temperatures up to 200°C. The valves boast various certifications, including FDA & WRAS-approved seats, and are guaranteed bovine-free. We offer a wide range of ready-to-ship solutions as well as custom-engineered products from our UK facility, coupled with unparalleled customer service. Our global support teams are dedicated to providing swift delivery and ongoing, accessible support.

Key Features

Key features and benefits of BV-L91B0ROM & BV-L9CB0ROM Actuated Ball Valves.
1

Key Features

The Rotork ROM electric actuator ensures continuous visibility of its current position, even during power outages. This feature allows for immediate action to maintain smooth and efficient production processes in the event of a power failure.
2

Key Features

Designed to offer superior cost-effectiveness compared to lower quality alternatives, the Rotork ROM electric actuator enhances the efficiency of process and plant equipment, minimising downtime and maintenance needs.
3

Key Features

Rotork's electric actuator is built to endure tough conditions. It is capable of withstanding submersion up to 10 metres, resilient to shock and vibration, and maintains consistent performance across varying temperature ranges.

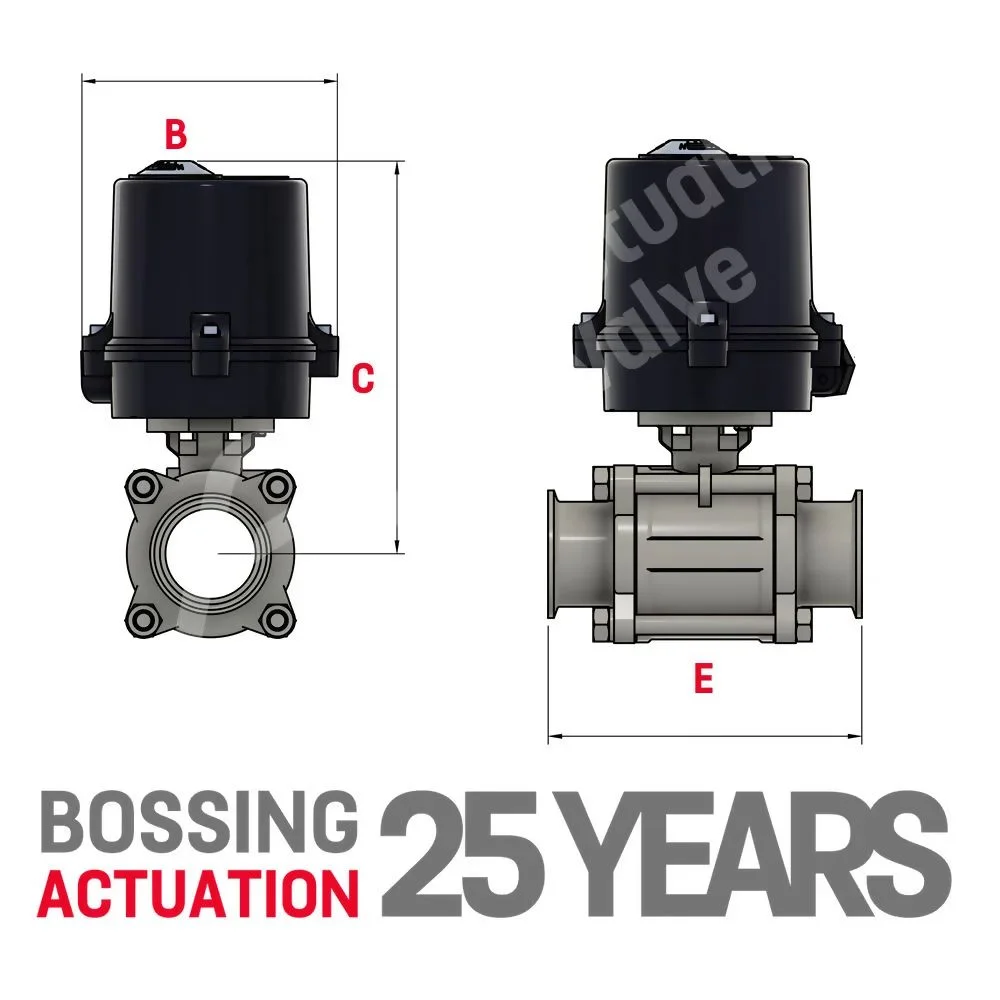

Tri Clamp Technical Stuff

B C D Model
1/2" 114.00 178.00 90.00 ROM-1
3/4" 114.00 185.00 90.00 ROM-1
1" 114.00 194.00 100.00 ROM-1
1 1/4" TBA TBA TBA TBA
1 1/2" 114.00 207.00 125.00 ROM-1
2" 114.00 247.00 150.00 ROM-A
2 1/2" 196.00 412.00 190.00 ROM-2
3" 196.00 421.00 220.00 ROM-3
4" 196.00 517.00 270.00 ROM-3

Tri Clamp 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Weld OD 3D Stuff

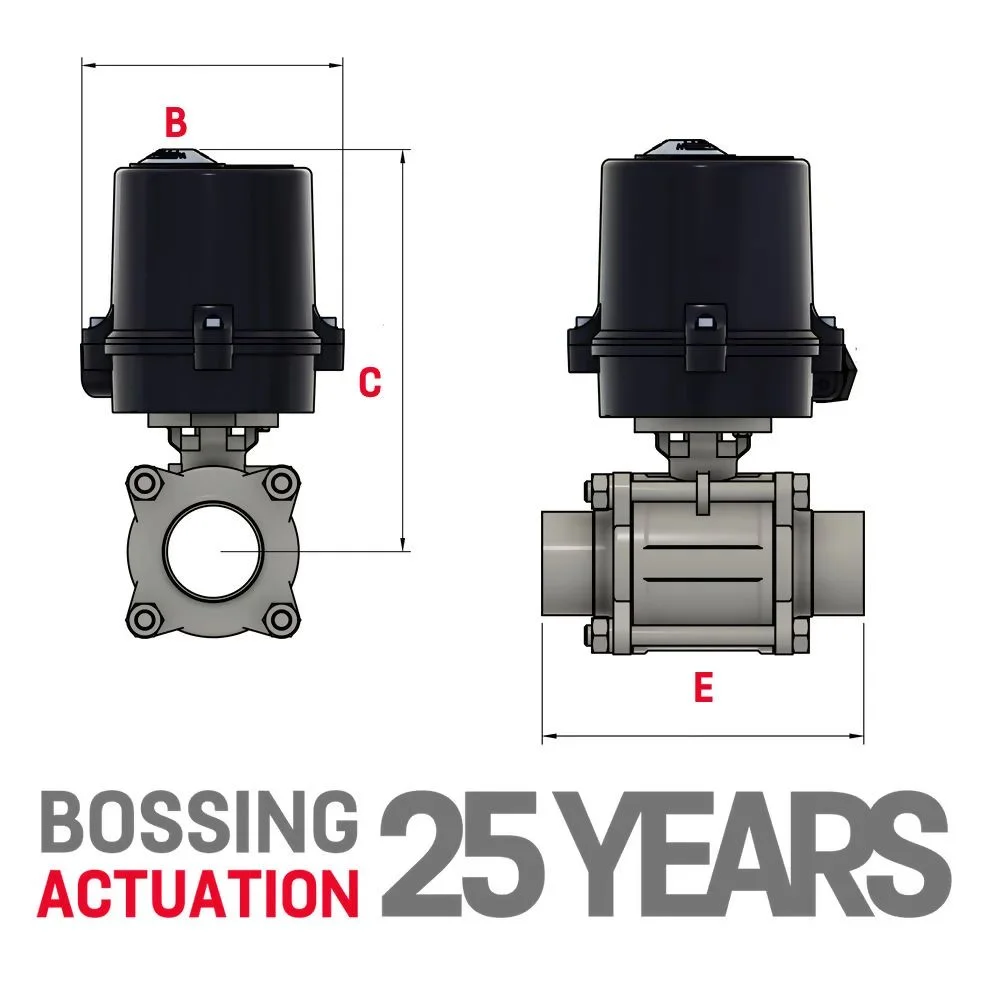

Weld OD Technical Stuff

B C D Model
1/2" 114.00 178.00 90.00 ROM-1
3/4" 114.00 185.00 90.00 ROM-1
1" 114.00 194.00 100.00 ROM-1
1 1/4" TBA TBA TBA TBA
1 1/2" 114.00 207.00 125.00 ROM-1
2" 114.00 247.00 150.00 ROM-A
2 1/2" 196.00 412.00 190.00 ROM-2
3" 196.00 421.00 220.00 ROM-3
4" 196.00 517.00 270.00 ROM-3

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI
