Electric Hygienic Tri Clamp-Weld OD Koei Actuator Valves

The BV-L91B0EK & BV-L9CB0EK are integral components of the complete bore actuated valve solutions offered by BallValve. These valves, featuring a three-piece body, are equipped with a swing-out centre section that facilitates easy maintenance and seat replacements. Their full bore design and cavity-filled seats ensure an obstruction-free flow, effectively preventing the accumulation of debris or contaminants. These valves are suitable for temperatures up to 200°C, ideal for steam cleaning, CIP (Clean-in-Place), and SIS (Safety Instrumented Systems). They come with various certifications, including FDA and WRAS-approved seats, and are guaranteed to be free from bovine materials. Employing Koei UNIC actuators, these valves are highly sought after in challenging settings like food processing plants, beverage manufacturers, pharmaceutical industries, and various other industrial applications where dependable control systems are essential, without compromising on efficiency or cost-effectiveness.
Shop Help Me

Key Features

Key features and benefits of BV-L91B0EK & BV-L9CB0EK Actuated Ball Valves.
1

Key Features

The Koei UNIC electric actuator, by consistently delivering dependable performance year upon year, eradicates the necessity for pricey service agreements and exorbitant equipment renewals, ensuring uninterrupted production without any downtime. This actuator seamlessly integrates with pre-existing machinery.
2

Key Features

Compact and innovative, the Koei UNIC Electric Actuator operates smoothly across all speed ranges, even in highly dynamic environments. It's the ideal choice for your upcoming high-impact projects.
3

Key Features

Installation and operation of this actuator are straightforward. Each unit is supplied with comprehensive operation and maintenance manuals as standard, along with complimentary post-sale support. You'll have access to all necessary information to maintain optimal equipment performance.

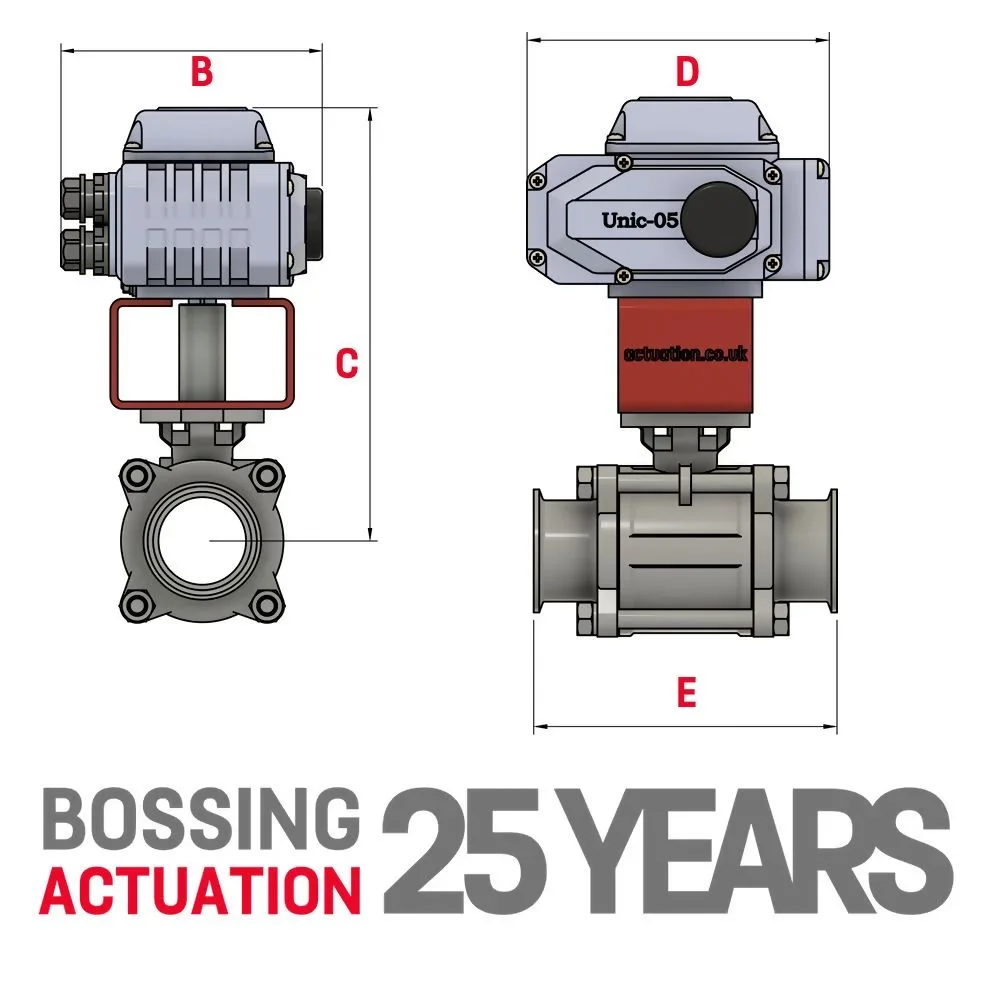

Tri Clamp Technical Stuff

B C D E Model
1/2" 145.00 218.00 159.00 90.00 UNIC 05
3/4" 145.00 225.00 159.00 90.00 UNIC 05
1" 145.00 234.00 159.00 100.00 UNIC 05
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 145.00 247.00 159.00 125.00 UNIC 05
2" 155.00 280.00 208.00 150.00 UNIC 10
2 1/2" 155.00 302.00 208.00 190.00 UNIC 10
3" 155.00 311.00 208.00 220.00 UNIC 10
4" 187.00 350.00 257.00 270.00 UNIC 20

Tri Clamp 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Weld OD 3D Stuff

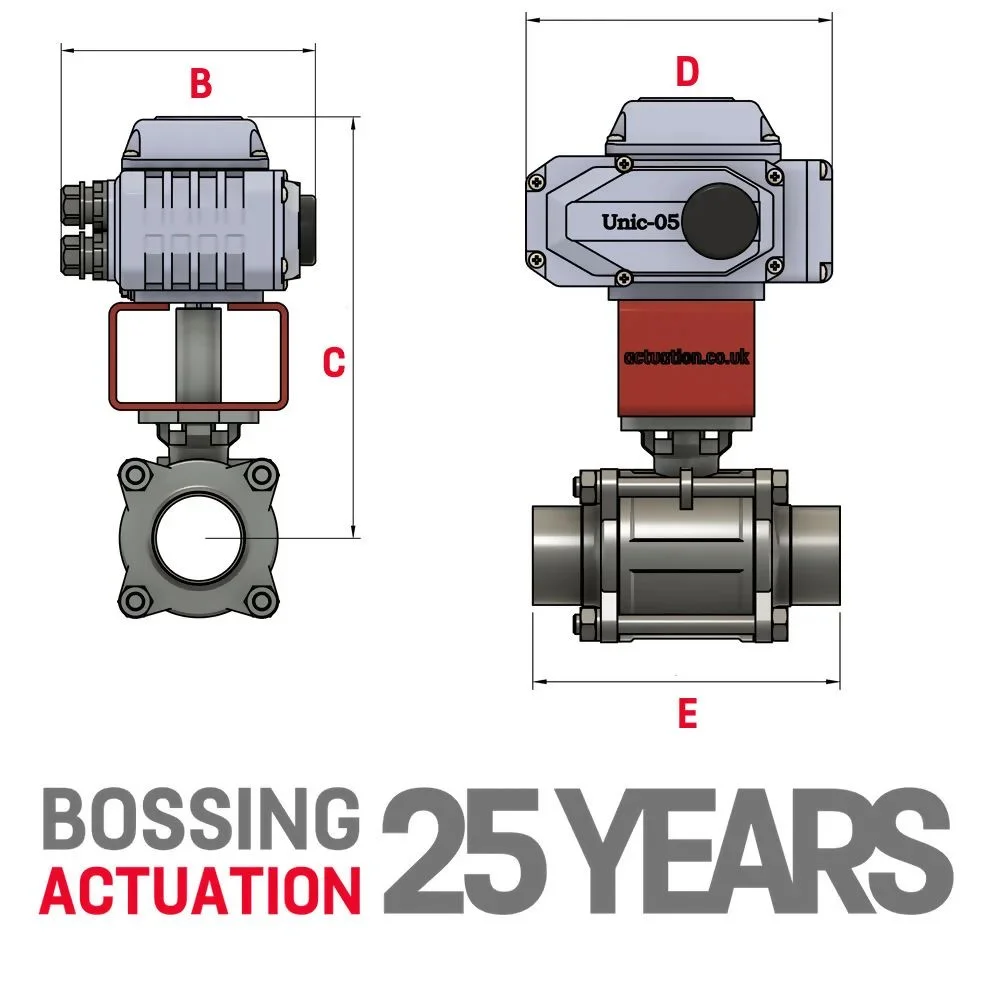

Weld OD Technical Stuff

B C D E Model
1/2" 145.00 218.00 159.00 90.00 UNIC 05
3/4" 145.00 225.00 159.00 90.00 UNIC 05
1" 145.00 234.00 159.00 100.00 UNIC 05
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 145.00 247.00 159.00 125.00 UNIC 05
2" 155.00 280.00 208.00 150.00 UNIC 10
2 1/2" 155.00 302.00 208.00 190.00 UNIC 10
3" 155.00 311.00 208.00 220.00 UNIC 10
4" 187.00 350.00 257.00 270.00 UNIC 20

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
Brochures

Koei UNIC
  • PDF
Certificates & Approvals

CE Declaration
  • PDF
Certificates & Approvals

Nema UL
  • PDF
Operations

AC Actuators
  • PDF
Operations

DC Actuators
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
