Hygienic Tri Clamp-Weld OD Hytork Actuator Valves

The BV-L91B0XL and BV-L9CB0XL are integral components of BallValve's sanitary and hygienic full-bore actuated valve solutions. These valves feature a three-piece body design with a swing-out centre section, making them ideal for planned maintenance and seat replacements. The full-bore body design, along with cavity-filled seats, ensures a unobstructed flow path, preventing the accumulation of debris or contaminants. These valves can withstand temperatures suitable for up to 200°C during steam cleaning (CIP) and SIS procedures. Additionally, they come with various approvals, including FDA and WRAS certifications for the seats, guaranteeing a bovine-free supply.
Shop Help Me

Key Features

Key features and benefits of BV-L91B0XL & BV-L9CB0XL Actuated Ball Valves.
1

Key Features

The bi-directional travel stops simplify the adjustment of the valve stroke, thereby averting premature valve failures. Our Pneumatic Actuators can seamlessly integrate with commonly used auxiliary components such as solenoid valves, position switches, gauges, and pressure regulators.
2

Key Features

The straightforward installation procedures, accompanied by provided instructions, enable you to have your system up and running swiftly. The patented design of SAFEKEt prevents external contamination and eliminates stress concentrations resulting from point loading.
3

Key Features

Designed with exceptionally high mechanical strength, these actuators can endure heavy loads, even when exposed to external forces like shocks or impacts. This makes them particularly well-suited for deployment in challenging environments such as mining or construction sites, ensuring long-lasting durability.

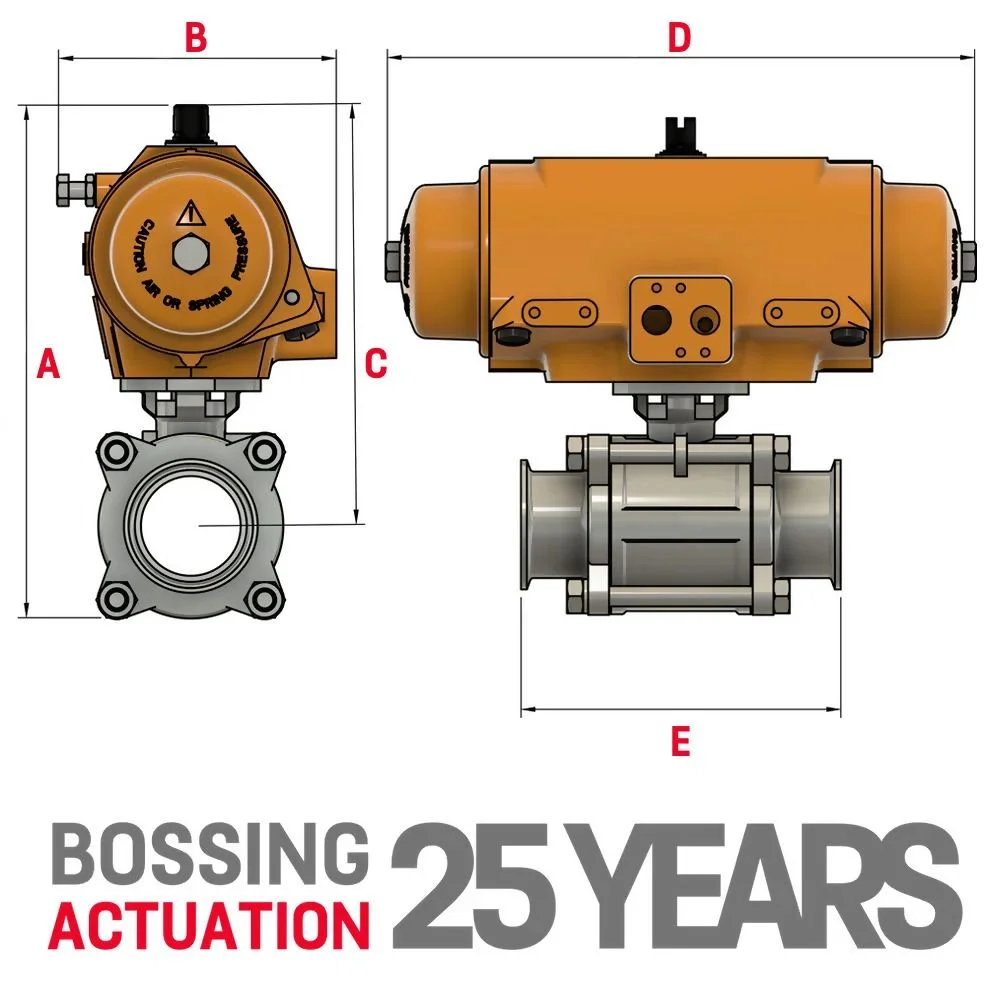

Tri Clamp Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 97.00 146.50 165.00 90.00 97.00 146.50 165.00 90.00
3/4" 97.00 153.50 165.00 90.00 97.00 153.50 165.00 90.00
1" 116.50 180.40 221.80 100.00 116.50 180.40 221.80 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 116.50 193.40 221.80 125.00 116.50 193.40 221.80 125.00
2" 133.50 216.40 292.00 150.00 116.50 200.40 221.80 150.00
2 1/2" 143.10 244.05 331.60 190.00 133.50 238.40 292.00 190.00
3" 158.50 268.90 349.80 220.00 143.10 253.05 331.60 220.00
4" 174.00 309.00 462.00 270.00 158.50 299.90 349.80 270.00
5" TBA TBA TBA TBA TBA TBA TBA TBA

Tri Clamp 3D Stuff

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Weld OD 3D Stuff

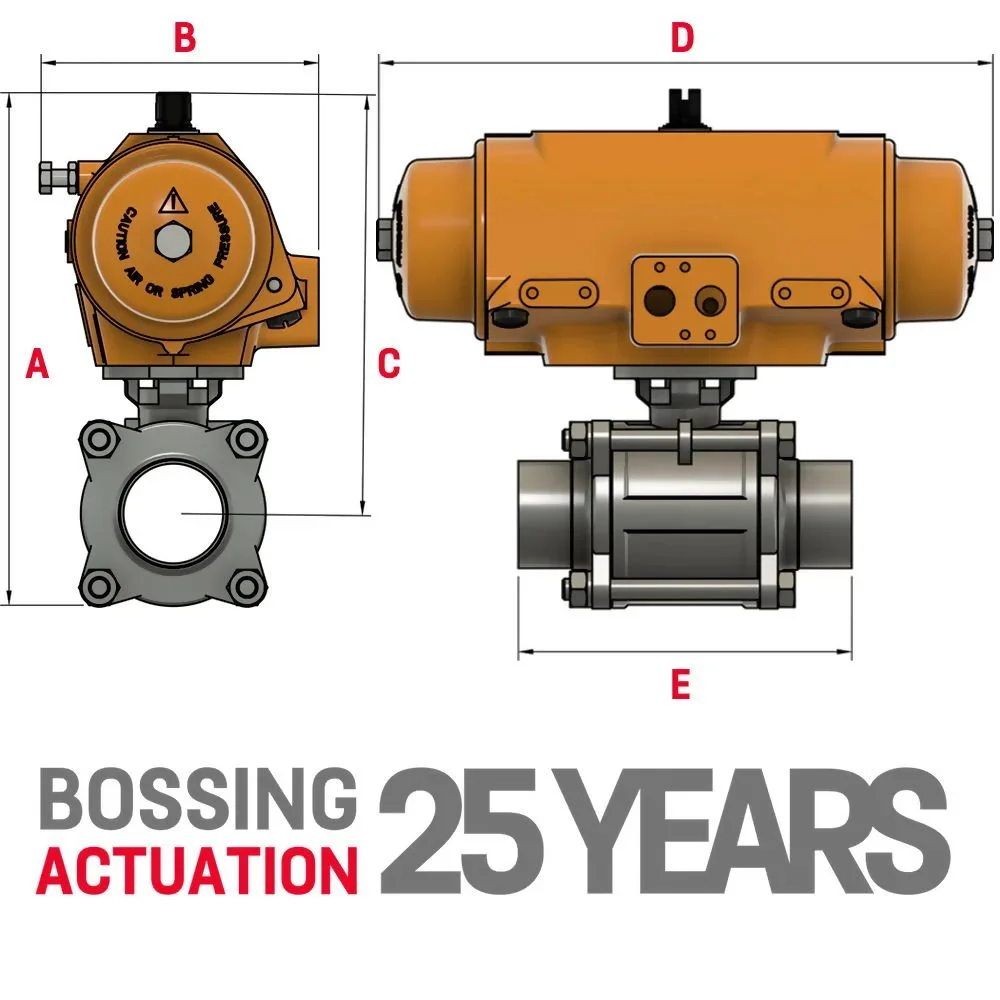

Weld OD Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 97.00 146.50 165.00 90.00 97.00 146.50 165.00 90.00
3/4" 97.00 153.50 165.00 90.00 97.00 153.50 165.00 90.00
1" 116.50 180.40 221.80 100.00 116.50 180.40 221.80 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 116.50 193.40 221.80 125.00 116.50 193.40 221.80 125.00
2" 133.50 216.40 292.00 150.00 116.50 200.40 221.80 150.00
2 1/2" 143.10 244.05 331.60 190.00 133.50 238.40 292.00 190.00
3" 158.50 268.90 349.80 220.00 143.10 253.05 331.60 220.00
4" 174.00 309.00 462.00 270.00 158.50 299.90 349.80 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
