PVC Imperial ISO Top Ball Valves with FPM Seal

The Challenger PVC Imperial ISO Top Ball Valves feature an FPM seal and are designed for solvent weld connections. This 1" U-PVC Plain Excel Ball ISO Top Double Union Ball Valve is equipped with an ISO top, allowing for actuator attachment directly without extra brackets, enhancing its utility and efficiency in valve applications.

Key Features

Key features and benefits of PVC Imperial ISO Top Ball Valves with FPM Seal
1

Key Features

The Challenger PVC Imperial ISO Top Ball Valve incorporates an FPM seal, known for its excellent chemical resistance and high temperature tolerance. This feature makes the valve exceptionally suitable for handling a wide range of fluids, ensuring a tight seal and long-lasting durability in demanding environments.
2

Key Features

Designed for solvent weld connections, this valve ensures a robust and permanent joint with the piping system. The solvent weld process creates a seamless and strong bond between the valve and pipes, significantly reducing the risk of leaks and enhancing the overall integrity of the fluid handling system.
3

Key Features

The innovative ISO top design of the valve streamlines the process of actuator installation. By eliminating the need for additional brackets or adapters, this feature simplifies the assembly and maintenance of automated valve systems. It offers flexibility and ease of use for various industrial applications, allowing for straightforward integration into automated processes.

Valve Specifications

D PART NO d1 d2 d3 d4 d5 d6 Z1 Z2 C E S
1" 021.66I1.04R–ISO 32 73 25 42 5.5 54 63 60.5 108 11 11
1 1/2" 021.66I1.06R–ISO 50 102 40 50 6.5 65 85.5 81.5 148 15 14
2" 021.66I1.07R–ISO 63 124 50 50 6.5 65 101 93.5 178 15 14

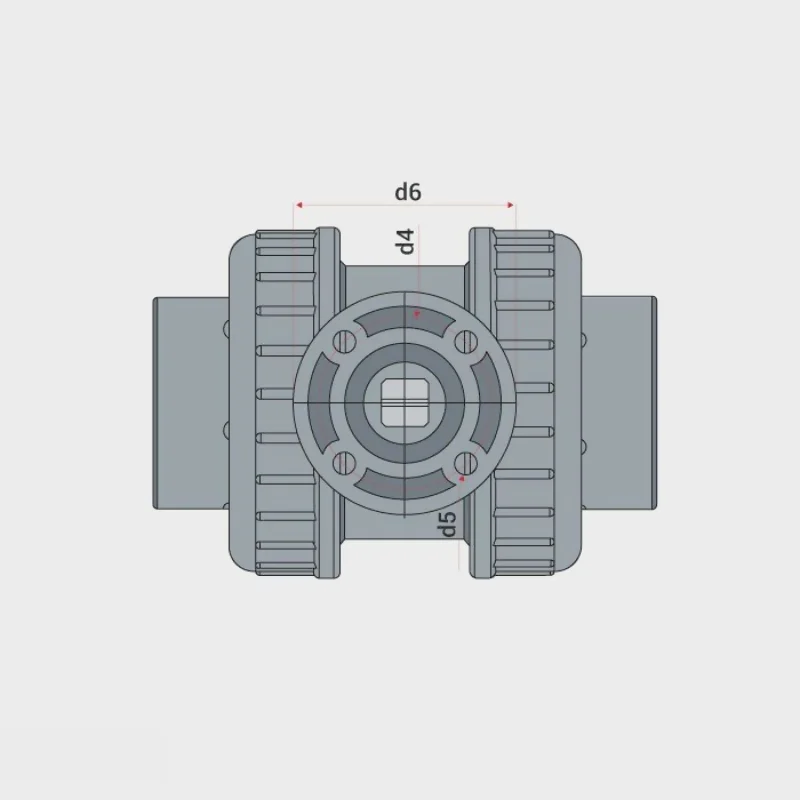

Valve Diagram

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Competitive Pricing

Explore our range of high-quality actuated ball valves, meticulously engineered for superior performance and lasting durability. Offering exceptional value, our products are priced competitively, ensuring you get the best in industry standards without straining your budget.

Frequently Asked Questions

Plastic ball valves are versatile components used in various applications to control the flow of liquids and gases. They are commonly employed in residential plumbing, industrial processes, water treatment facilities, and chemical handling due to their corrosion resistance, lightweight nature, and cost-effectiveness compared to metal valves.

Ball valves are made from different types of plastic, including PVC (Polyvinyl Chloride), CPVC (Chlorinated Polyvinyl Chloride), PP (Polypropylene), and PVDF (Polyvinylidene Fluoride). Each type offers distinct advantages, such as chemical resistance, temperature tolerance, and durability, making them suitable for specific applications.

Selecting the right plastic ball valve involves considering factors like the type of fluid, pressure requirements, temperature range, chemical compatibility, and connection type. Consulting with a valve specialist or referring to manufacturer guidelines can ensure you choose a valve that meets your system's specifications.

Yes, certain plastic ball valves, especially those made from CPVC or PVDF, are designed to handle hot water applications. These materials can withstand higher temperatures, making them suitable for hot water systems, provided they are within the valve's specified temperature range.

Plastic ball valves are generally easy to install due to their lightweight nature and the availability of various connection types, such as threaded, solvent cement, or flanged. Proper installation involves ensuring a clean, tight fit and following the manufacturer's instructions for the best performance.

Maintenance for plastic ball valves typically involves periodic inspection for leaks or damage, ensuring smooth operation of the handle, and cleaning any debris from the valve's interior. Avoid using harsh chemicals or abrasive tools that could damage the valve's plastic components.

The lifespan of a plastic ball valve can vary based on the application, frequency of use, and exposure to chemicals or extreme temperatures. However, when properly selected and maintained, these valves can last for many years without the need for replacement.

While some plastic ball valves can be disassembled for cleaning or replacing seals, extensive repairs are often not feasible due to the nature of their construction. In cases of significant damage or wear, replacing the valve is usually the most cost-effective solution.

The advantages of using plastic ball valves over metal ones include corrosion resistance, lighter weight, lower cost, and reduced risk of contamination in sensitive applications. These benefits make plastic valves an attractive option for many industries.

Plastic ball valves are effective in controlling flow and handling pressure within their specified limits. They provide a tight seal when closed and allow for precise control of flow when partially or fully opened. The pressure-handling capabilities depend on the valve's design and the type of plastic used.

The main limitations of using plastic ball valves include sensitivity to high temperatures and certain chemicals, which can cause the valve material to degrade or warp. It's crucial to select a valve material compatible with the specific conditions of your application.
