Sapag 1 Piece Ball Valves

SAPAG 1-Piece Ball Valves offer a robust and efficient solution for industrial fluid control. Designed with a solid, single-body construction, these valves ensure exceptional durability and long-lasting performance. Manufactured from high-quality materials, they provide superior resistance to wear, corrosion, and demanding operating conditions. With their compact design, SAPAG 1-Piece Ball Valves are easy to install and maintain, making them an ideal choice for industries requiring reliable, low-maintenance flow regulation. Whether used in general fluid handling or more specialised applications, these valves deliver consistent and efficient performance.

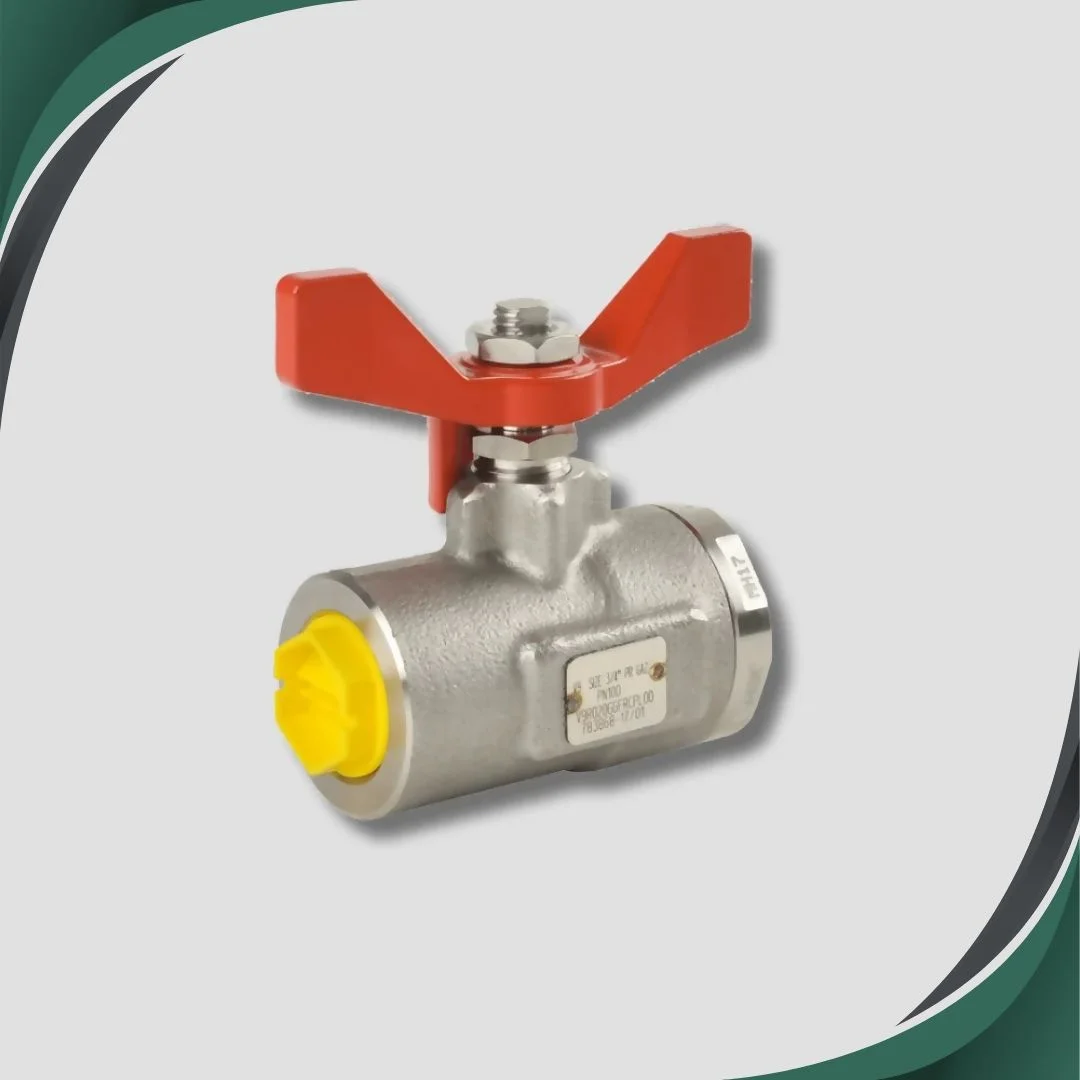

SAPAG GACHOT® V9, V29 & V59 1-Piece Ball Valves

The SAPAG GACHOT® V9, V29, and V59 1-Piece Ball Valves deliver a versatile and reliable solution for various industrial applications. Available in sizes ranging from DN8 to DN50 (0.25" to 2"), these valves are designed to handle pressures up to 130 bar with ease. They operate efficiently in extreme temperatures, from -50°C to 225°C, making them suitable for demanding environments.

These valves support a wide range of end connections, including PN20, PN50, BW, SW, Tapped, and Flange PN20/PN50, offering flexibility in system integration. Certified by Bureau Veritas, Fire Safe, and ATEX, they meet strict safety and performance standards, ensuring long-term reliability in critical applications.

Size Range: DN8 to DN50 (0.25" to 2")
Maximum Pressure: 130 bar
Temperature Range: -50°C to 225°C
End Connections: PN20, PN50, BW, SW, Tapped, & Flange PN20/PN50
Approvals: Bureau Veritas, Fire Safe, & ATEX
Find Out More

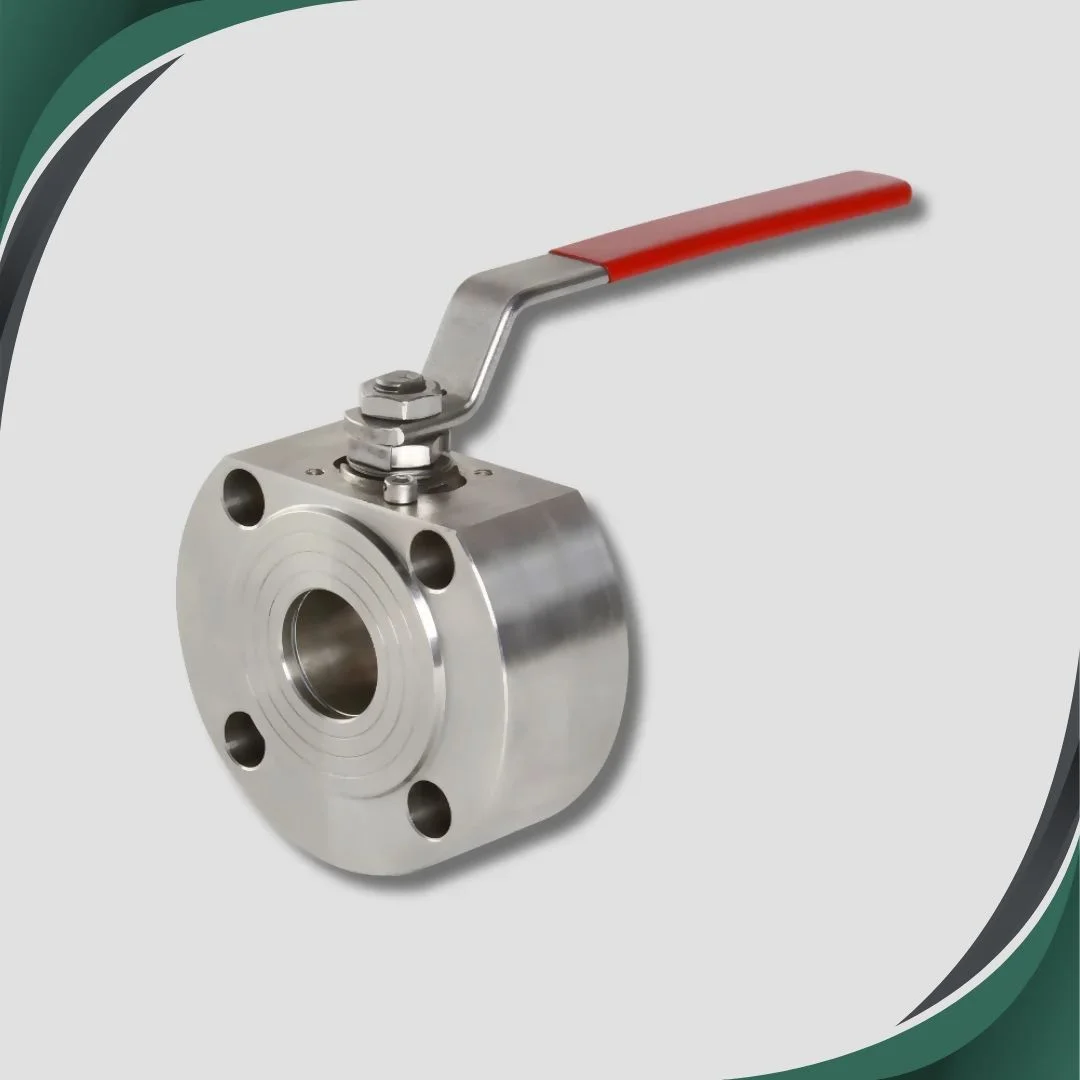

SAPAG GACHOT® V10 Full Bore 1-Piece Ball Valves

The SAPAG GACHOT® V10 Full Bore 1-Piece Ball Valves deliver high-performance flow control across various applications. Available in DN15 to DN100 (0.5" to 4"), these valves are built to withstand pressures up to 40 bar and operate efficiently in temperatures ranging from -20°C to 180°C.

Designed for versatile installation, they feature PN16/PN40 end connections, making them adaptable to different system requirements. Certified for fire safety, DVGW, TA-Luft, and ATEX compliance, these valves provide exceptional reliability and safety in even the most demanding industrial environments.

Size Range: DN15 to DN100 (0.5" to 4")
Maximum Pressure: 40 bar
Temperature Range: -20°C to 180°C
End Connections: PN16/PN40
Approvals: Fire safe, DVGW, TA-Luft, & ATEX
Find Out More

Frequently Asked Questions

What are Sapag Ball Valves used for?

Sapag Ball Valves are used for flow control in industrial applications, including oil & gas, chemical processing, water treatment, steam systems, and general fluid handling. They provide tight shut-off, minimal pressure drop, and long-lasting reliability.

What are the main types of Sapag Ball Valves?

Sapag offers a range of ball valves, including:

  • 1-Piece Ball Valves – Compact and durable for simple flow control.
  • 2-Piece Ball Valves – Easy to maintain with a split-body design.
  • 3-Piece Ball Valves – Modular construction for quick servicing.
  • GACHOT® and RTS Series – High-performance industrial ball valves.
What materials are Sapag Ball Valves made from?

Sapag Ball Valves are manufactured from stainless steel, carbon steel, and special alloys, ensuring resistance to corrosion, extreme temperatures, and high-pressure conditions.

What is the difference between Full Bore and Reduced Bore Sapag Ball Valves?
  • Full Bore (Full Port) – Allows maximum flow with minimal restriction, ideal for applications where high flow rates are required.
  • Reduced Bore (Reduced Port) – Has a smaller internal diameter, reducing flow capacity but providing cost savings and compact sizing.
Are Sapag Ball Valves suitable for high-pressure applications?

Yes, Sapag Ball Valves are designed to handle high-pressure environments, with some models rated for extreme industrial conditions. The choice of material and sealing technology ensures safe and efficient operation under high pressure.

How do Sapag 3-Piece Ball Valves benefit industrial applications?

Sapag 3-Piece Ball Valves allow for quick disassembly of the center section, making them ideal for applications requiring frequent maintenance or cleaning without removing the entire valve from the pipeline.

Do Sapag Ball Valves work with steam applications?

Yes, many Sapag Ball Valves, especially those made from stainless steel with high-temperature seals, are suitable for steam systems and other high-temperature applications.

What industries commonly use Sapag Ball Valves?

Sapag Ball Valves are widely used in:

  • Oil & Gas
  • Chemical & Petrochemical
  • Water Treatment
  • Food & Beverage
  • Power Generation
  • Steam & High-Temperature Systems
How do I choose between a Sapag 1-Piece, 2-Piece, or 3-Piece Ball Valve?
  • 1-Piece: Best for cost-effective, low-maintenance applications where disassembly is not needed.
  • 2-Piece: Offers a balance of durability and easy servicing.
  • 3-Piece: Ideal for frequent maintenance and cleaning without pipeline removal.
Are Sapag Ball Valves manually operated or automated?

Sapag Ball Valves are available in both manual (lever-operated) and automated (pneumatic or electric actuated) versions, providing flexibility based on operational needs.

How do I ensure proper maintenance of my Sapag Ball Valve?

Regular inspection, cleaning, and lubrication of moving parts help extend the valve's lifespan. For 3-piece designs, maintenance is easier since the valve body can be removed without disturbing pipeline connections.

Where can I buy genuine Sapag Ball Valves?
Ballvalve.co.uk!
