Sapag Ball Valves

Sapag Ball Valves are engineered to deliver exceptional flow control across various industrial applications. With a reputation for quality and durability, Sapag offers a comprehensive range of ball valves designed to meet the highest performance standards. From compact 1-piece designs to multi-piece configurations, each valve ensures optimal flow regulation, minimal pressure drop, and long service life.

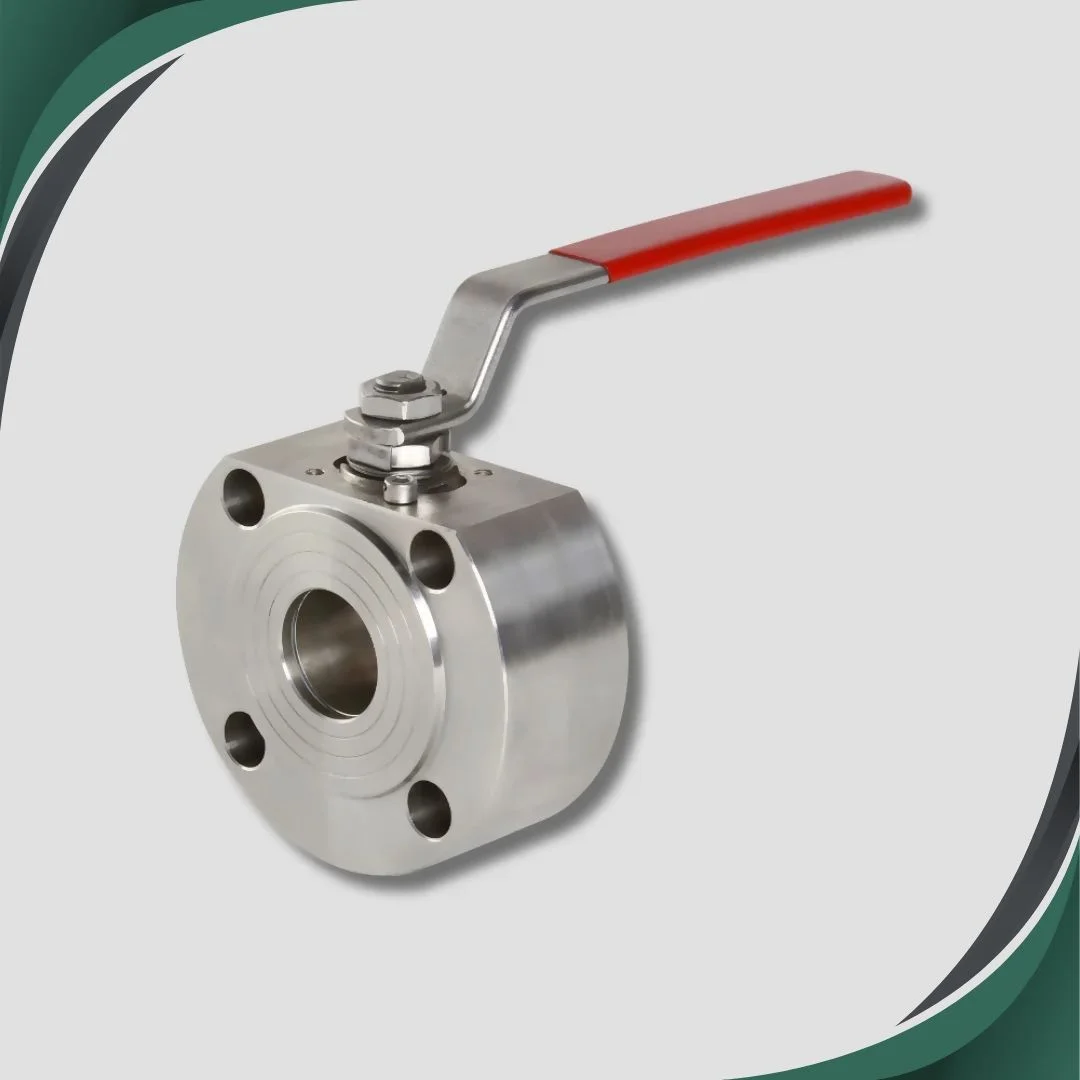

SAPAG 1 Piece Ball Valves

The Sapag 1-Piece Ball Valves provide a simple yet robust solution for flow control. These valves feature a compact, single-body construction, reducing potential leak paths and enhancing durability. Ideal for applications requiring space efficiency without compromising reliability, they offer smooth operation and tight shut-off capabilities.

Size Range: DN8 to DN100 (0.25" to 4")
Maximum Pressure: 130 bar
Temperature Range: -50°C to 225°C
End Connections: PN20/50 ISO5752 Series 3/4, BW, SW, Tapped, Flange PN20/50, & PN16/40
Models: V9 (V29/V59) & V10
Approvals: Bureau Veritas, Fire Safe, & ATEX
Find Out More

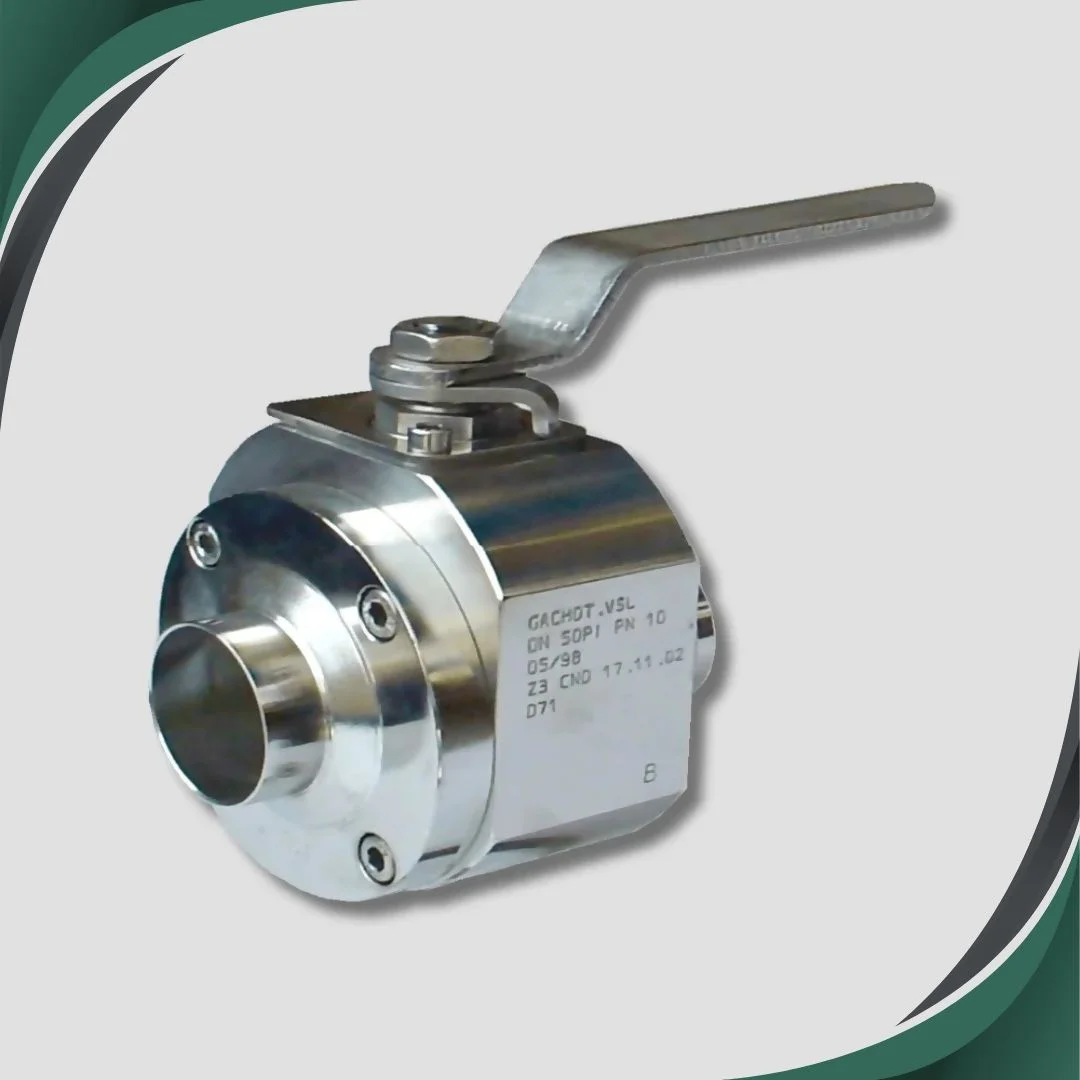

SAPAG 2 Piece Ball Valves

The SAPAG 2-Piece Ball Valves are engineered for durability and versatility, available in sizes from DN8 to DN150 (0.25" to 6"). Designed to handle pressures up to 40 bar and temperatures ranging from -50°C to 280°C, these valves are suitable for a wide range of applications. They come with multiple end connection options, including Flange PN16/40, SMS Sanitary Thread, SMS Tube, Wafer, and Lugged, ensuring seamless integration into various systems. The RTS Series 2 and VSL models are certified to Fire Safe, ATEX, and 3-A Sanitary Standards, delivering reliable performance and safety in demanding environments.

Size Range: DN8 to DN150 (0.25" to 6")
Maximum Pressure: 40 bar
Temperature Range: -50°C to 280°C
End Connections: Flange PN16/40, SMS Sanitary Thread, SMS Tube, Wafer, & Lugged
Models: RTS Series 2 & VSL
Approvals: Fire Safe, ATEX, & 3-A Sanitary Standards
Find Out More

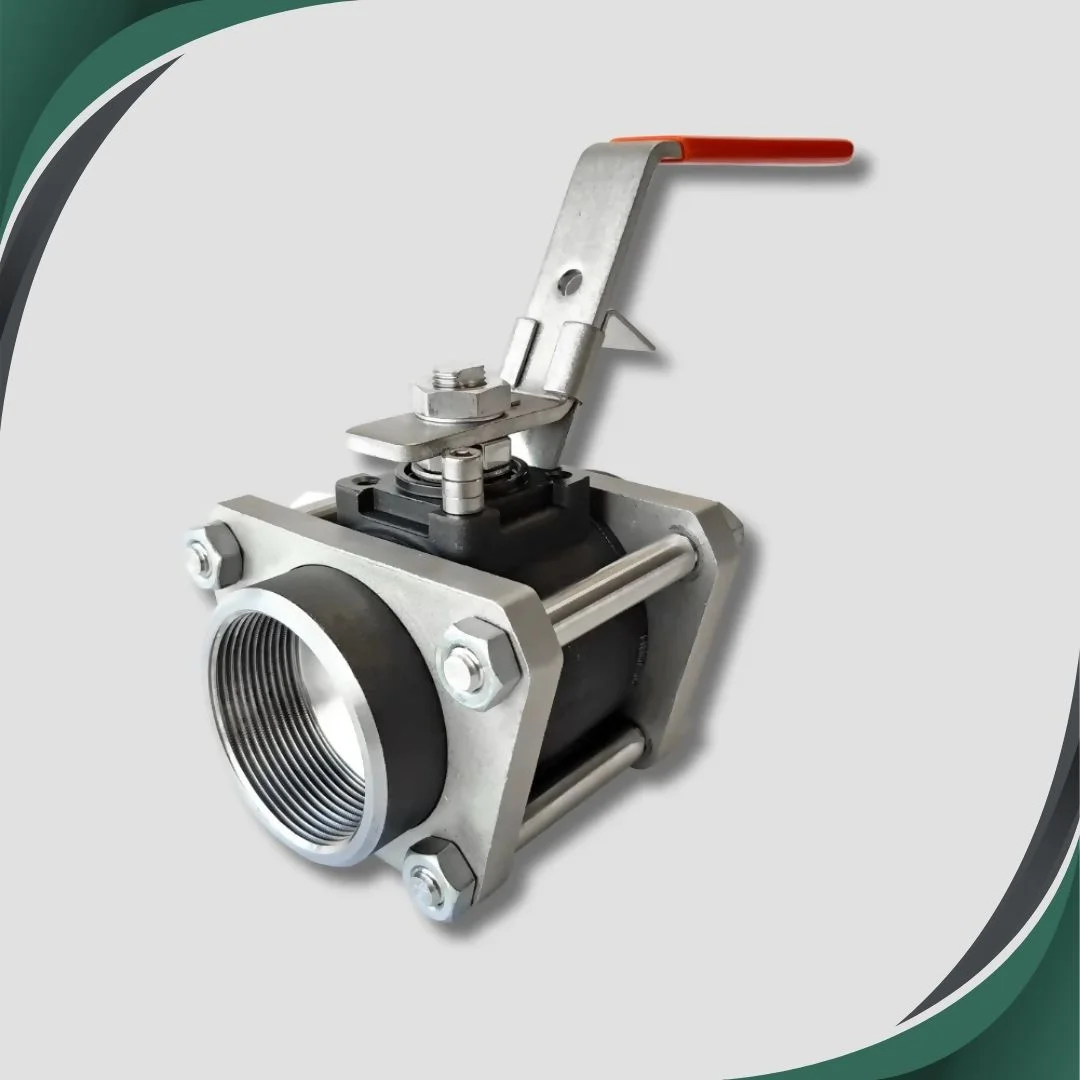

SAPAG 3 Piece Ball Valves

The SAPAG 3-Piece Ball Valves are designed for versatility and durability, available in sizes from DN8 to DN200 (0.25" to 8"). Built to withstand demanding conditions, they support pressures up to 100 bar and operate within a broad temperature range of -196°C to 350°C. These valves offer multiple end connection options, including PN10/16/20/25/40/50, Flanged, BW, SW, and Tapped, ensuring adaptability across various systems. Available in models V15, V16, and RTS Series 3, they meet stringent safety and performance standards with certifications such as ATEX, Elmatec, ACS, TA-Luft, Fire Safe, and Bureau Veritas, guaranteeing reliability in critical applications.

Size Range: DN8 to DN200 (0.25" to 8")
Maximum Pressure: 100 bar
Temperature Range: -196°C to 350°C
End Connections: PN10/16/20/25/40/50, Flanged, BW, SW, & Tapped
Models: V15, V16, & RTS Series 3
Approvals: ATEX, Elmatec, ACS, TA-Luft, Fire Safe, & Bureau Veritas
Find Out More

Frequently Asked Questions

What are Sapag Ball Valves used for?

Sapag Ball Valves are used for flow control in industrial applications, including oil & gas, chemical processing, water treatment, steam systems, and general fluid handling. They provide tight shut-off, minimal pressure drop, and long-lasting reliability.

What are the main types of Sapag Ball Valves?

Sapag offers a range of ball valves, including:

  • 1-Piece Ball Valves – Compact and durable for simple flow control.
  • 2-Piece Ball Valves – Easy to maintain with a split-body design.
  • 3-Piece Ball Valves – Modular construction for quick servicing.
  • GACHOT® and RTS Series – High-performance industrial ball valves.
What materials are Sapag Ball Valves made from?

Sapag Ball Valves are manufactured from stainless steel, carbon steel, and special alloys, ensuring resistance to corrosion, extreme temperatures, and high-pressure conditions.

What is the difference between Full Bore and Reduced Bore Sapag Ball Valves?
  • Full Bore (Full Port) – Allows maximum flow with minimal restriction, ideal for applications where high flow rates are required.
  • Reduced Bore (Reduced Port) – Has a smaller internal diameter, reducing flow capacity but providing cost savings and compact sizing.
Are Sapag Ball Valves suitable for high-pressure applications?

Yes, Sapag Ball Valves are designed to handle high-pressure environments, with some models rated for extreme industrial conditions. The choice of material and sealing technology ensures safe and efficient operation under high pressure.

How do Sapag 3-Piece Ball Valves benefit industrial applications?

Sapag 3-Piece Ball Valves allow for quick disassembly of the center section, making them ideal for applications requiring frequent maintenance or cleaning without removing the entire valve from the pipeline.

Do Sapag Ball Valves work with steam applications?

Yes, many Sapag Ball Valves, especially those made from stainless steel with high-temperature seals, are suitable for steam systems and other high-temperature applications.

What industries commonly use Sapag Ball Valves?

Sapag Ball Valves are widely used in:

  • Oil & Gas
  • Chemical & Petrochemical
  • Water Treatment
  • Food & Beverage
  • Power Generation
  • Steam & High-Temperature Systems
How do I choose between a Sapag 1-Piece, 2-Piece, or 3-Piece Ball Valve?
  • 1-Piece: Best for cost-effective, low-maintenance applications where disassembly is not needed.
  • 2-Piece: Offers a balance of durability and easy servicing.
  • 3-Piece: Ideal for frequent maintenance and cleaning without pipeline removal.
Are Sapag Ball Valves manually operated or automated?

Sapag Ball Valves are available in both manual (lever-operated) and automated (pneumatic or electric actuated) versions, providing flexibility based on operational needs.

How do I ensure proper maintenance of my Sapag Ball Valve?

Regular inspection, cleaning, and lubrication of moving parts help extend the valve's lifespan. For 3-piece designs, maintenance is easier since the valve body can be removed without disturbing pipeline connections.

Where can I buy genuine Sapag Ball Valves?
Ballvalve.co.uk!
