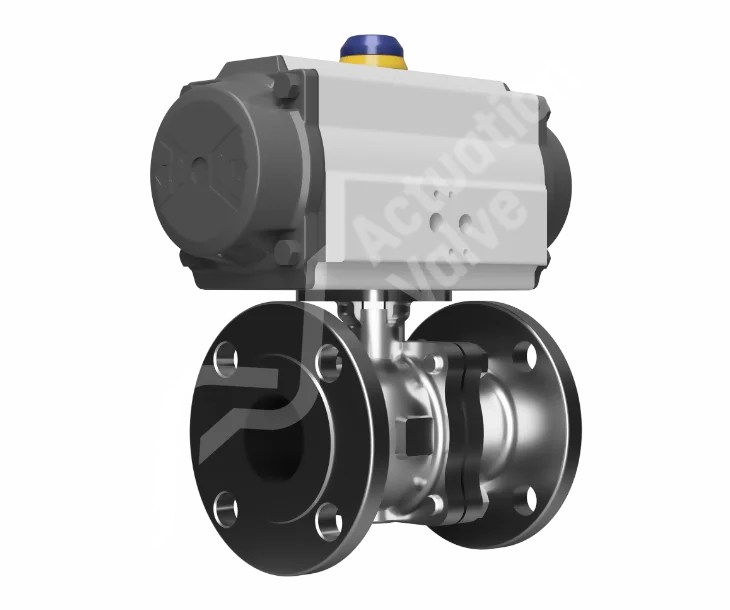

Stainless Steel ANSI 150 Air Torque Actuator Valves

The BV-L6100AT 2-piece full-bore automated ball valves are accessible in sizes from 1/2" to 8" for prompt delivery. This flanged valve body allows installation between two pipeline flanges and end-of-line service, ensuring dependable shutdown performance. The BV-L6100AT automated ball valve incorporates TFM 1600 ball seats, which are certified by WRAS & FDA for safety. The ISO 5211 mounting pad enables valve actuation without the need for a mounting bracket, streamlining assembly and testing processes immediately after placing your order.
Shop Help Me

Key Features

Key features and benefits of BV-L6100AT Actuated Ball Valves.
1

Key Features

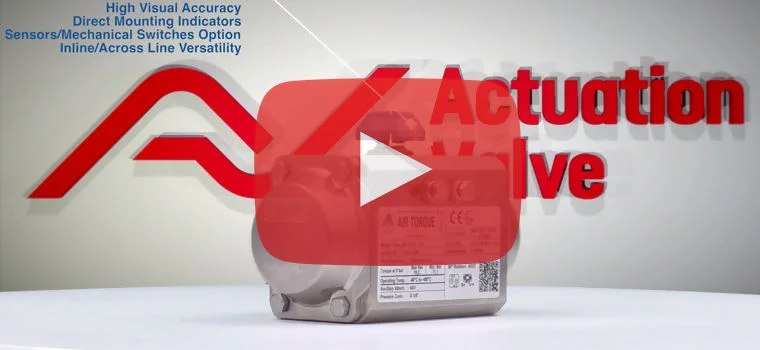

The Air Torque Actuator represents a new generation of pneumatic actuators capable of operating in the most challenging environments, all while adhering to the strictest performance standards. It's ideal for applications demanding high reliability and prolonged service life at an affordable cost.
2

Key Features

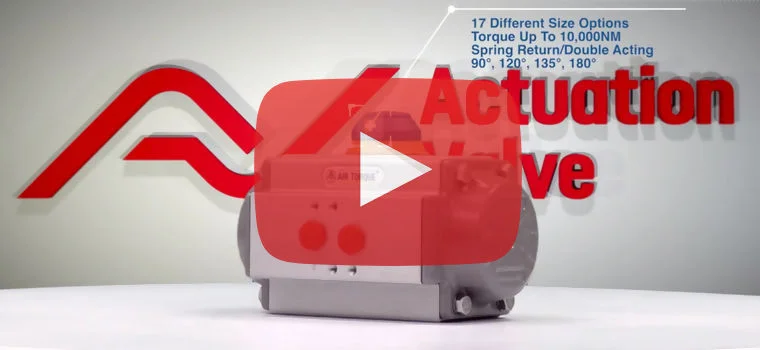

All Air Torque Pneumatic Actuators undergo continuous testing of up to 4 million cycles, guaranteeing a hassle-free experience and a "fit and forget" solution. This includes a standard manufacturer's warranty for correctly specified applications.
3

Key Features

Our selection of stainless steel ball valves has been meticulously crafted to meet the demands of applications with pressure requirements of up to 20 bar, emphasising the importance of long-lasting durability. Furthermore, we provide these ball valves in various sizes, ensuring that you'll find precisely what you require.

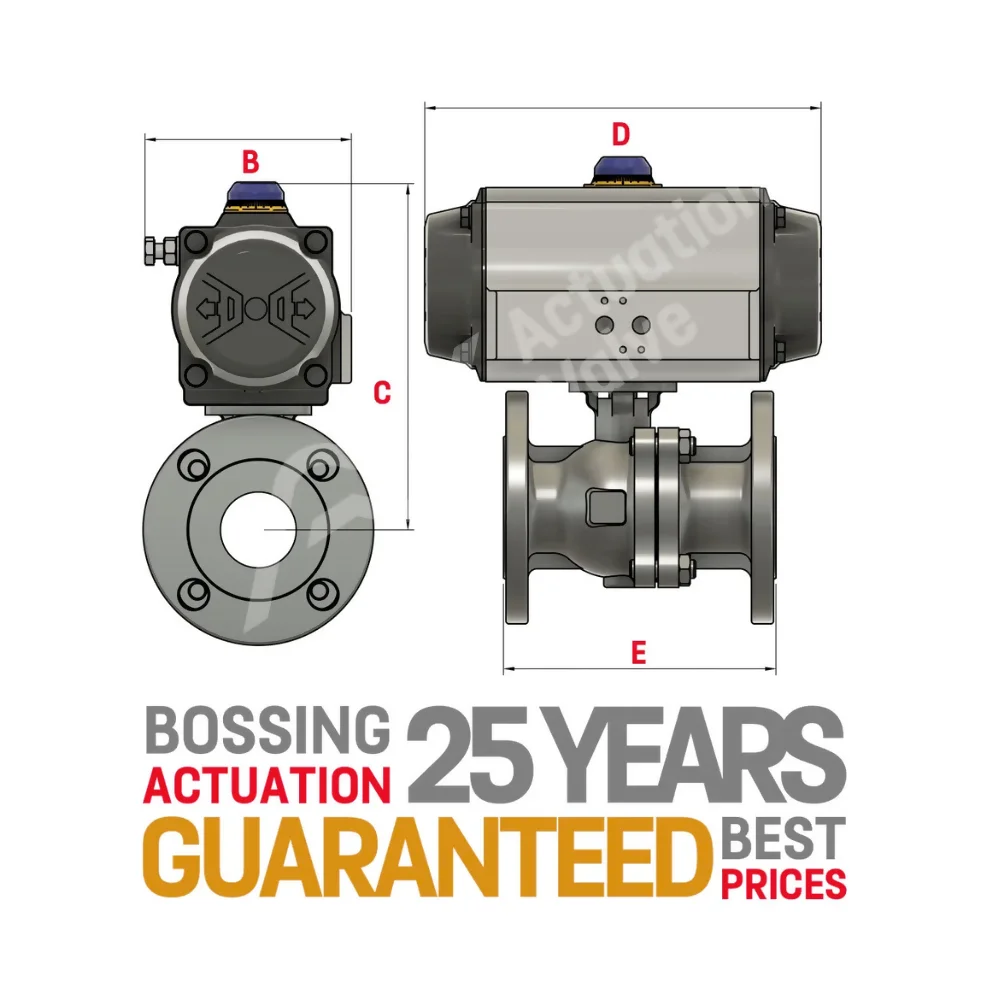

Flanged ANSI 150 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 72.00 138.00 137.00 108.00 72.00 138.00 137.00 108.00
3/4" 72.00 142.00 137.00 117.00 72.00 142.00 137.00 117.00
1" 84.50 164.00 153.50 127.00 72.00 148.00 137.00 127.00
1 1/4" 93.00 193.00 203.50 140.00 72.00 160.00 137.00 140.00
1 1/2" 93.00 198.00 203.50 165.00 93.00 198.00 203.50 165.00
2" 106.00 217.00 241.00 178.00 93.00 204.00 203.50 178.00
2 1/2" 118.50 249.00 259.00 190.00 93.00 224.00 203.50 190.00
3" 136.00 287.00 304.00 203.00 106.00 247.00 241.00 203.00
4" 166.00 347.00 394.50 229.00 136.00 315.00 304.00 229.00
5" 181.00 409.00 422.50 356.00 166.00 390.00 394.50 356.00
6" 221.50 499.00 528.00 394.00 166.00 411.00 394.50 394.00
8" 262.00 601.50 605.00 457.00 181.00 479.00 422.50 457.00
10" TBA TBA TBA TBA TBA TBA TBA TBA

Flanged ANSI 150 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT451
  • Document
DRAWINGS & SCHEMATICS

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • PDF
DRAWINGS & SCHEMATICS

AT601
  • PDF
DRAWINGS & SCHEMATICS

AT651
  • PDF
DRAWINGS & SCHEMATICS

AT701

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
