Stainless Steel ANSI 150 Hytork Actuator Ball Valves

The BV-L6100XL, featuring a two-piece full-bore design, presents a range of sizes from 1/2" to 8" available for delivery on the following day. This flanged valve body is designed for easy installation between two pipeline flanges, making it suitable for end-of-line service with dependable shut-off performance. The BV-L6100XL actuated ball valve incorporates TFM 1600 ball seats, a WRAS, and FDA-certified material. Additionally, the ISO 5211 mounting pad enables valve actuation without the need for a mounting bracket, streamlining assembly and testing procedures immediately after your order placement.
Shop Help Me

Key Features

Key features and benefits of BV-L6100XL Actuated Ball Valves.
1

Key Features

The BV-L6100 Actuated Ball Valves offer an exceptional solution for applications in harsh or corrosive environments that are not conducive to standard valves. Featuring a CF8M body and a disc crafted from high-quality stainless steel, these valves exhibit remarkable resilience, even in the most challenging conditions.
2

Key Features

The high-strength aluminum design reduces the overall material requirement while maintaining superior performance compared to similar pneumatic actuators available in the market. This lightweight unit alleviates stress on supporting structures and products.
3

Key Features

Engineered to deliver top-notch quality at the most competitive market prices, the Hytork XL product is effortless to install and operate, requiring no specialized tools during setup or use. We also provide competitive warranties for standard operational use.

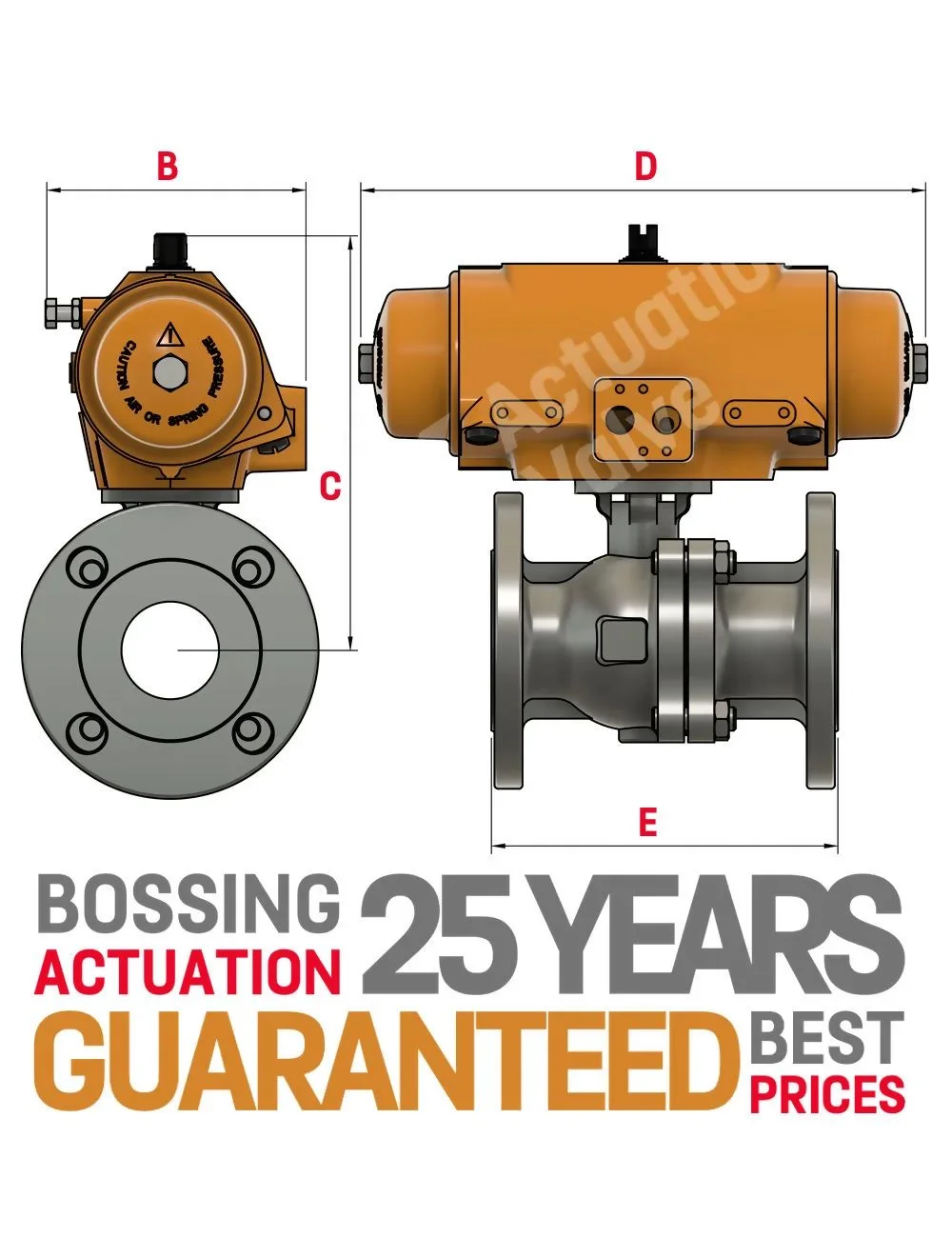

Flanged ANSI 150 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 97.00 153.50 165.00 108.00 97.00 153.50 165.00 108.00
3/4" 97.00 157.50 165.00 117.00 97.00 157.50 165.00 117.00
1" 116.50 181.40 221.80 127.00 97.00 163.50 165.00 127.00
1 1/4" 116.50 193.40 221.80 140.00 97.00 175.50 165.00 140.00
1 1/2" 116.50 198.40 221.80 165.00 116.50 198.40 221.80 165.00
2" 133.50 220.40 292.00 178.00 116.50 204.40 221.80 178.00
2 1/2" 143.10 246.05 331.60 190.00 133.50 204.40 292.00 190.00
3" 158.50 271.09 349.80 203.00 143.10 256.05 331.60 203.00
4" 174.00 309.00 462.00 229.00 158.50 299.90 349.80 229.00
5" 190.00 387.00 582.00 356.00 170.00 359.00 243.00 356.00
6" 240.00 438.00 647.00 394.00 190.00 408.00 324.00 394.00
8" 246.00 502.00 696.00 457.00 240.00 487.00 396.00 457.00

Flanged ANSI 150 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
