Stainless Steel Flanged PN16 Air Torque Actuator Valves

The BV-L6K00AT valves are flanged PN16 actuated valves that provide a simple solution for low to medium pressure needs. They come with DIN flanged connections, with a maximum pressure rating of 16 bar. These valves are available with various pneumatic actuator sizes, including US and UDA models, which allow for different setups such as fail-in-position, return to the set position, and open or closed fail-safe configurations. You can also choose between spring return and double-acting actuated valves, and there's a range of feedback options for remote position monitoring. For even more precise control, you can opt for 4-20mA electric or electro-pneumatic positioners.

Key Features

Key features and benefits of BV-L6K00AT Actuated Ball Valves.
1

Key Features

You can have complete confidence in the use of Air Torque actuators, as we uphold the highest standards for materials and inspection testing processes. Every step of this process occurs at our factory in Bergamo, adhering to stringent procedures in line with ISO 9001.
2

Key Features

The Air Torque range of pneumatic actuators is highly versatile and straightforward to install. Their lightweight design eliminates the need for heavy-duty mounting points, allowing you to place them anywhere on your production line without disrupting product flow or incurring unnecessary costs.
3

Key Features

The BV-L6K00 stainless steel ball valves are suitable for applications involving oil-based paints and coatings, such as automotive refinishing. They are entirely free of silicone, ensuring they do not introduce contamination or leave behind residues that could adversely affect your finish over time.

Flanged ANSI 150 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 72.00 138.00 137.00 115.00 72.00 137.00 137.00 115.00
3/4" 72.00 142.00 137.00 120.00 72.00 142.00 137.00 120.00
1" 84.50 164.00 153.50 125.00 72.00 148.00 137.00 125.00
1 1/4" 93.00 193.00 203.50 130.00 72.00 160.00 137.00 130.00
1 1/2" 93.00 198.00 203.50 140.00 93.00 198.00 203.50 140.00
2" 106.00 217.00 241.00 150.00 93.00 207.00 203.50 150.00
2 1/2" 118.50 249.00 259.00 170.00 93.00 224.00 203.50 170.00
3" 136.00 287.00 304.00 180.00 106.00 252.00 241.00 180.00
4" 166.00 347.00 394.50 190.00 136.00 315.00 304.00 190.00
5" 181.00 409.00 422.50 325.00 166.00 390.00 394.50 325.00
6" 221.50 499.00 528.00 350.00 166.00 411.00 394.50 350.00
8" 262.00 601.50 605.00 400.00 181.00 479.00 422.50 400.00
10" TBA TBA TBA TBA TBA TBA TBA TBA

Flanged ANSI 150 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

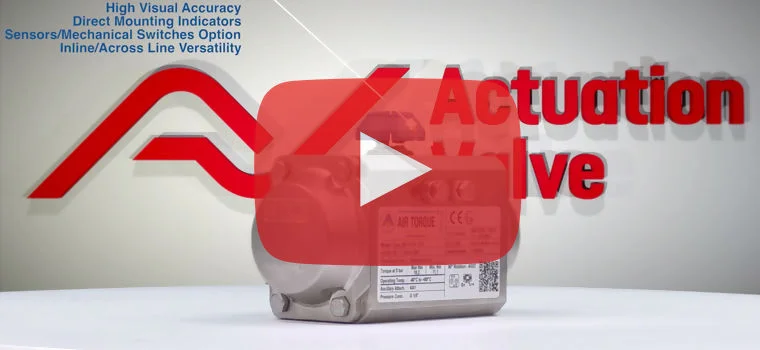

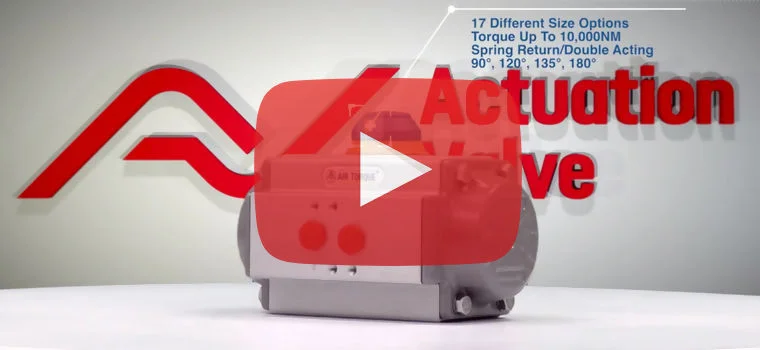

Air Torque Actuator Videos

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
