Electric PN16 Stainless Steel Koei Unic Actuator Valves

The BV-L6K00EK flanged PN16 actuated valves provide a dependable quarter-turn solution for low to medium pressure needs, featuring DIN flanged connections (up to 16 bar maximum). They come with a variety of options, such as an internal heater, protective coatings, and a battery backup for default position return and fail-safe in either the open or closed position. These electrically actuated valves are also available with several feedback mechanisms for remote monitoring of their position. For enhanced control precision, 4-20mA electric Koei Nucom models are also available.
Shop Help Me

Key Features

Key features and benefits of BV-L6K00EK Actuated Ball Valves.
1

Key Features

At our facility, we meticulously assemble and test each product to ensure supreme quality and longevity. You'll receive a comprehensive two-page report with your product, covering every operational detail, including the timing of opening and closing, as well as pressure levels.
2

Key Features

Koei UNIC has pioneered a novel worm gear drive, which boasts ease of design and production. This gear drive excels in load-bearing capacity, rigidity, minimal backlash, and effective power transmission, all offered at an economically viable price.
3

Key Features

The Koei UNIC motor is a cost-effective choice over its lifespan compared to standard electric motors. Distinguished for its efficiency, this motor stands out in its category. Its advanced brushless design not only boosts performance but also reduces the need for expensive maintenance.

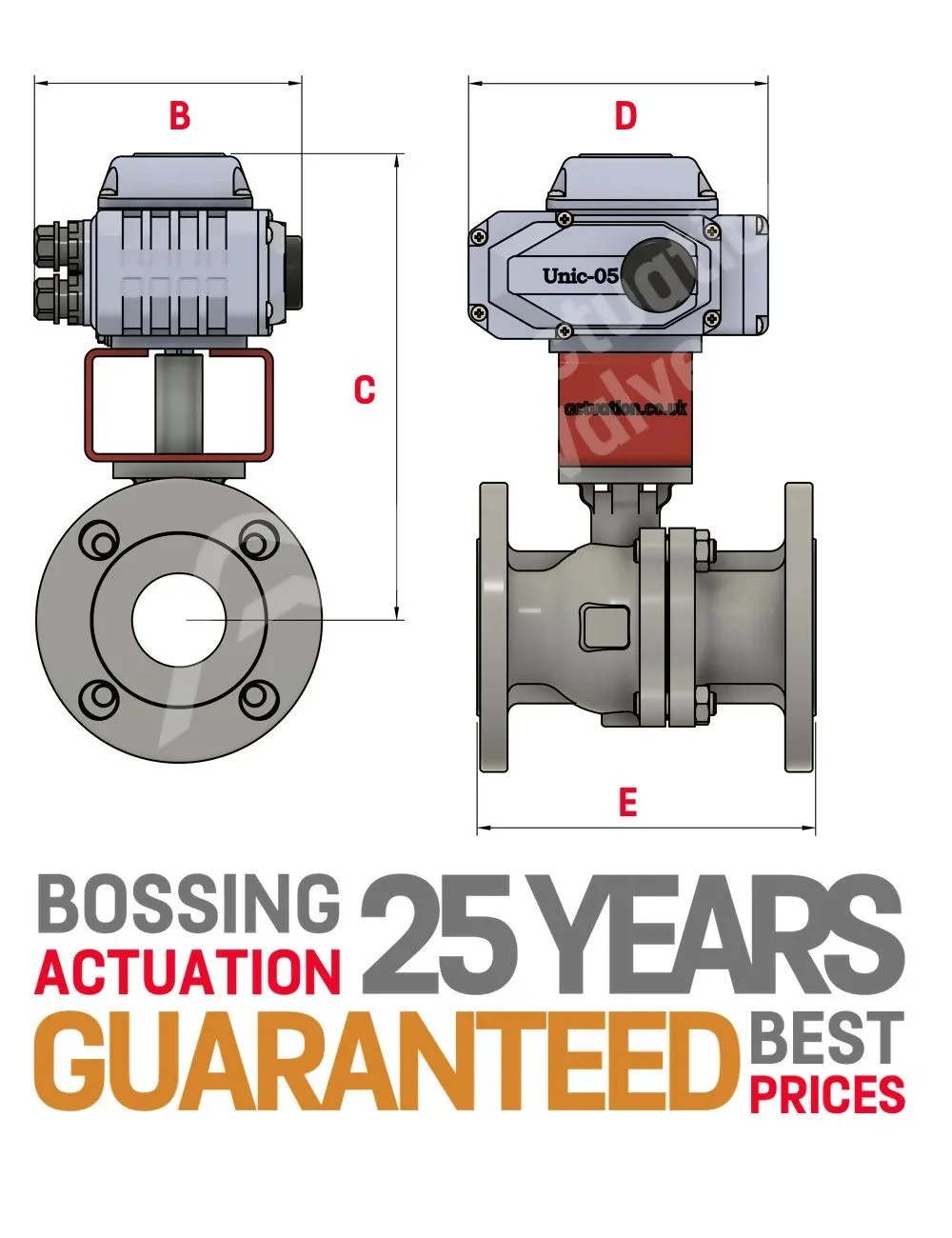

Flanged PN16 Technical Stuff

B C D E Model
1/2" 145.00 224.00 159.00 115.00 UNIC 05
3/4" 145.00 229.00 159.00 120.00 UNIC 05
1" 145.00 235.00 159.00 125.00 UNIC 05
1 1/4" 145.00 247.00 159.00 130.00 UNIC 05
1 1/2" 145.00 252.00 159.00 140.00 UNIC 05
2" 145.00 261.00 159.00 150.00 UNIC 05
2 1/2" 155.00 304.00 208.00 170.00 UNIC 10
3" 155.00 314.00 208.00 180.00 UNIC 10
4" 187.00 350.00 257.00 190.00 UNIC 20
5" 187.00 393.00 257.00 325.00 UNIC 40
6" 272.00 440.00 381.00 350.00 UNIC 60
8" 272.00 489.00 381.00 400.00 UNIC 60
10" TBA TBA TBA TBA TBA

Flanged PN16 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
Brochures

Koei UNIC
  • PDF
Certificates & Approvals

CE Declaration
  • PDF
Certificates & Approvals

Nema UL
  • PDF
Operations

AC Actuators
  • PDF
Operations

DC Actuators
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Stainless Steel DIN PN16 Koei UNIC Electric Actuated Ball Valves
