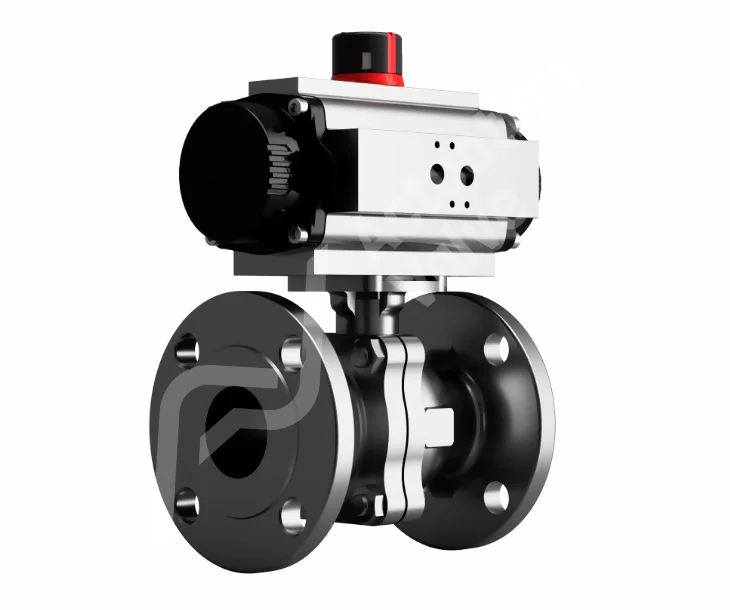

The BV-L6N00 Actuated Ball Valves are a great choice for use in tough or corrosive conditions where standard valves won't work. These valves have a body and disc made of high-quality stainless steel (CF8M), ensuring durability in even the harshest conditions. Our team has decades of experience in complex automation systems, allowing us to deliver top-notch products quickly and affordably. Just let us know your requirements, and we'll handle the rest. The lightweight aluminium design enhances performance while reducing material usage, relieving stress on support structures and products.

Shop Help Me

Key features and benefits of BV-L6N00AC Actuated Ball Valves.

Key Features

Our TFM 1600 PTFE seats, which have received WRAS approval, guarantee secure operation. Additionally, our materials are FDA-approved, offering assurance that your products will be handled safely without compromising quality or performance when used correctly.

Key Features

The valve boasts a direct mount actuation pad for swift and effortless automation. This enables us to expedite product delivery to you, reduce the overall package size, and, most importantly, decrease both weight and cost.

Key Features

Position indicators for the Actreg actuator include the option to directly mount Puk sensors like P&F, IFM, and other manufacturers, depending on the end user's approved vendor lists (AVLs). We also have position monitoring switch boxes and sensors in stock for swift assembly.

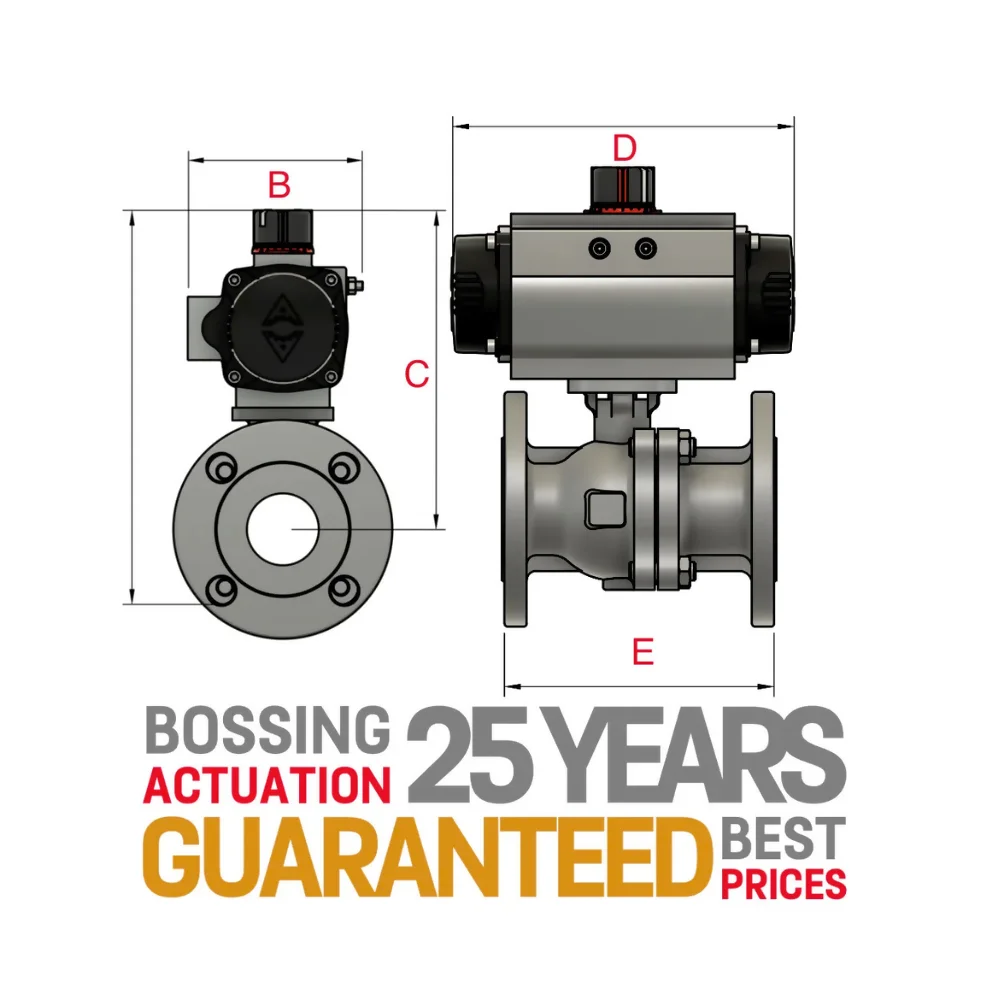

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	81.00	145.00	163.00	108.00	72.00	138.00	145.00	108.00
3/4"	81.00	149.00	163.00	117.00	72.00	142.00	145.00	117.00
1"	96.00	174.00	195.50	127.00	72.00	148.00	158.00	127.00
1 1/4"	96.00	186.00	195.50	140.00	72.00	160.00	158.00	140.00
1 1/2"	116.00	213.00	217.00	165.00	93.00	198.00	177.00	165.00
2"	116.00	219.00	217.00	178.00	93.00	204.00	177.00	178.00
2 1/2"	127.00	249.00	258.00	190.00	93.00	224.00	196.00	190.00
3"	140.00	277.00	299.00	203.00	106.00	247.00	225.00	203.00
4"	157.00	322.00	348.50	229.00	136.00	315.00	273.00	229.00
5"	197.00	404.00	473.50	356.00	166.00	390.00	372.00	356.00
6"	218.00	453.00	560.00	394.00	166.00	411.00	439.00	394.00
8"	248.00	533.00	601.00	457.00	181.00	479.00	461.00	457.00

Every actuated valve assembly undergoes thorough testing and calibration by our skilled team of technical engineers before being packed and shipped. This ensures that upon arrival at your location, the assemblies are installation-ready, allowing for swift resumption of your production operations.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	DIN3357 1,2,EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
