Stainless Steel High Pressure Air Torque Actuator Valves

The BV-L6N00AT DIN PN40 actuated ball valves offer high-pressure, full-flow operation with a bore of up to 6 inches. These valves can be installed between two different flanges in a pipeline. They have received approvals from DNV, SIL 2, Lloyds Register, and NACE MR-0175. Additional options for the ball valve include a drilled relief hole upstream and in the cavity of the ball, as well as a high-temperature spindle extension for insulation and steam actuation. Express shipping is available for stock components with delivery within 24-48 hours.
Shop Help Me

Key Features

Key features and benefits of BV-L6N00AT Actuated Ball Valves.
1

Key Features

When you transition from traditional ball valves to our low-torque BV-L6N00 Ball Valve, you'll not only reduce installation and maintenance expenses but also enhance overall reliability. Our product is crafted with the end-user in consideration, and we possess a deep understanding of what proves most effective for industrial automation.
2

Key Features

The Air Torque Actuator represents a new generation of pneumatic actuators, suitable for deployment in the most challenging environments, all while adhering to the strictest performance standards. It's an excellent choice for applications that demand high reliability and a prolonged service life at an affordable cost.
3

Key Features

You have various options for indicators with the Air Torque actuator. These include the availability of direct mounting PUK sensors like P&F, IFM, and other manufacturers, depending on end-user approved vendor lists (AVLs). Additionally, mechanical limit switch boxes are readily available from stock for rapid assembly.

Flanged ANSI 150 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 72.00 138.00 137.00 115.00 72.00 138.00 137.00 115.00
3/4" 72.00 142.00 137.00 120.00 72.00 142.00 137.00 120.00
1" 84.50 164.00 153.50 125.00 72.00 148.00 137.00 125.00
1 1/4" 93.00 193.00 203.50 130.00 72.00 160.00 137.00 130.00
1 1/2" 93.00 198.00 203.50 140.00 93.00 198.00 203.50 140.00
2" 106.00 217.00 241.00 150.00 93.00 204.00 203.50 150.00
2 1/2" 118.50 249.00 259.00 170.00 93.00 224.00 203.50 170.00
3" 136.00 287.00 304.00 180.00 106.00 247.00 241.00 180.00
4" 166.00 347.00 394.50 190.00 136.00 315.00 304.00 190.00
5" 181.00 409.00 422.50 325.00 166.00 390.00 394.50 325.00
6" 221.50 499.00 528.00 350.00 166.00 411.00 394.50 350.00
8" 262.00 601.50 605.00 400.00 181.00 479.00 422.50 400.00
10" TBA TBA TBA TBA TBA TBA TBA TBA

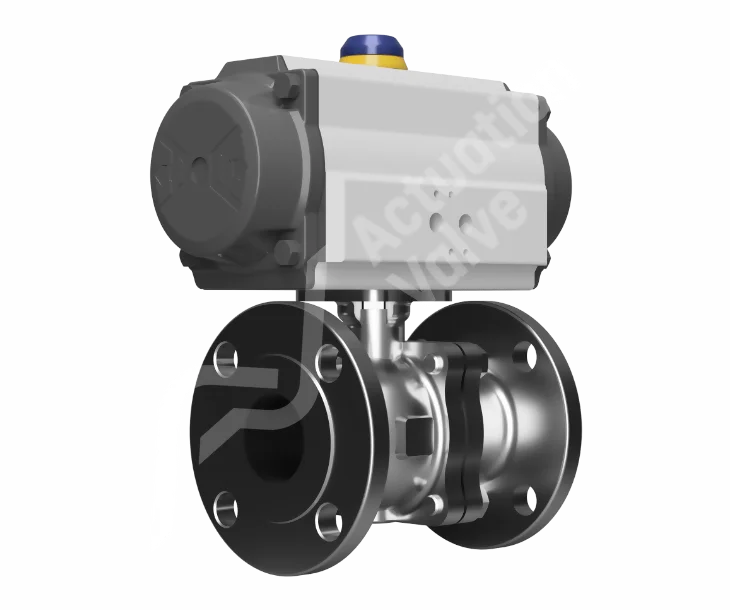

Flanged ANSI 150 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT451
  • Document
DRAWINGS & SCHEMATICS

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • PDF
DRAWINGS & SCHEMATICS

AT601
  • PDF
DRAWINGS & SCHEMATICS

AT651
  • PDF
DRAWINGS & SCHEMATICS

AT701

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2,EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
BSP Ends: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SAFETY MANUAL
  • PDF
CERTIFICATES & APPROVALS

BUREAU VERITAS

Air Torque Actuator Videos

Aluminium
Stainless Steel
